What is a car radiator

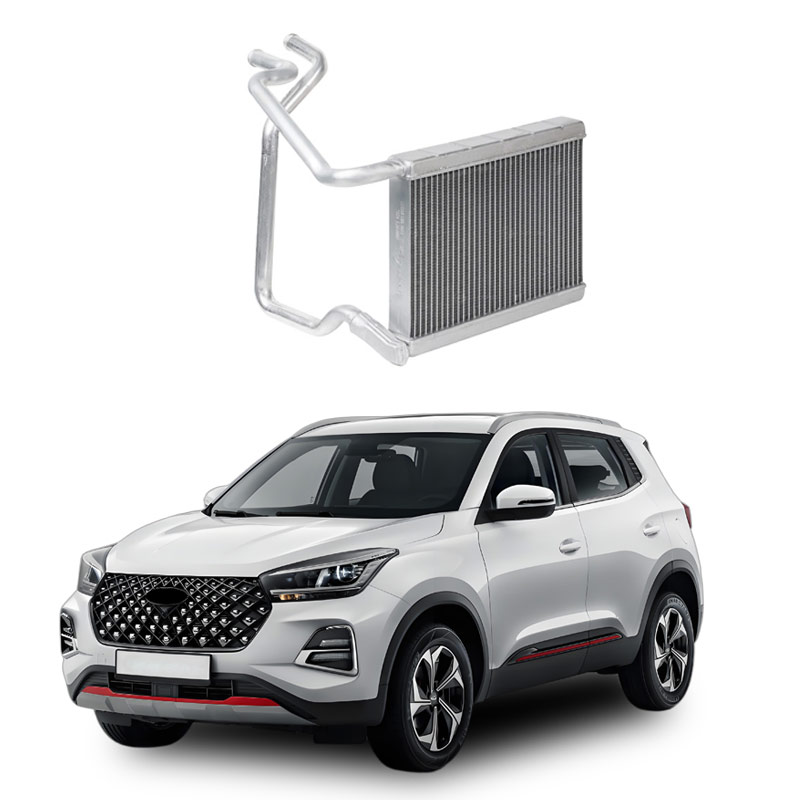

The radiator of the car heater is the core component of the car heater system , and its core function is to convert the heat in the engine coolant into warm air available in the car through heat exchange. The following is a detailed analysis of the warm air water tank
Youdaoplaceholder0 Definition and function
Youdaoplaceholder0 Core function : The heat in the engine coolant is transferred to the metal surface of the radiator through water circulation, and then the heated air is sent into the vehicle by the blower to achieve winter heating or defrosting functions.
Youdaoplaceholder0 Structural features : Usually made of metals such as aluminum and copper (some are plastic), it is equipped with complex water channels and air channels inside to enhance heat exchange efficiency.
Youdaoplaceholder0 working principle
Youdaoplaceholder0 Heat transfer : The coolant heats up when the engine is running and releases heat to the metal surface as it flows through the water channels of the radiator. Subsequently, when external air or the circulating air inside the vehicle flows over the metal surface, it is heated.
Youdaoplaceholder0 start-up delay : As the coolant needs to reach the working temperature (approximately 80-90℃), the engine may not immediately generate warm air when it is just started (except for some models equipped with electric auxiliary heating function).
Youdaoplaceholder0 Common Faults and maintenance
Youdaoplaceholder0 Leakage and blockage : Common problems include leakage caused by aging water tanks or the use of poor-quality coolant, as well as scale blockage due to long-term failure to replace the coolant.
Youdaoplaceholder0 Maintenance suggestions :
Replace the coolant and clean the waterways every 2 to 3 years.
Regularly check the coolant level and the sealing of the pipes.
Regularly clean the scale with a dedicated cleaner or vinegar water.
The radiator of a car's heater is the core component of the heater system. Its main function is to convert the heat in the engine coolant into hot air, providing warm air inside the vehicle and removing frost and fog from the car Windows.
Specific functions
Youdaoplaceholder0 provides warm air
The heat is transferred to the metal surface of the warm air radiator through the circulating coolant. When the external air or the circulating air inside the vehicle passes through, it is heated and finally sent into the vehicle through the ventilation system to increase the temperature.
Youdaoplaceholder0 defrosting function
In winter or in environments with high humidity, the warm air tank can heat the air, preventing frost or fog from forming on the car Windows and affecting the view.
Q&A
Youdaoplaceholder0 water leakage : It may lead to a reduction in coolant, the heater not being warm enough, and even affect the engine's heat dissipation.
Youdaoplaceholder0 blockage : The circulation is blocked, resulting in a decrease in the efficiency of the warm air. The coolant needs to be replaced regularly and the water tank cleaned.
The main manifestations of faults in car heater water tanks are leakage, blockage and abnormal working conditions. The specific symptoms and countermeasures are as follows:
Leakage
A small amount of water leakage often occurs at the exhaust port of the water pump. In severe cases, leakage from the chassis may occur. If the color of the water stain is found to be abnormal (such as pink/green), the cooling system needs to be inspected.
Blockage
Blockage can cause the warm air to be cold, the water temperature gauge to be abnormal (persistently below 80℃), or the temperature difference in the warm air pipe to be too large (exceeding 30℃). The deterioration of antifreeze can be judged by observing whether the coolant is turbid and yellow or by smelling an acidic odor.
Abnormal operating conditions
Youdaoplaceholder0 Abnormal water temperature : The water temperature gauge keeps shaking in the low-temperature zone, which may be due to scale buildup inside the warm air water tank, causing poor heat dissipation.
Youdaoplaceholder0 Unstable warm air : When driving at high speed, the warm air fluctuates between hot and cold. This might be due to the deterioration of the antifreeze causing blockage.
Youdaoplaceholder0 Engine abnormality : Failure of the water pump bearing can cause abnormal noise and affect the stability of vehicle speed.
Maintenance suggestions
Youdaoplaceholder0 Regularly check the coolant : replace it every 2-3 years and avoid using inferior products.
Youdaoplaceholder0 Clean the water tank : Regularly clean the sediment in the waterways to prevent blockage.
Youdaoplaceholder0 Observe the temperature difference of the water pipe : If the temperature difference of the warm air water pipe is too large, it needs to be repaired in time.
