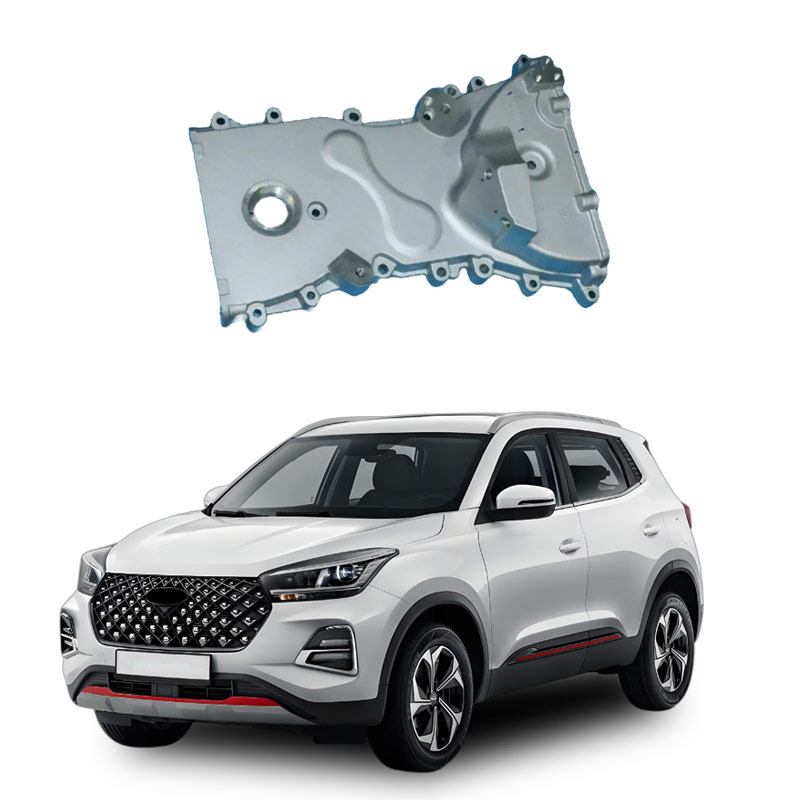

What is the cover of the timing sprocket compartment of a car
The cover of the timing sprocket chamber of a car is a key protective component of the engine timing system. Its main function is to isolate the timing sprocket from other components, prevent contaminants such as oil, water and mud from entering, and reduce operating noise at the same time.
Structure and Function

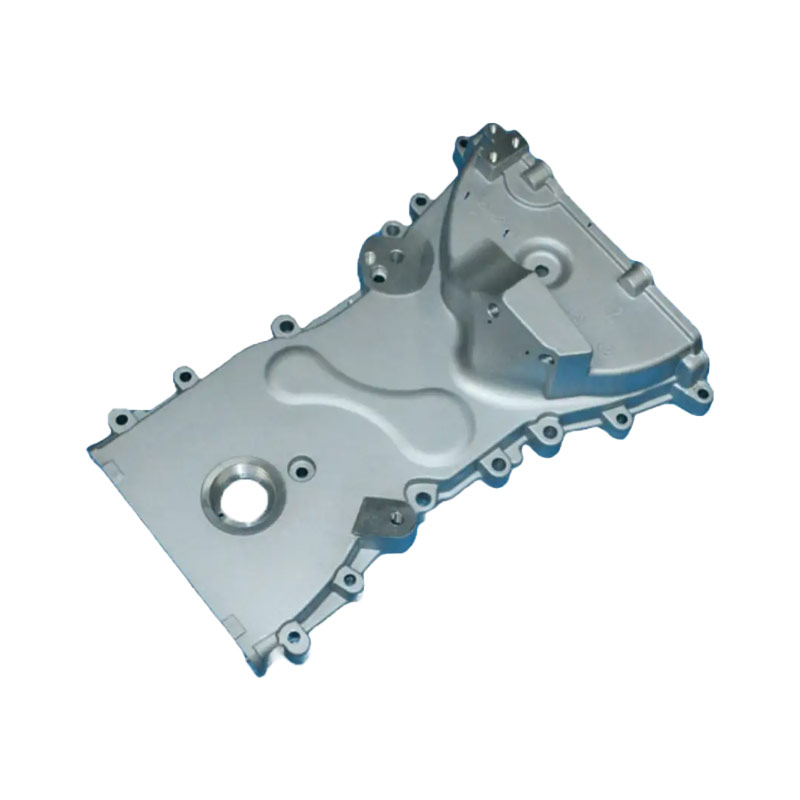

It is usually cast from aluminum alloy, fixed on the side of the engine and closely connected to the cylinder block, forming a closed space to protect the timing sprocket, pulley and other transmission components. Its sealed design can isolate external contaminants, ensuring that the timing system operates in a clean environment.
Maintenance suggestions
If oil leakage is found, it should be judged in combination with the actual situation
The oil stain range is small and there is no diffusion, so it can be observed temporarily.
If the oil stain is black or there is a burning smell, or if the engine makes abnormal noises, timely maintenance is required.
The main functions of the automotive timing sprocket chamber cover (i.e., the timing cover) include:
Sealed protection
It forms a closed space with the front end face of the engine block, isolating the timing chain, sprocket and other transmission components from the outside world, preventing foreign substances such as oil, water and mud from entering, and at the same time avoiding interference from other components to the timing system.
Noise reduction and shock absorption
By reducing the transmission of noise and vibration during engine operation through a confined space, it plays a role in sound insulation and buffering.
Structural support
It is fixed on the side of the engine, connecting the cylinder head cover and the oil pan, and plays an auxiliary supporting role for the engine.
The faults of the timing sprocket chamber cover mainly manifest as oil leakage, abnormal noise and decline in engine performance, etc., which require timely maintenance.
Common fault manifestations
Youdaoplaceholder0 Oil leakage : Aging of seals, loose screws or clogged PCV valves can cause oil leakage, which may lead to abnormal noise and shorten the engine's lifespan.
Youdaoplaceholder0 Abnormal noise : Deformation of the sprocket chamber cover or failure of the seal may produce metal friction sounds or knocking sounds.
Youdaoplaceholder0 Engine performance decline : Weakened power output, weak acceleration, and in severe cases, it may lead to difficulty in starting or the warning light coming on.
Maintenance suggestions
Youdaoplaceholder0 Slight oil leakage : Replace the gasket or clean the PCV valve and tighten the screws.
Youdaoplaceholder0 Severe deformation or damage : The aluminum alloy cover (such as the original factory style) needs to be replaced to avoid the risk of detachment due to high temperature.
Youdaoplaceholder0 Accessory selection : Give priority to using high-temperature resistant and anti-aging original factory specification seals.
It is recommended to carry out timely maintenance upon discovering any abnormalities to prevent further damage to the timing sprocket due to insufficient lubrication.
The working principle of the automotive timing sprocket chamber cover mainly involves the following two aspects:
Sealing and Protection
The timing sprocket chamber cover isolates the timing system inside the engine (such as timing chains, sprockets, etc.) through a sealed design, preventing impurities such as oil, water, and mud from entering and avoiding contamination of key components. At the same time, it plays a certain protective role, preventing other foreign objects from hitting the timing system.
Structural support
This component fixes the engine to the car through the threaded holes of the bracket, ensuring the relative position of the timing system to other components is stable. Its structural accuracy directly affects the performance and stability of the engine, and it is usually made of high-strength materials such as aluminum alloy.
The cover of the timing sprocket chamber is damaged and needs to be repaired in time. It mainly involves the replacement of sealing parts or the repair of structural components. The specific treatment method should be determined according to the degree of damage:
Common causes of damage
Youdaoplaceholder0 Seal aging : The gasket or oil seal of the timing cover loses its sealing property due to rubber aging, resulting in oil leakage.
Youdaoplaceholder0 Loose screws or installation issues : Loose fixing screws or improper installation of the cover cause oil leakage.
Youdaoplaceholder0 PCV valve blockage : The blockage of the crankcase ventilation valve causes abnormal system pressure, increasing the risk of leakage.
Maintenance suggestions
Risk Warning
If oil leakage is not dealt with in time, it may cause the timing belt/chain to slip, resulting in abnormal engine noise, reduced power and even difficulty in starting.
