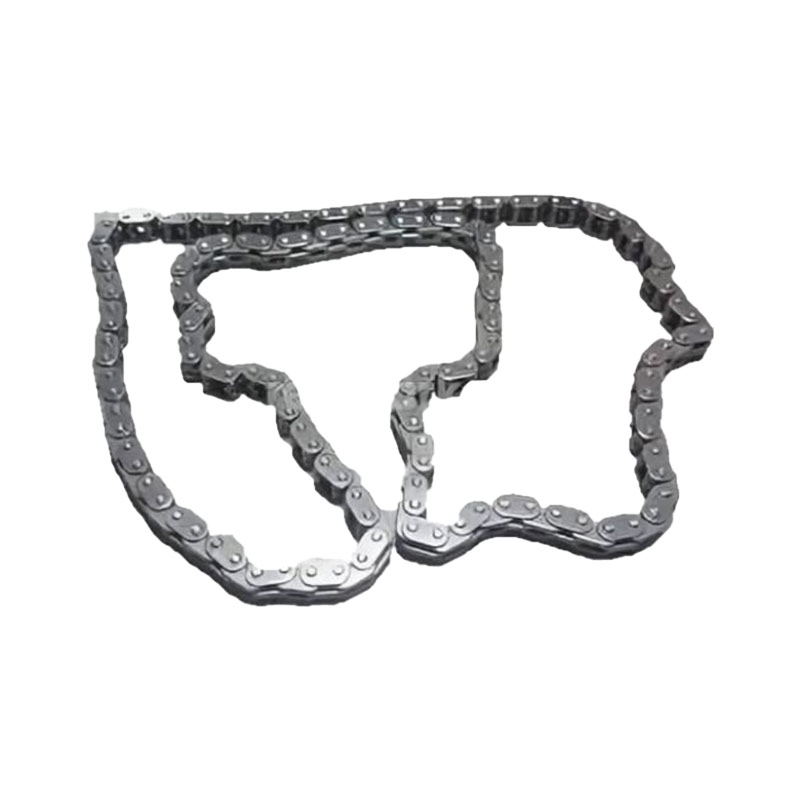

What is a car timing chain assembly
The automotive timing chain assembly is a key component that drives the engine's valve train. It is made of high-strength metal and connects the crankshaft and camshaft through a chain to keep them running synchronously, ensuring that the intake and exhaust valves open or close at the right time, allowing the engine cylinders to intake and exhaust normally.
Core function
The timing chain assembly is directly related to the working efficiency and stability of the engine. Its precise transmission ratio ensures that the opening and closing of the valves are synchronized with the movement of the piston, avoiding serious faults such as valve impact on the piston.
Structural features
It is usually made of alloy steel and features high-temperature resistance and wear resistance. Some models use roller chains or toothed chains to reduce noise.
Maintenance features
Compared with timing belts, timing chains are maintenance-free throughout their lifetime, with a lifespan typically reaching 300,000 to 500,000 kilometers. However, regular checks for wear and looseness are necessary.
The automotive timing chain assembly is a core component of the engine's valve train. Its main function is to precisely control the opening and closing timing of the intake and exhaust valves, ensuring the normal intake and exhaust of the cylinders, thereby maintaining the smoothness of the engine's operation and power output.
Core function
The rotation of the crankshaft and camshaft is precisely synchronized through the chain drive system (including gears, tensioning devices, etc.), strictly driving the opening and closing of the valves according to the preset phase Angle, and forming a perfect coordination with the movement of the piston. If there is a deviation in the timing of valve opening or closing, it may lead to serious faults such as power jolts and valve impact on the piston.
Structural features
The chain is made of high-strength alloy steel and is equipped with a hydraulic tensioning system to automatically adjust the tightness, reducing the risk of tooth skipping. Wear-resistant composite material guide rails reduce friction losses and ensure long-term stable operation. Some models (such as the EA888 engine) also include auxiliary components like balance shaft chains and oil pump chains, which optimize engine smoothness and reduce operating noise.
Maintenance requirements
Regular inspections are required (such as observing cracks, wear, abnormal noises, etc. during each maintenance). The replacement cycle varies depending on the model and is usually lifetime maintenance-free or set according to the manufacturer's manual (for example, for Volkswagen brands, replacement is necessary if the error exceeds ±3°). When replacing, it is recommended to upgrade the improved parts simultaneously and monitor the status of the oil pump.
Faults in the timing chain assembly usually lead to the following symptoms:
Abnormal noise from the engine
When starting cold, there may be a metallic friction sound like "quack quack" or "dada dada", and the sound may disappear after the car is warmed up. When driving at high speed, stepping on the accelerator may be accompanied by an intensified metallic friction sound.
Insufficient power
When accelerating, the power output weakens, the acceleration is not smooth, and even shaking and stalling occur.
Difficulty in starting
There may be situations where it fails to start or cannot maintain operation after starting.
Increased fuel consumption
The decline in combustion efficiency leads to a significant increase in fuel consumption, and the consumption of engine oil will also rise.
Abnormal exhaust emissions
The discharge of pollutants has exceeded the standard, and the amount of black and odorous exhaust gas has increased.
Inspection method
Youdaoplaceholder0 Listen to the sound : pay attention to the metal friction sound during cold start;
Youdaoplaceholder0 Measure the elongation of the chain : Use a spring scale to detect. If it exceeds the specified length, it needs to be replaced.
Youdaoplaceholder0 Check the degree of wear : Use a vernier caliper to measure the wear of the sprocket/camshaft. If it exceeds the limit, it needs to be replaced.
If the above symptoms occur, it is recommended to have the engine inspected and repaired in a timely manner to avoid serious damage to the engine caused by a failure in the timing chain.
The timing chain assembly is damaged and needs to be repaired immediately; otherwise, it may cause engine damage or even prevent the vehicle from starting. The following are the key information and countermeasures:
Consequences of damage
Damage to the timing chain assembly can lead to abnormal opening and closing times of the engine valves, causing problems such as decreased power output, weak acceleration, and increased fuel consumption. In severe cases, it may result in the engine being unable to start or even being directly damaged.
Maintenance suggestions
Professional personnel are required to inspect and replace the assembly (including chains, sprockets, tensioners and other components). After maintenance, a comprehensive debugging should be carried out to ensure the accuracy of valve timing. The replacement cycle is usually 150,000 to 200,000 kilometers, but it needs to be adjusted according to the actual wear condition.
Common signs
Youdaoplaceholder0 Abnormal noise : A "clucking" friction sound or abnormal vibration occurs during engine operation.
Youdaoplaceholder0 Power decline : poor acceleration, increased fuel consumption.
Youdaoplaceholder0 Difficulty in starting : The valve cannot open normally, which may result in failure to start.
Youdaoplaceholder0 Abnormal oil consumption : It may be accompanied by a reduction in oil quantity or deterioration in oil quality.
It is recommended to contact a professional maintenance institution immediately upon discovering the above symptoms to avoid self-disassembly which may cause secondary damage.
