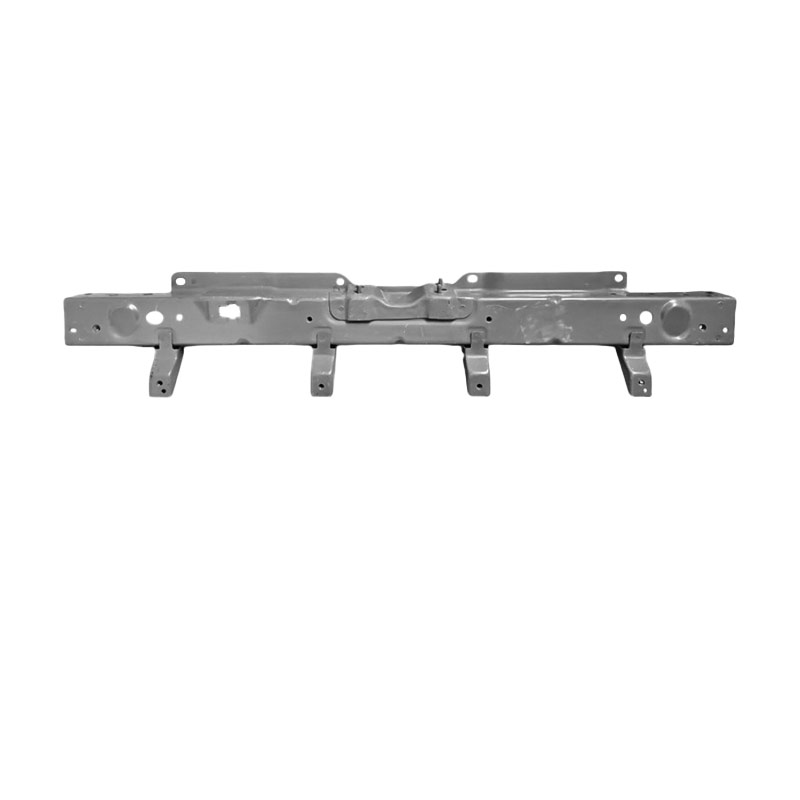

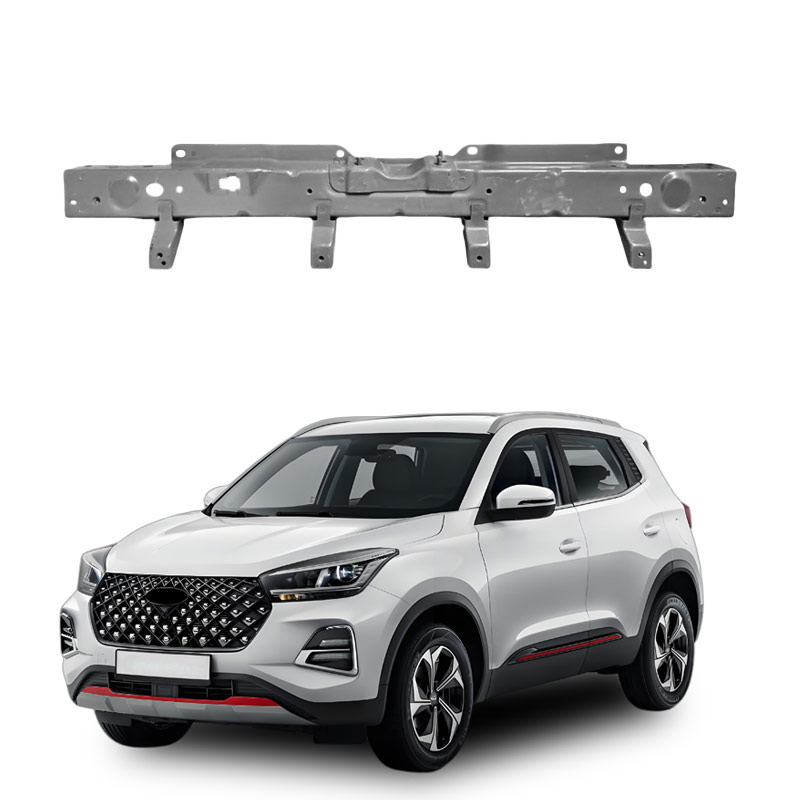

What is the upper crossbeam of a car radiator
The upper crossbeam of the car radiator is an important component of the radiator frame, mainly serving to support and fix the radiator. At the same time, it has a crucial impact on the overall structural strength and spatial layout of the engine compartment. The following is the specific explanation:
Structural characteristics
The upper crossbeam of the water tank usually forms a support system together with the bracket structure of the water tank frame, which is commonly found in non-detachable water tank frames. It is made of metal and connected to the longitudinal beams or anti-collision beams of the vehicle body through spot welding or bolts. Due to the special engine layout of some models, the radiator frame may adopt an incomplete gantry structure. In this case, the definition of the upper crossbeam needs to be designed in combination with the specific model.
Function and role
Youdaoplaceholder0 Support and fixation : Directly support the water tank, condenser and other components to ensure the stable operation of the heat dissipation system.
Youdaoplaceholder0 Body structure strengthening : In some models, the upper crossbeam is connected to the longitudinal beam of the body by spot welding and participates in the rigid support of the body.
Youdaoplaceholder0 Space optimization : Some designs expand the engine compartment space through an extension plate structure, facilitating the disassembly and assembly of components such as the battery.
Material and connection method
The mainstream materials are metal (steel plates) or a combination of metal and resin. Some high-end models use resin material frames. The connection methods include spot welding, bolt fixation, etc., which depend on the vehicle model design.
The main functions of the crossbeam on the car radiator include enhancing installation stability, simplifying the structure, reducing weight and optimizing the layout of the front cabin space.
Structural optimization
By omitting the support ribs and connection points of the traditional water tank crossbeam and wheel cover reinforcement plate, the installation stability is directly enhanced, ensuring both strength and simplifying the structure. This design can reduce the number of components, achieve the goal of lightweighting, and at the same time free up more space in the front cabin for the installation of other parts.
Supporting function
The upper crossbeam of the water tank needs to withstand the longitudinal load of the vehicle and the impact of the wheels. It is connected to key components (such as the engine compartment frame, longitudinal beams of the vehicle body, etc.) through riveting to form a closed cavity to enhance the supporting stiffness. For instance, the radiator crossbeam of the Haima S5 model needs to support the front bumper installation point and the engine hood buffer block. The installation accuracy directly affects the appearance quality.
Safety
The radiator beam extension plate of some models adopts an active design (such as bolt connection), which not only enhances convenience but also strengthens the structural strength. This design can avoid the maintenance problems caused by welding dead and extend the service life.
The fault of the upper crossbeam of the car radiator needs to be determined based on the specific situation whether it requires repair.
Fault impact
The upper crossbeam of the water tank mainly supports the water tank and the condenser. If it is damaged, it may cause abnormal cooling system and lead to engine overheating. It also affects the coordination of the front face appearance and the position of components such as the brake lines.
Maintenance suggestions
Youdaoplaceholder0 Minor cracks : If the crack length is less than 5 centimeters and it is not a load-bearing part, repair can be considered; Otherwise, replace
Youdaoplaceholder0 Structural deformation or severe corrosion : must be replaced to ensure the stability of the cooling system and driving safety
Youdaoplaceholder0 Inspection of related components : During maintenance, it is necessary to check whether the water tank and condenser have shifted, as well as whether the brake lines have been compressed
It is recommended to contact a professional maintenance institution as soon as possible for assessment to avoid engine damage or safety hazards caused by abnormal cooling system.
Whether the crossbeam on the car radiator needs to be replaced depends on the specific situation if it is damaged.
Minor injury treatment
If the crossbeam only shows slight deformation, small scratches or cracks (less than 5 centimeters in length and not at the stressed part), it can be repaired and monitoring should be strengthened.
Severe damage treatment
If there are obvious structural problems, large cracks or damage to the stressed parts, it must be replaced. As the upper crossbeam of the water tank is a key structure that supports components such as the water tank and condenser, damage to it may cause component displacement, cooling system failure, and even pose a risk of engine overheating.
Handling suggestions
Youdaoplaceholder0 Stop immediately for inspection : When the crossbeam is found to be broken or severely deformed, stop immediately and check whether the cooling system is leaking.
Youdaoplaceholder0 Professional maintenance : It is recommended to replace the original specification parts at a regular repair shop to ensure a firm installation.
Youdaoplaceholder0 Regular inspection : Special vehicle models (such as Volkswagen, Audi, Toyota, etc.) need to strengthen daily inspections to avoid secondary damage.
