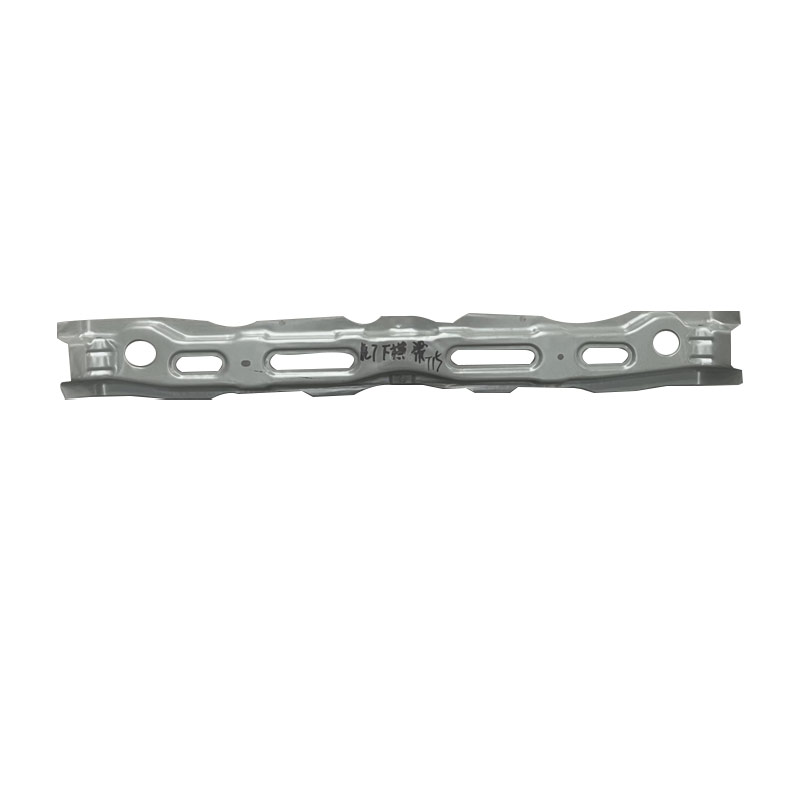

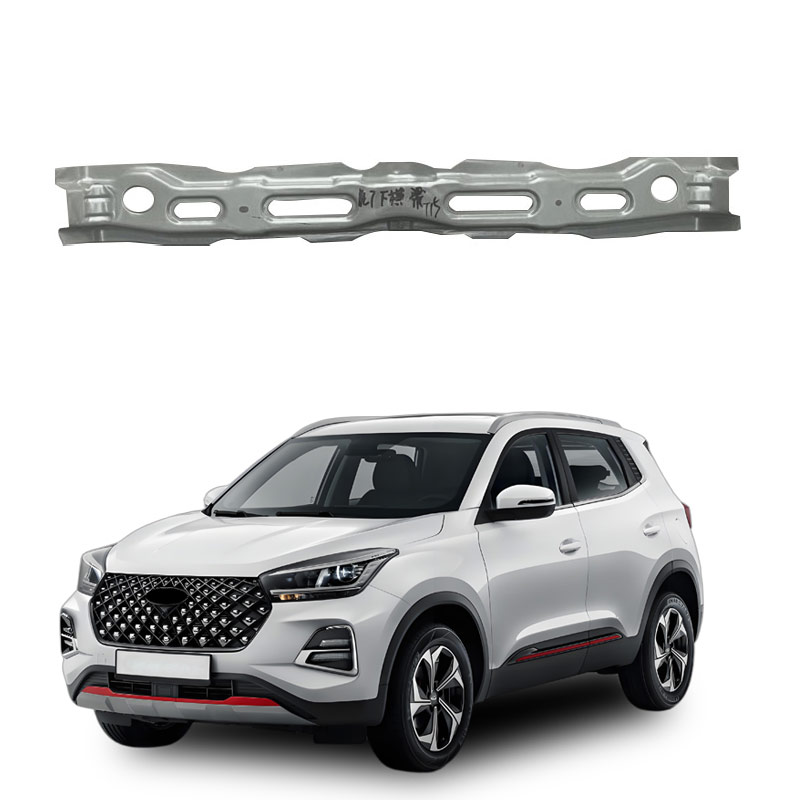

The function of the lower crossbeam of the car radiator
The main functions of the lower crossbeam of a car radiator include:
Structural support and strength guarantee
The crossbeam is connected to the frame through riveting, ensuring the torsional stiffness of the frame and its ability to bear longitudinal loads, supporting key vehicle components such as the radiator and engine, and guaranteeing the structural strength and rigidity of the vehicle body.
Simplify installation and achieve lightweight
Optimize the design of the water tank fixing device, omit the traditional support ribs and connection points, simplify the structure and reduce the weight, while freeing up more installation space in the front cabin to enhance the overall performance of the vehicle.
Collision buffering function
The crossbeam of some models also serves as a buffer for frontal collision forces, reducing the impact damage to the radiator and engine caused by the collision.
The lower crossbeam of the car radiator is an important component of the engine cooling system, and its working principle mainly involves heat conduction and liquid circulation. The following are the key points:
Coolant circulation
The lower crossbeam of the radiator dissipates heat through the circulation of coolant. The heat generated by the engine is transferred to the radiator through the coolant and then discharged by the cooling fan to maintain the normal operating temperature of the engine.
Material and structural properties
High-strength metal materials (such as aluminum alloy or steel) are usually adopted, featuring corrosion resistance and good thermal conductivity, ensuring structural stability and heat dissipation efficiency under complex working conditions.
Application of Process Analysis
CAE (Computer-Aided Engineering) analysis is often used to optimize design. For instance, by simulating the flow path and temperature distribution of coolant, the impact of material forming processes (such as stamping forming) on heat dissipation performance is evaluated to ensure that the crossbeam structure not only meets the strength requirements but also effectively reduces the engine's operating temperature.
The malfunction of the lower crossbeam of a car radiator may involve structural damage, installation issues or component failure. The following are common types of faults and their corresponding measures:
Structural damage
If the crossbeam deforms, cracks or breaks due to collision or rust, it may lead to a decrease in the structural strength of the vehicle body. Slight deformation can be corrected by professional equipment, while severe damage requires replacement of components.
Installation issue
The installation accuracy of the crossbeam affects the appearance of the vehicle body and the fit of its components. It is necessary to ensure that the positioning of the front bumper installation points, engine hood support points, etc. is accurate. If the deviation is too large, recalibration or adjustment is required.
Component failure
It is commonly seen in cooling system failures, such as antifreeze leakage (check the sealing of the radiator cap and whether the engine cylinder gasket is emulsified), and abnormal emissions due to oxygen sensor failure.
It is recommended to contact a professional maintenance institution for inspection as soon as a fault is found to avoid affecting driving safety.
The repair method for the damaged lower crossbeam of a car radiator should be selected based on the material and the extent of the damage:
Youdaoplaceholder0 Severe deformation or cracking : New corner materials need to be welded after cutting or the parts need to be replaced. For aluminum alloy materials, the whole part usually needs to be replaced.
Youdaoplaceholder0 Corrosion or rust : If damage is caused by long-term dampness, anti-rust treatment and repair are required.
Precautions
Stop the vehicle immediately for inspection. After ensuring safety, contact a professional repair point.
Regular maintenance should be carried out after repair to avoid secondary damage.
Anti-rust treatment is required for metal parts after repair.
It is recommended to give priority to 4S stores or professional maintenance institutions for handling to ensure structural strength and safety.
