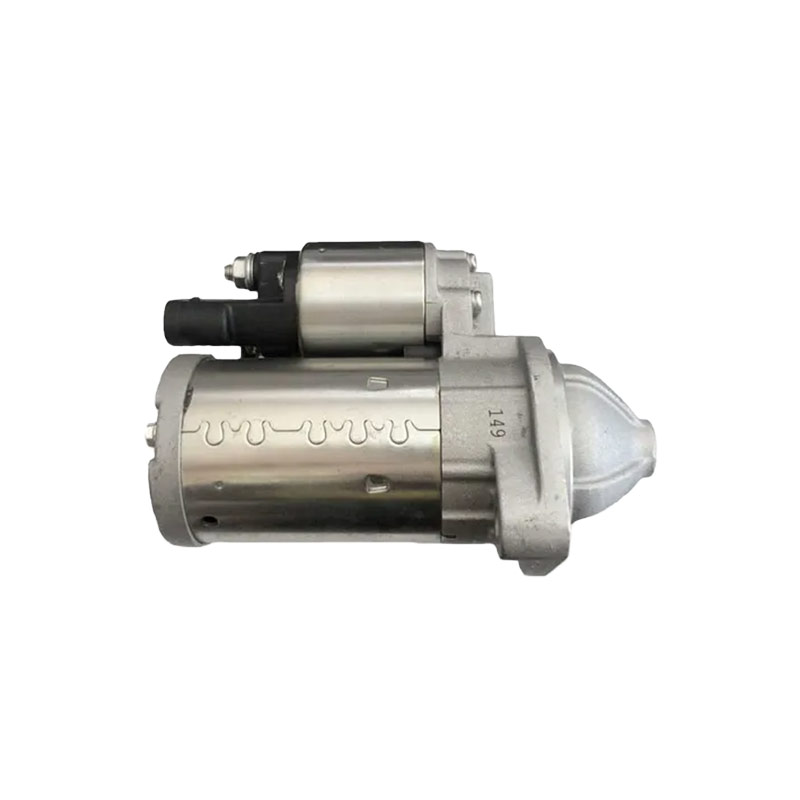

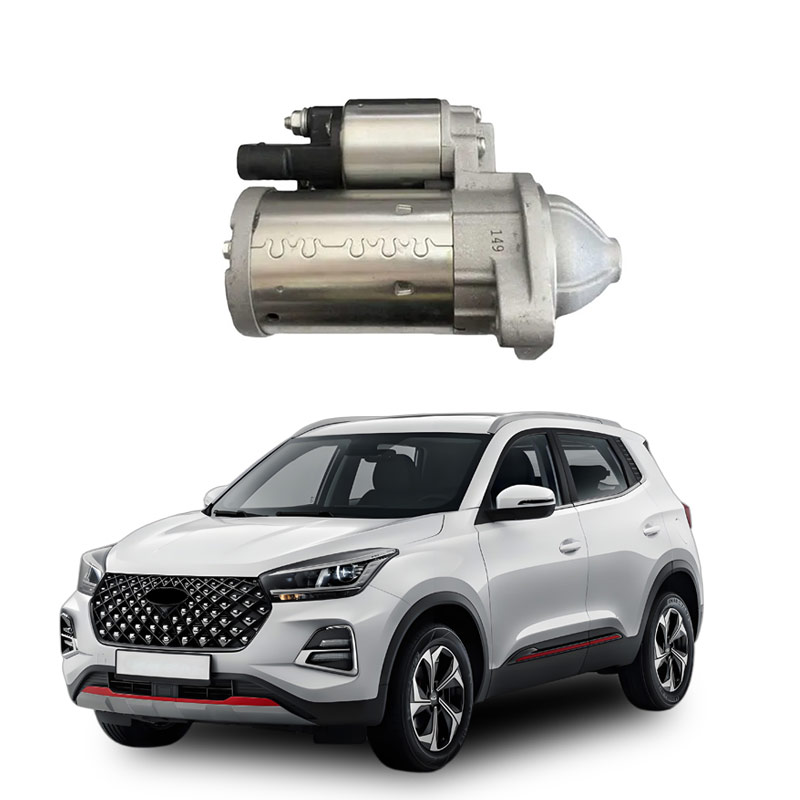

What is a car starter assembly
The starter assembly is the core component of the automotive starting system . Its function is to convert the electrical energy of the battery into mechanical energy to drive the engine flywheel to rotate and achieve starting. The following are its core components and the functions of each part:
Youdaoplaceholder0 DC series-excited motor .
Youdaoplaceholder0 armature assembly : Composed of a core made of silicon steel sheets, armature windings, armature shafts and commutators, it generates electromagnetic torque to drive operation.
Youdaoplaceholder0 stator assembly : Composed of the core, coils, etc., it forms a rotating magnetic field, providing power for the motor.
Youdaoplaceholder0 brush holder assembly : Provides commutation current to the rotor through carbon brushes.
Youdaoplaceholder0 transmission mechanism .
Youdaoplaceholder0 one-way clutch : drives the engine gear ring. After starting, it slips to protect the rotor and carbon brushes.
Youdaoplaceholder0 Fork and gear mechanism : controls the meshing and disengagement of the drive gear and the flywheel ring gear.
Youdaoplaceholder0 control device .
Youdaoplaceholder0 electromagnetic switch : It controls the on-off of the circuit and the meshing of gears through the attraction coil, holding coil, etc.
Youdaoplaceholder0 relay : Assists in controlling the starting current of the motor.
Encyclopedia
Youdaoplaceholder0 housing and auxiliary components .
Youdaoplaceholder0 Front and rear end covers : Support and protect the internal structure.
Youdaoplaceholder0 reduction mechanism (for some models) : Improves starting efficiency through gear reduction.
All components of the starter assembly work in coordination to ensure a smooth and safe starting process. Its structure is compact and highly integrated, making it convenient to replace as an independent unit during maintenance.
The main function of the automotive starter assembly is to control the on-off of the circuit through an electromagnetic switch and drive the rotation of the engine flywheel gear ring to start the engine.
Specific functions
Youdaoplaceholder0 electromagnetic switch control : By conducting current through an electromagnetic switch and controlling the engagement or disengagement of the unidirectional actuator through a fork, the on-off control of the starting circuit is achieved.
Youdaoplaceholder0 Power transmission : The torque generated by the electric motor is transmitted to the engine crankshaft through the transmission mechanism to assist in starting the engine.
Youdaoplaceholder0 Safety protection : The transmission mechanism is equipped with a disengagement function, which can prevent the motor from being damaged by reverse impact after the engine starts.
The key components work in synergy
Youdaoplaceholder0 DC motor : converts electrical energy into mechanical energy to generate the torque required for starting.
Youdaoplaceholder0 one-way valve : ensures that the motor meshes correctly with the engine flywheel to prevent the motor from being driven in reverse after the engine starts.
Youdaoplaceholder0 deceleration mechanism (for some models) : By decelerating and increasing torque, it reduces the impact of starting current on the battery.
Faults in the car starter assembly are usually manifested as no response or difficulty in starting, which may be caused by insufficient battery power, faults in the starter itself or circuit problems. The following are the specific reasons and solutions:
Common causes
Youdaoplaceholder0 battery power is insufficient
A discharged battery will cause the starter to fail to obtain sufficient current, which is manifested as no response or insufficient speed during startup.
Youdaoplaceholder0 electromagnetic switch fault of the starter
Poor contact of the electromagnetic switch, open circuit or short circuit of the coil can cause the starter to fail to operate. There may be a "click" sound but the starter cannot be started.
Youdaoplaceholder0 Abnormal transmission mechanism
Slippage of the one-way clutch, wear of the flywheel gear ring or breakage of the drive gear can cause idling and prevent the engine from being driven.
Youdaoplaceholder0 line connection problem
Loose, corroded starter wire ends or blown fuses can cause power supply interruption. It is necessary to check and tighten the wiring or replace the fuse.
Youdaoplaceholder0 internal mechanical failure
Deformation of the pivot, overly tight bearing clearance or erosion of the commutator can lead to weak operation, requiring disassembly for repair or replacement of components.
Solution
Youdaoplaceholder0 first check the battery
Use a multimeter to test the voltage. If it is lower than 12V, charge or replace the battery.
Youdaoplaceholder0 check the circuit connection
Check whether the positive and negative terminal connections of the starter are loose or corroded, and test the circuit continuity with a test lamp.
Youdaoplaceholder0 test the electromagnetic switch
Short-circuit the electromagnetic switch terminals S and M. If the starter is running, the starting relay needs to be replaced. If it still doesn't rotate, it might be a fault with the electromagnetic switch.
Youdaoplaceholder0 professional maintenance
Problems such as transmission mechanism and coil short circuit need to be disassembled and inspected. It is recommended to handle them at a professional repair point.
If there is an abnormal noise or a burnt smell during startup, immediate maintenance is required to prevent damage to other components.
