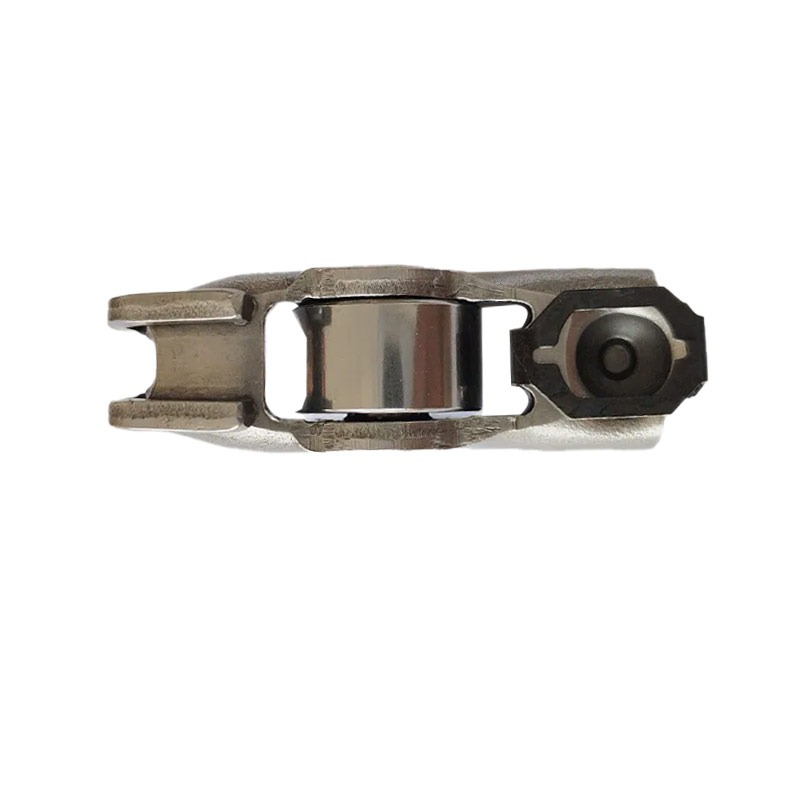

What is a car roller rocker arm assembly
The automotive roller rocker arm assembly is a key component of the engine valve train, mainly composed of rocker arms, rocker arm shafts and push rods. It adopts a roller structure to reduce friction and amplify the movement of the camshaft.
Core function
Convert the rotational motion of the camshaft into the linear motion of the valves, control the opening and closing of the valves, and achieve the four stroke cycles of intake, compression, power generation and exhaust of the engine.
Structural features
It adopts a double-arm lever design. The long arm end is connected to the valve stem, and the short arm end is equipped with an adjusting screw for regulating the valve clearance
It is equipped with lubricating oil channels and oil holes inside to ensure good lubrication
The head is usually designed to be cylindrical and rolls along the end face of the valve stem when swinging to reduce wear
Type difference
There are two common types: valve stem rocker arms and roller rocker arms. Among them, the roller rocker arm converts sliding friction into rolling friction through needle roller bearings, which can reduce wear and optimize valve lift control.
The function of the automotive roller rocker arm assembly is to convert the rotational motion of the camshaft into the linear motion of the valves, precisely control the opening and closing of the valves, and achieve the valve distribution function of the engine.
Specific function
Youdaoplaceholder0 motion conversion
The rotational motion of the camshaft is converted into the linear motion of the valves through a lever structure, ensuring that the valves open and close on time.
Youdaoplaceholder0 valve control
Optimizing the valve lift curve to achieve precise control of intake and exhaust directly affects the charging efficiency and combustion efficiency of the engine.
Youdaoplaceholder0 system support
As the core component of the valve train, it needs to withstand the thrust transmitted by the camshaft and the reaction force of the valve spring to ensure the stability of the transmission system.
Faults in the roller rocker arm assembly of a car are usually manifested as abnormal engine noise, reduced power, increased fuel consumption and other symptoms. The specific causes involve design flaws, insufficient lubrication, high-load operation and other factors.
Common fault symptoms
Youdaoplaceholder0 Metallic abnormal noise : A clear metallic knocking sound occurs at idle or low speed, and the abnormal noise may intensify during acceleration.
Youdaoplaceholder0 Power loss : Abnormal opening and closing of valves result in insufficient intake, causing weak acceleration and delayed throttle response.
Youdaoplaceholder0 Increased fuel consumption : The combustion efficiency declines, and fuel consumption may increase by 10% to 20%.
Youdaoplaceholder0 Difficulty in starting : Severe malfunctions may cause starting failure or stalling.
Analysis of Fault Causes
Youdaoplaceholder0 Design defect : The rocker arm design of some models has a stress concentration problem, which can easily lead to deformation or fracture under long-term high load.
Youdaoplaceholder0 Abnormal lubrication : Insufficient engine oil, clogged filter or abnormal pump pressure, causing dry friction between metals.
Youdaoplaceholder0 High-load operation : Frequent high-speed driving or heavy-load climbing increases the load on components.
Preventive and handling suggestions
Youdaoplaceholder0 Regular maintenance : Check the oil level and the condition of the filter, and use oil that meets the standards.
Youdaoplaceholder0 Avoid extreme operating conditions : Reduce prolonged high-load driving and pay attention to engine cooling.
Youdaoplaceholder0 Timely maintenance : When abnormal noise or power decline is detected, immediately check the valve clearance and replace the assembly if necessary.
The working principle of the automotive roller rocker arm assembly mainly relies on the coordination of the hydraulic system and ball bearings to achieve automatic adjustment and lubrication of the valve clearance. The following is the specific mechanism:
Structural composition
The roller rocker arm assembly consists of hydraulic components (plunger hydraulic cylinder, plunger spring, check valve) and ball bearing assembly (steel plate profile, CAM roller). Among them, the hydraulic components are connected to the engine lubrication system through the oil passage, and the check valve is composed of a small ball and a compression spring.
Work process
Youdaoplaceholder0 gap adjustment
When there is valve clearance, the plunger is pushed out by the spring until the roller is in contact with the CAM. At this point, the check valve opens, and the engine oil enters the lower oil chamber to balance the pressure, ultimately achieving a close contact between the roller rocker arm and the CAM.
Youdaoplaceholder0 valve drive
When the CAM rotates, the roller follows and drives the rocker arm lever to move. The hydraulic cylinder achieves continuous lubrication by splashing lubricating oil, reducing friction loss and lowering operating noise at the same time.
Youdaoplaceholder0 dynamic equilibrium
When the camshaft rotates to the valve closure stage, the check valve closes after the pressure in the hydraulic cylinder is balanced, completing the valve spring return action.
Fault case
If the oil pressure is abnormal or the oil quality is poor (such as poor-quality fuel causing the oil to deteriorate), it may lead to problems such as corrosion of the valve tappets and lubrication failure, which in turn may cause abnormal noises or power loss.
