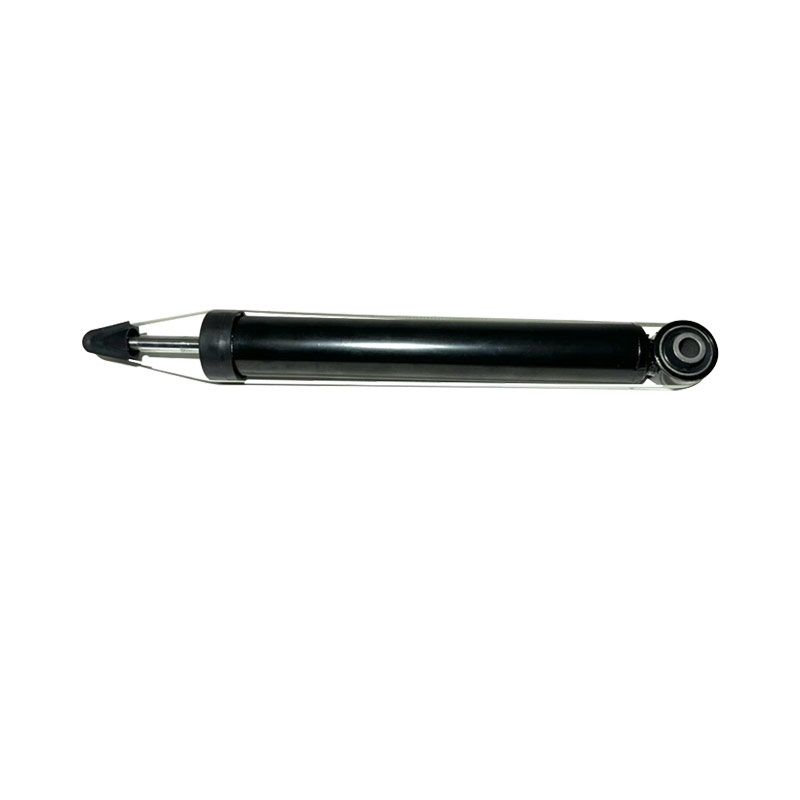

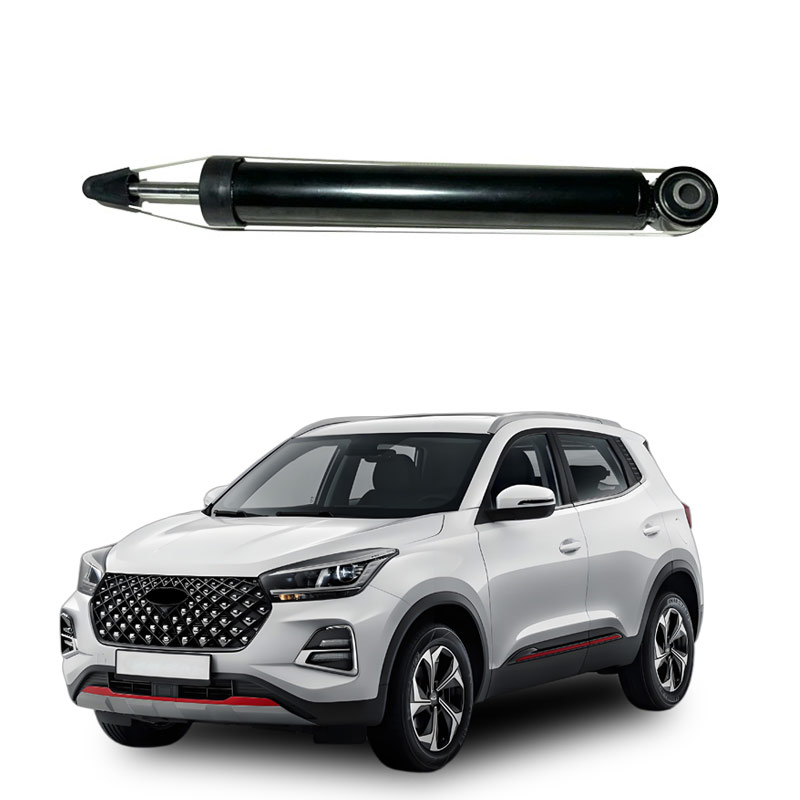

What is a rear shock absorber for a car
The rear shock absorber of a car is a key component in the vehicle's suspension system. It is mainly used to suppress the rebound oscillation after the spring absorbs shock and the impact from the road surface, and to keep the vehicle body stable by consuming vibration energy.
Core function
Youdaoplaceholder0 shock buffering : Absorb the impact from the road surface during vehicle operation and reduce the bouncing sensation.
Youdaoplaceholder0 Suppress rebound : Delay the excessive extension and contraction of the spring to maintain the stable posture of the vehicle body.
Youdaoplaceholder0 Improve handling : Enhance tire grip when cornering to ensure driving safety.
Structure and Principle
By using hydraulic or gas damping devices, when the vehicle vibrates, the oil or gas inside the shock absorber flows through the pores to generate damping force, converting mechanical energy into heat energy for dissipation.
Common types
Youdaoplaceholder0 Hydraulic type : It achieves shock absorption by utilizing the damping of oil flow, featuring low cost and simple structure, and is suitable for daily road conditions.
Youdaoplaceholder0 Pneumatic type : It buffers vibrations by compressing and expanding gas, and is more sensitive in response. It is mostly used in high-end vehicle models.
Youdaoplaceholder0 electronic type : It can automatically adjust the damping force to adapt to different road conditions.
Maintenance suggestions
When oil leakage, obvious bouncing or insufficient grip when cornering occurs, inspection and replacement are required. The service life is usually 3 to 5 years.
Automobile shock absorbers are the core components of the vehicle suspension system and belong to vibration damping devices. Their main function is to attenuate the vibrations caused by road impacts, thereby enhancing ride smoothness and handling safety. It converts mechanical energy into thermal energy through hydraulic or gas damping, reduces resistance during the suspension compression stroke to buffer impact, increases resistance during the extension stroke to suppress rebound, and ensures wheel grip.
This device generally adopts a bidirectional action cylinder structure, and its main types include hydraulic type, pneumatic type and resistance adjustable type. The inflatable type isolates the oil from high-pressure nitrogen through a floating piston, while the adjustable resistance type works in conjunction with an air suspension to dynamically adjust the damping aperture. During daily use, it is necessary to regularly detect faults such as oil leakage and abnormal noise, and evaluate the working status through temperature monitoring or pressure test.
The main symptoms of faults in the rear shock absorber of a car are as follows:
The driving comfort has declined.
When the vehicle passes over a bumpy road, it shows obvious bouncing and shaking, and the number of aftershocks increases (for example, the vehicle body shakes 2-3 times after passing a pothole before stopping)
When braking, the subsidence amplitude of the front or rear of the vehicle increases, affecting braking stability
Abnormal noise and temperature
When jolting, there is a dull thud or creaking friction sound
Abnormal temperature of the shock absorber housing (normally it should be warm; if it is cold, it may be damaged)
Accelerated component wear
Abnormal tire wear (unilateral wear rate exceeding 0.8mm/ 10,000 kilometers or fish-scale patterns on the tread)
Other components of the suspension system (such as springs, balls, etc.) age more rapidly due to additional loads
Fault diagnosis method
Youdaoplaceholder0 Locate by sound : If you hear a "thump thump" sound when passing over a speed bump, it may be due to the aging of the oil seal inside the shock absorber or the wear of the piston
Youdaoplaceholder0 Touch detection : after parking, press the corner of the vehicle body. If it rebounds more than three times and keeps shaking, the shock absorber has failed
Youdaoplaceholder0 Observe oil stains : If continuous oil droplets or oil stains appear at the bottom of the shock absorber, it indicates that the seal has failed and needs to be replaced
It is recommended to replace the shock absorbers in a timely manner upon discovering the above symptoms to avoid a decline in handling and potential safety hazards caused by an imbalance in the suspension system.
