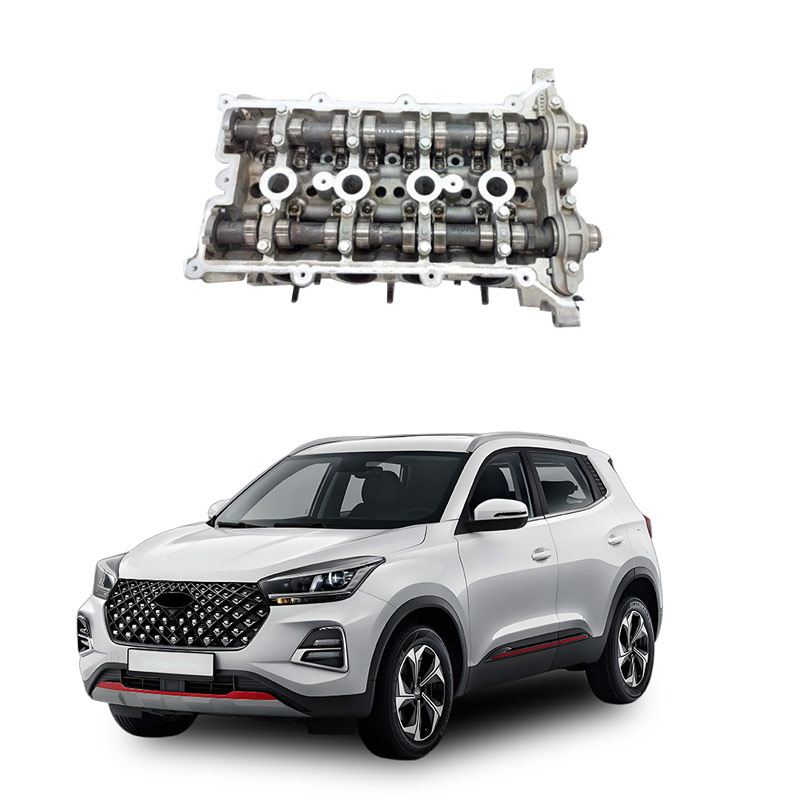

What does a cylinder head assembly mean
The cylinder head assembly is a core component of the engine, installed on the top of the engine block, used to seal the cylinders and form the combustion chamber. It is mainly composed of the cylinder head body, valve assembly , valve guide , camshaft bearing , etc., and undertakes the functions of intake, exhaust, ignition or fuel injection.
Core function
Youdaoplaceholder0 Sealed combustion chamber : Together with the top of the piston, it forms a sealed space to ensure complete combustion of fuel.
Youdaoplaceholder0 Valve control : Intake and exhaust are achieved by opening and closing the valves.
Youdaoplaceholder0 heat dissipation structure : It is equipped with water channels inside or uses aluminum alloy material for heat conduction to reduce the working temperature.
Structural differences
Youdaoplaceholder0 gasoline engine : usually has holes for installing spark plugs, and the combustion chamber is mainly located in the cylinder head.
Youdaoplaceholder0 diesel engine : It is equipped with fuel injector mounting holes, and the combustion chamber is mainly located in the depression on the top of the piston.
Materials and Processes
Common materials include gray cast iron, alloy cast iron and aluminum alloy (with better thermal conductivity). The structure is divided into integral type, block type and single type, and it needs to have high strength and rigidity to withstand high-temperature and high-pressure environments.
The cylinder head assembly mainly includes the cylinder head body, valve mechanism components, cooling and lubrication system, and sealing parts . The specific composition varies depending on the type of engine.
Core architecture

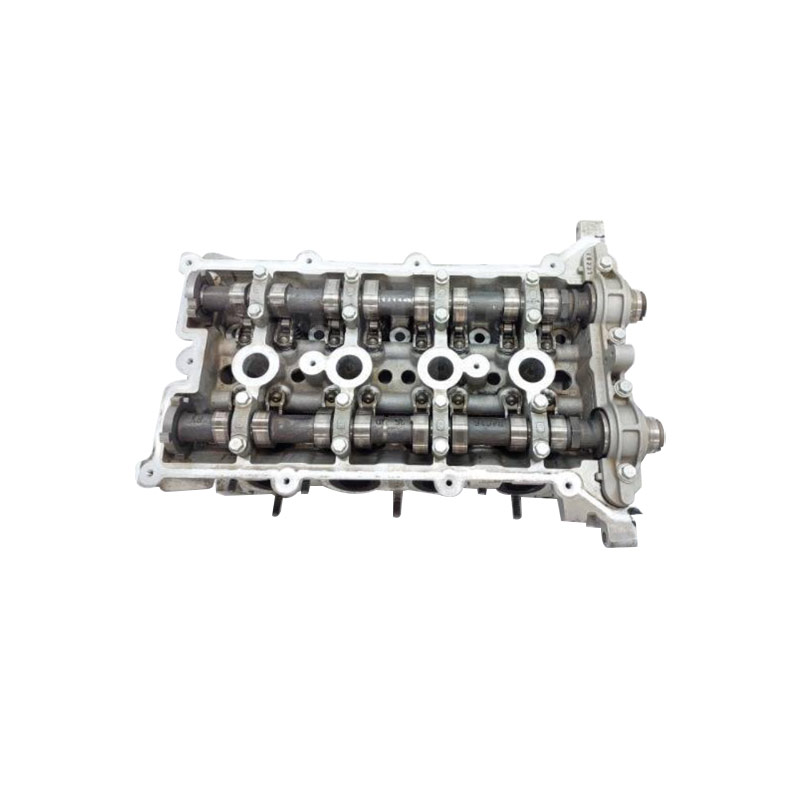

Cylinder head body
As the main structural body of the assembly, it is mostly cast from cast iron or aluminum alloy, including basic structures such as the combustion chamber, intake and exhaust ducts, and valve guide holes.
The integrated water jacket (coolant channel) and oil channel system are responsible for heat dissipation and lubrication functions.
Valve drive system
Valve assembly: It includes intake valves/exhaust valves, valve springs, valve guides and valve seat rings.
Transmission mechanism: It involves rocker arms, tappets, camshaft support seats (partially integrated design) and valve clearance adjustment devices.
Auxiliary function module
Ignition system interface: Spark plug mounting holes for gasoline engines or fuel injector mounting holes for diesel engines.
Sealing system: cylinder gaskets, valve covers and various types of oil seals (crankshaft oil seals, camshaft oil seals, etc.).
Youdaoplaceholder0 special design elements
Youdaoplaceholder0 Engine type differences
Gasoline engine: Standard with spark plug mounting holes, and the intake system structure is complex.
Diesel engine: Equipped with fuel injector mounting holes, the combustion chamber pressure is higher.
Youdaoplaceholder0 integration trend
In modern design, the camshaft support seat, tappet guide hole and cylinder head body are often integrally cast.
Byd's latest patent shows that thermal efficiency can be enhanced by optimizing the layout of airflow channels and coolant channels.
Cylinder head assembly faults fall within the scope of major overhauls, mainly involving the following types of faults and corresponding measures:
Common types of faults
Youdaoplaceholder0 crack : Caused by high temperature, uneven tightening torque of bolts or material issues, it may lead to air or oil leakage.
Youdaoplaceholder0 Poor sealing : Aging of the cylinder gasket, loose bolts or excessive flatness can cause gaps at the mating surface, leading to air and oil leakage.
Youdaoplaceholder0 deformation : Aluminum alloy material is prone to deformation when heated, resulting in a decline in sealing performance.
Youdaoplaceholder0 Water leakage/oil leakage : caused by the failure of the seal at the joint surface between the cylinder head and the cylinder block, or a malfunction in the cooling system.
Maintenance characteristics
Replacing the cylinder head assembly requires disassembling the engine and involves the installation of precision components, which incurs high maintenance costs, complex technical requirements, and may affect the vehicle's value retention.
Preventive suggestions
Regularly inspect the cooling system to prevent the engine from running at high temperatures for a long time
Standardize driving habits and reduce the impact load caused by intense driving
When repairing, strictly follow the tightening torque standard.
