What is a crankshaft sprocket for a car

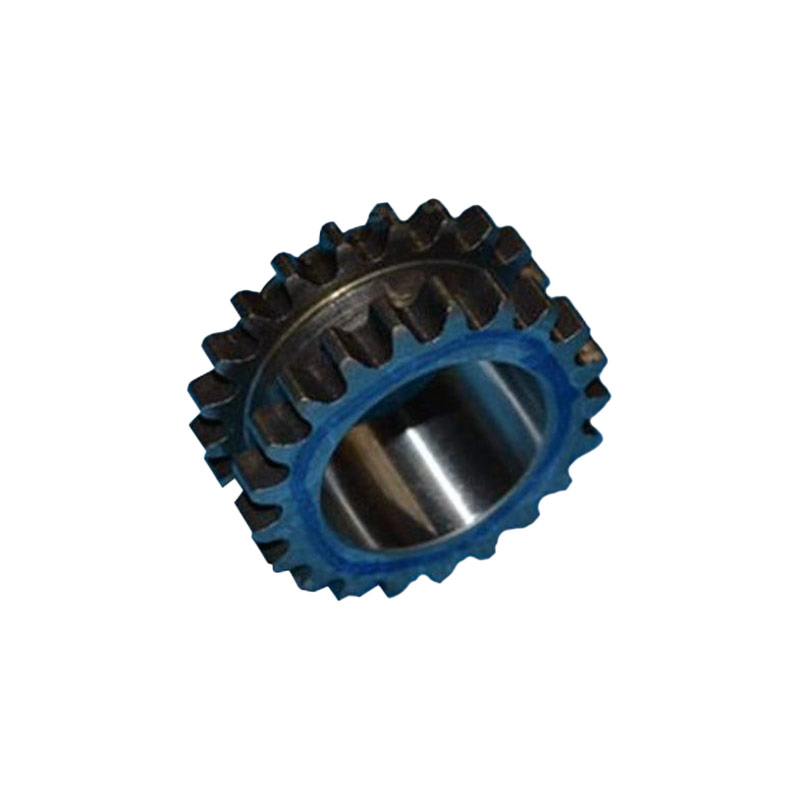

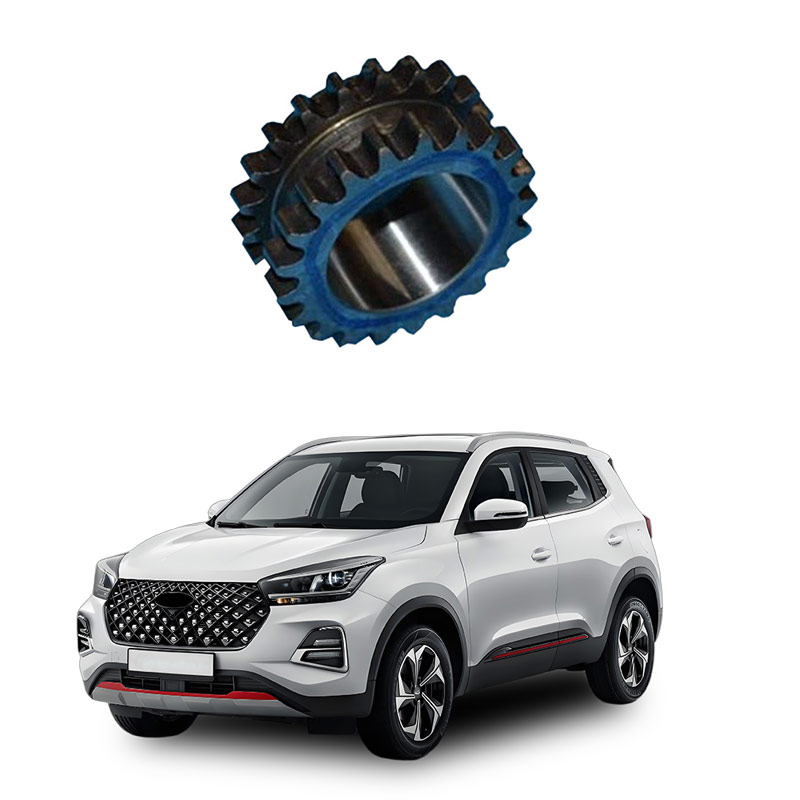

The automotive crankshaft sprocket is an important component in the engine. Its main function is to drive the camshaft to rotate through the timing chain, thereby controlling the operation of the valve train. The crankshaft sprocket is usually installed on the crankshaft and connected to the camshaft sprocket through a timing chain to ensure the coordinated operation of all engine components .
Structure and working principle
Crankshaft sprockets are usually made of metal materials and have high strength and durability. It is installed on the crankshaft and connected to the camshaft sprocket through a timing chain. The timing chain is driven by the crankshaft and uses a hydraulic tensioner to maintain an appropriate tension, ensuring smooth and reliable transmission. The timing chain transmits power through the sprocket, driving the camshaft to rotate and thereby controlling the opening and closing of the valves to ensure the normal operation of the engine .
Maintenance and upkeep
Since the timing chain is made of metal materials and does not require lubrication, it basically needs no maintenance during use. However, to ensure its normal operation, it is necessary to regularly check the tension and wear of the chain to ensure good fit between all components and avoid faults caused by loosening or wear .
The main function of the crankshaft sprocket in a car is to ensure the valve timing when the engine is running, making the opening and closing of the intake and exhaust valves consistent with the movement of the piston .
Specifically, the crankshaft sprocket connects key rotating components of the engine such as the crankshaft and camshaft through a chain, ensuring their synchronous operation, thereby precisely controlling the opening and closing times of the valves and the ignition sequence .
Working principle
The working principle of the crankshaft sprocket is to transmit the rotational motion of the crankshaft to the camshaft through the chain, thereby controlling the opening and closing of the valves. When the crankshaft rotates, the chain drives the crankshaft sprocket to rotate, and the crankshaft sprocket then drives the camshaft to rotate through the chain. The CAM on the camshaft will push the valve mechanism, causing the valves to open and close on time. In this way, the intake and exhaust processes of the engine can be perfectly synchronized with the movement of the piston, ensuring the efficient operation of the engine .
Maintenance and upkeep
To ensure the normal operation of the crankshaft sprocket, regular inspection and maintenance are required. Specific measures include:
Youdaoplaceholder0 lubrication : Ensure that the chain and sprocket are well lubricated to reduce wear and friction.
Youdaoplaceholder0 Adjust the tension : Regularly check the tension of the chain to ensure it operates under an appropriate tension and avoid abnormal wear caused by being too loose or too tight.
Youdaoplaceholder0 cleaning : Keep the sprocket and chain clean to prevent impurities from entering and causing wear or jamming.
Youdaoplaceholder0 Replace worn parts : Regularly inspect the wear of sprockets and chains, and replace severely worn components in a timely manner to prevent engine failure caused by component failure .
The main manifestations of the crankshaft sprocket fault in a car are severe engine idle vibration, the fault light coming on, and the fault codes obtained through the diagnostic instrument are P0016 (the installation position of the camshaft and crankshaft does not match) and P0012 (the intake VVT is not in the preset position when starting) .
These fault codes indicate that there might be problems with the timing system or the VVT sprocket.
Cause of failure
Youdaoplaceholder0 timing system issue : It could be a problem with the timing system, such as incorrect installation of the camshaft, crankshaft, and timing chain, or abnormal analysis of the position sensor signal by the ECU .
Youdaoplaceholder0 VVT sprocket issue : There is a problem with the oil volume regulation in the advance chamber and lag chamber of the VVT sprocket. It may be due to the oil control valve being stuck or the oil passage being blocked, causing the VVT sprocket to fail to reach the preset position .
Diagnostic methods
Youdaoplaceholder0 Check the timing system : confirm whether the camshaft, crankshaft and timing chain are installed correctly. After ruling out installation issues, further check whether the position sensor and ECU signal analysis are normal .
Youdaoplaceholder0 Check the VVT sprocket : disassemble the oil control valve, clear any possible metal shavings or other debris, ensure the oil passage is unobstructed, reinstall and test run to confirm whether the fault has been resolved .
preventive measure
Youdaoplaceholder0 Regular inspection and maintenance : Regularly check the condition of the lubricating oil to ensure that the chain and sprocket are adequately lubricated, reducing friction and wear .
Youdaoplaceholder0 Adjust the chain tension : Ensure that the chain tension is within the recommended range and avoid being too loose or too tight .
Youdaoplaceholder0 Select the appropriate lubricating oil : Use the suitable lubricating oil and lubricate it at the recommended frequency .
