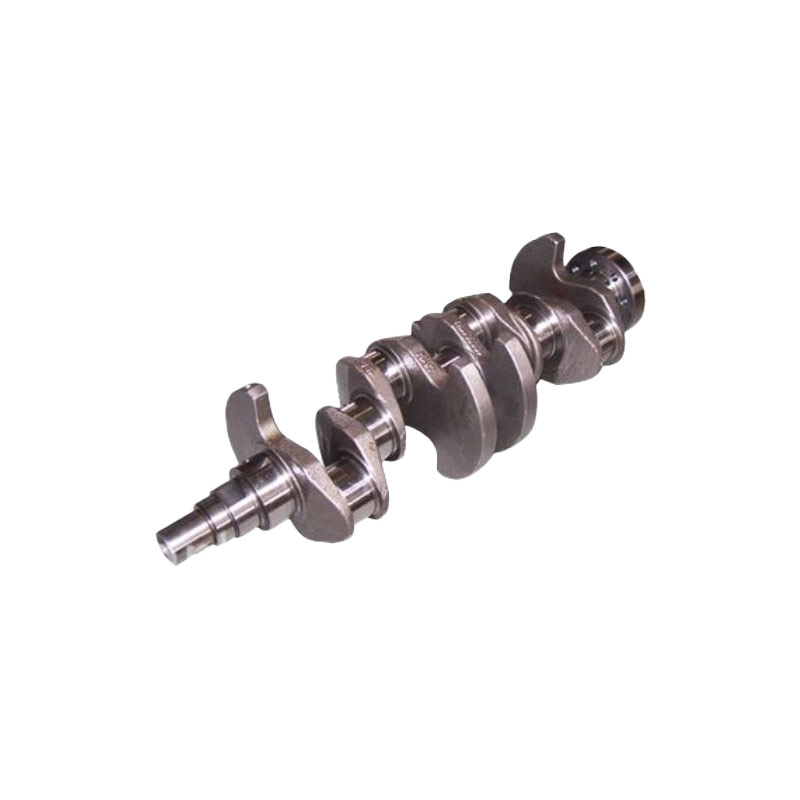

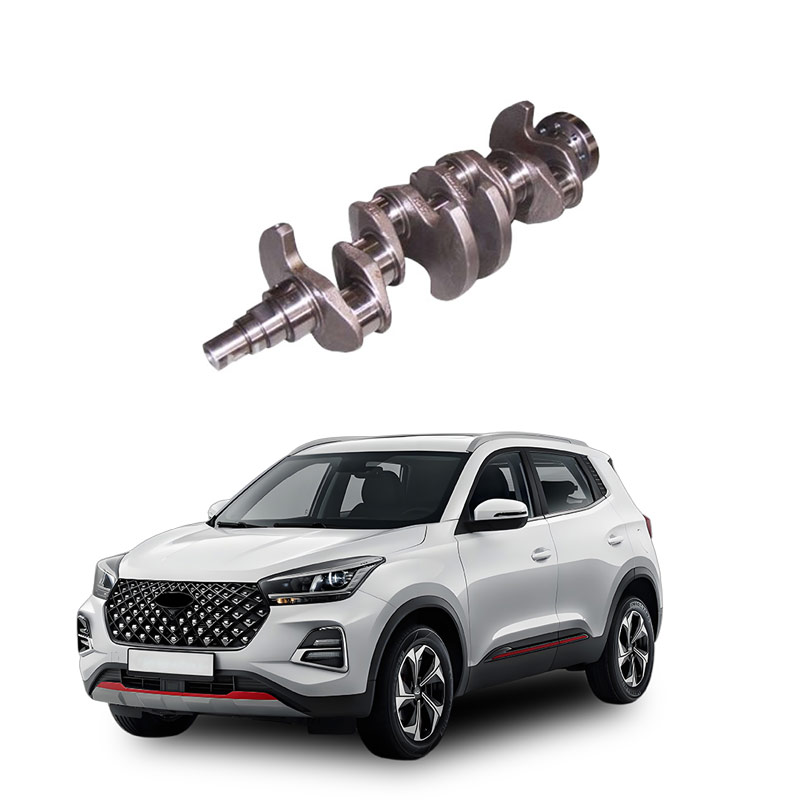

What does a car crankshaft assembly mean
The automotive crankshaft assembly refers to the component that converts the reciprocating linear motion of the piston into its own rotational motion, thereby outputting power externally. It is an important component of the engine, responsible for converting the energy generated by combustion into mechanical energy to drive the car to run .
The composition and functions of the crankshaft assembly
The crankshaft assembly mainly consists of the following parts:
The front end (or free end) of the crankshaft : it is used to connect the flywheel and the clutch.
Youdaoplaceholder0 connecting rod journal : Connected to the big end hole of the connecting rod, it transmits the reciprocating motion of the piston.
Youdaoplaceholder0 main journal : Installed on the cylinder block, it supports the rotational motion of the crankshaft.
Youdaoplaceholder0 crank : connects the connecting rod journal and the main journal, achieving the conversion from reciprocating motion to rotational motion.
Youdaoplaceholder0 balance block : It is used to balance the inertial force during the operation of the crankshaft and reduce vibration.
The rear flange of the crankshaft : as the power output end, it connects to the transmission system .
The role of the crankshaft assembly in the engine
The crankshaft assembly plays a crucial role in the engine:
Youdaoplaceholder0 Energy conversion : Convert the reciprocating motion of the piston into rotational motion, thereby driving the engine to operate.
Youdaoplaceholder0 Power transmission : Connected to the transmission system through the flywheel and clutch, it transmits power to other parts of the vehicle.
Youdaoplaceholder0 Balance vibration : Reduce the vibration and noise during engine operation through the design of balance weights .
The main functions of the automotive crankshaft assembly include the following aspects:
Youdaoplaceholder0 Power conversion : The crankshaft works in conjunction with the connecting rod to convert the gas pressure acting on the piston into rotational power, which is then transmitted to the transmission mechanism of the chassis, thereby driving the vehicle forward .
Youdaoplaceholder0 Drive auxiliary devices : The crankshaft drives other auxiliary devices, such as fans, water pumps, generators, etc., through a belt, ensuring the normal operation of the engine and maintaining an appropriate working temperature .
Youdaoplaceholder0 Balance engine operation : The counterweight on the crankshaft can counteract the unbalanced force generated during engine operation, reduce vibration and noise, and make the engine run more smoothly .
The working principle of the crankshaft is to convert the pneumatic force generated by the piston and connecting rod into rotational torque to drive the vehicle's transmission system and other auxiliary equipment. During the operation of the engine, the crankshaft is subjected to periodically changing bending and torsional forces, so it needs to have sufficient strength and rigidity .
The structure of the crankshaft consists of multiple unit crankshafts, each of which includes a crankpin, crankarms on both sides, and a main journal. The design of the front and rear ends of the crankshaft and the setting of the counterweight both contribute to balancing the vibration of the crankshaft .
The material and manufacturing process of the crankshaft is usually made of medium carbon steel or medium carbon alloy steel through die forging. The journal sections will undergo high-frequency quenching or nitriding treatment to enhance hardness. Modern automotive engines tend to use ductile iron crankshafts, which have excellent wear resistance and are relatively low in cost .
Youdaoplaceholder0 Faults in automotive crankshaft assemblies are mainly manifested as the following common symptoms:
Youdaoplaceholder0 Weakened power : When you feel that your vehicle has difficulty accelerating and is not as fast as before, it is very likely that the crankshaft is worn or damaged, causing the engine to be unable to provide sufficient power .
Youdaoplaceholder0 Abnormal noise : If you hear strange noises from the engine when starting the vehicle or accelerating, it may be caused by the wear of the crankshaft bearing. This abnormal noise is a clear sign of crankshaft failure and maintenance should be arranged as soon as possible .
Youdaoplaceholder0 Body shaking : During driving, the body experiences unstable shaking, which may be due to a crankshaft failure disrupting the engine's balance. This situation will not only reduce the comfort of driving, but may also cause other faults .
Youdaoplaceholder0 Excessive engine temperature : Crankshaft failure may cause unstable engine operation, which in turn leads to an abnormal increase in engine temperature. Excessively high temperatures will accelerate the wear of the crankshaft and other components, having an adverse effect on the engine 's lifespan .
Youdaoplaceholder0 Sudden stalling : In severe cases, a crankshaft failure may cause the engine to suddenly stop working while driving, which is extremely dangerous. If this happens, stop immediately and seek professional help .
The working principle and common causes of faults of crankshaft assemblies
The crankshaft is a key component of an engine. Its function is to convert the reciprocating motion of the piston into rotational motion, thereby driving the engine to operate. The main causes of crankshaft assembly failure include
Youdaoplaceholder0 Oil supply issue : Insufficient oil supply, the presence of impurities or acidic substances can lead to poor fit between the journal and the bearing bush, causing premature wear .
Youdaoplaceholder0 Bearing wear : Bearing wear can cause unstable operation of the crankshaft, resulting in abnormal noise and vibration .
Youdaoplaceholder0 Poor lubrication : Failure to change the lubricating oil on time or poor quality of the lubricating oil will increase the friction between the crankshaft and the bearing, accelerating wear .
Youdaoplaceholder0 overheating : Excessively high engine temperature will accelerate the wear of the crankshaft and other components, affecting their service life .
Maintenance and care suggestions
To prevent crankshaft assembly failure, it is recommended to carry out the following regular maintenance and care:
Youdaoplaceholder0 Regularly change the engine oil and oil filter , and ensure that the engine oil is clean and in sufficient supply.
Youdaoplaceholder0 Check and replace the lubricating oil to ensure good lubrication effect.
Youdaoplaceholder0 Regularly inspect the wear of crankshaft bearings and bearing shells , and replace damaged parts in a timely manner.
Youdaoplaceholder0 Keep the engine cooling system working properly to prevent the engine from overheating.
Youdaoplaceholder0 Regularly conduct engine maintenance checks , including checking for abnormal sounds, vibrations and temperatures, etc., and promptly identify and solve problems.
