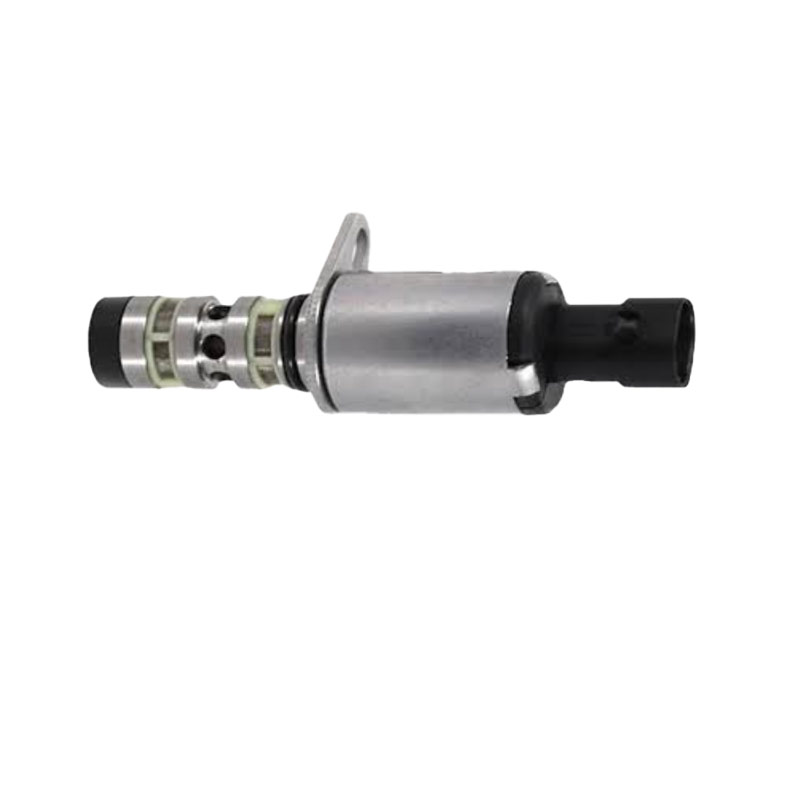

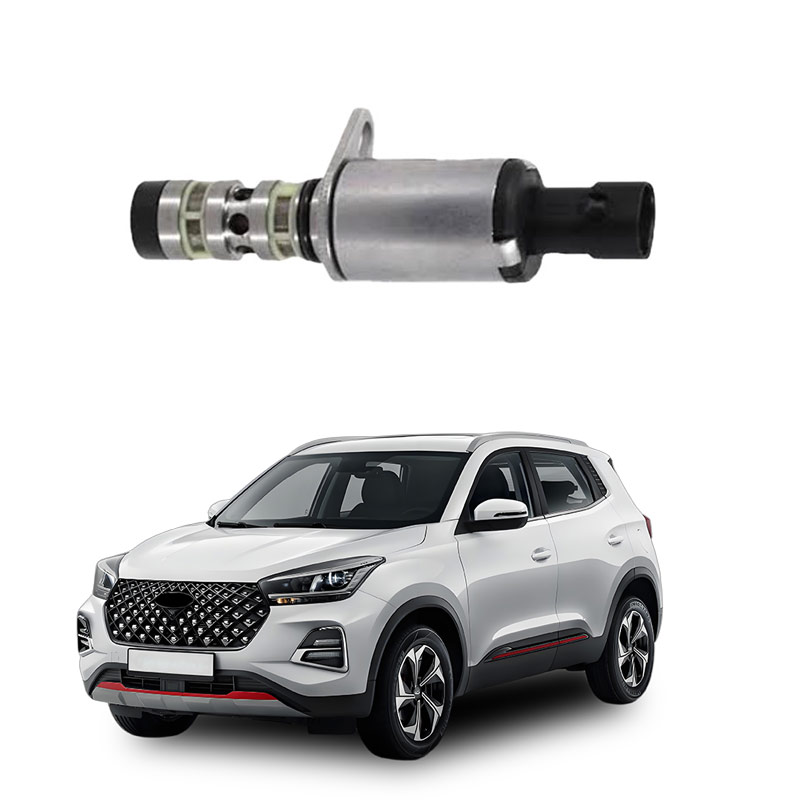

What is the automotive control valve - camshaft phase controller assembly
The automotive control valve - camshaft phase controller assembly is a key component in an automotive engine, mainly responsible for controlling the opening and closing times of the valves to optimize the performance of the engine.
Basic concepts and functions
The camshaft phase converter assembly is an important component of the engine's valve train. Its main function is to adjust the opening and closing times of the valves to meet the engine's requirements under different operating conditions. Specifically, the camshaft phase controller assembly can precisely control the timing of exhaust and intake based on the engine's speed and load conditions, thereby enhancing the engine's power, torque and fuel economy .
Working principle
The working principle of the camshaft phase converter assembly is based on adjusting the phase of the camshaft through hydraulic or mechanical means. In the hydraulic system, the engine control unit (ECU) controls the changes in oil pressure based on the feedback information from various sensors, thereby altering the phase of the camshaft. The mechanical method achieves phase adjustment through mechanical devices such as gears or chains .
Structural composition
The camshaft phaser assembly is usually composed of the following parts:
Youdaoplaceholder0 stator : Fixed part, usually connected to the engine block.
Youdaoplaceholder0 rotor : The movable part that moves relatively to the stator through hydraulic or mechanical means.
Youdaoplaceholder0 control oil passage : used to guide and control the pressure and flow of hydraulic oil.
Youdaoplaceholder0 actuator : According to the instructions of the ECU, it controls the changes in oil pressure to adjust the phase of the camshaft .
Application scenarios and significance
The camshaft phase converter assembly plays a crucial role in automotive engines. It can automatically adjust the opening and closing times of the valves according to different engine operating conditions (such as idling, acceleration, high-speed driving, etc.), thereby improving the engine's response speed, fuel economy and emission performance. In addition, the precise control of the camshaft phaser assembly can also extend the service life of the engine and reduce the failure rate .
The main function of the automotive control valve - camshaft phase controller assembly is to regulate the valve timing of the engine, thereby optimizing the engine performance.
The basic concepts and functions of camshaft phase controllers
The camshaft phase controller, also known as the camshaft regulator or camshaft phase regulator, has the core function of collecting the position signals of the valve camshaft and inputting these signals into the electronic control unit (ECU). Through these signals, the ECU can identify the compression top dead center of cylinder 1, and then perform sequential fuel injection control, ignition timing control and deflagration control. In addition, the camshaft position signal is also used to identify the first ignition moment when the engine starts.
The working principle of the camshaft phaser
The camshaft phase controller monitors the position and Angle of the camshaft and feeds the signal back to the engine control unit (ECU) in real time to ensure that the valves open and close on time when the piston reaches the optimal position. This precise control ensures that every intake and exhaust is exactly the same, thereby enhancing the engine 's power output and reducing fuel consumption .
The structural composition of the camshaft phaser
Taking the VANOS system as an example, the camshaft phase regulator is mainly composed of the inner rotor and the camshaft connected together by bolts, and the timing chain is connected to the camshaft phase regulator housing. Inside the rotor, there are springs and blades. As the rotor rotates, the blades drive the camshaft to rotate, thereby changing the valve train phase. When the engine speed changes, the ECU will send instructions to the oil control valve based on the camshaft position, and control the camshaft phase by adjusting the oil pressure on both sides of the working chamber.
