What does "automotive connecting rod assembly" mean
The automotive connecting rod assembly refers to an assembly system that combines key components such as connecting rods, pistons, and piston pins in an engine. The connecting rod assembly plays a crucial role in the engine. It connects the piston and the crankshaft, ensuring smooth and stable power transmission .
The structure and function of the connecting rod assembly
The connecting rod assembly mainly consists of the following parts:
Youdaoplaceholder0 connecting rod : It connects the piston and the crankshaft, converting the reciprocating motion of the piston into the rotational motion of the crankshaft, thereby output power .
Youdaoplaceholder0 piston : In coordination with the cylinder, it forms a sealed cavity, withstanding the gas pressure and transmitting it to the connecting rod .
Youdaoplaceholder0 piston pin : connects the piston and the small end of the connecting rod, and transmits the gas force borne by the piston .
Youdaoplaceholder0 Other components : such as bearings, bolts, etc., ensure the stable connection and operation of each component .
Maintenance and common problems of connecting rod assemblies
The maintenance of the connecting rod assembly is of great significance. It is necessary to regularly inspect the condition of each component to ensure there is no abnormal wear or loosening. The mass-balanced connecting rod has a decisive influence on the vibration control and overall performance of the engine .
The main function of the automotive connecting rod assembly is to connect the piston and the crankshaft, converting the reciprocating motion of the piston into the rotational motion of the crankshaft, thereby output power .

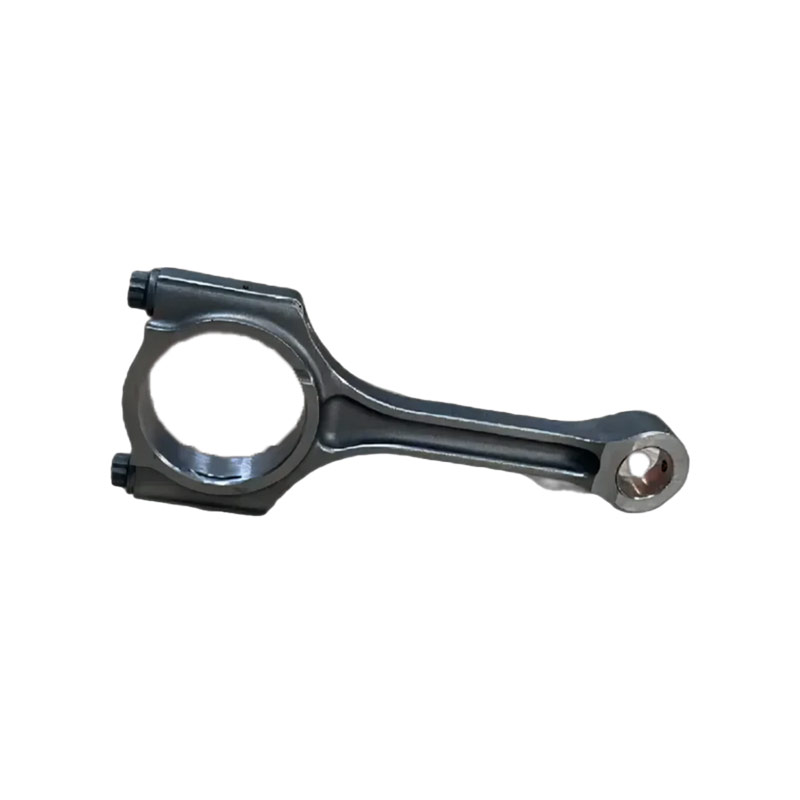

Specifically, the connecting rod assembly consists of the connecting rod body, the large end cover of the connecting rod, the small end bushing of the connecting rod, the large end bearing of the connecting rod, and the connecting rod bolt (or screw), etc. It bears the action of the gas force transmitted from the piston pin, its own swing and the reciprocating inertial force of the piston group. The magnitude and direction of these forces are periodically changing .
The structure and working principle of the connecting rod assembly
The connecting rod assembly mainly consists of the following parts:
The small end of the connecting rod : It is usually a thin-walled circular ring shape to reduce wear with the piston pin. A thin-walled bronze bushing is pressed into the small end hole.
Youdaoplaceholder0 connecting rod body : Long member, subjected to relatively large forces, with a cross-section usually in an I-shaped shape, which can not only ensure sufficient rigidity but also reduce weight.
The large end of the connecting rod : It is usually designed in a split form and is fastened to the connecting rod cover through bolts or studs, providing sufficient rigidity and lightness.
Youdaoplaceholder0 connecting rod bolt : It bears alternating loads and is usually made of high-quality alloy steel, undergoing quenching and tempering, thread rolling and surface anti-rust treatment .
The damage forms and maintenance methods of connecting rod assemblies
The common damage forms of connecting rod assemblies include fatigue fracture and excessive deformation. Fatigue fracture usually occurs in the high-stress areas of the connecting rod. Insufficient stiffness can cause the connecting rod to bend and deform the big end out of round, which in turn leads to wear of other components. To ensure the normal operation of the engine, the connecting rod must have high strength and fatigue resistance, as well as sufficient rigidity and toughness .
The causes of automotive connecting rod assembly failure mainly include design defects, manufacturing defects, fatigue fracture, abnormal load and poor lubrication, etc. Design flaws may be caused by improper material selection, inappropriate dimensions or unreasonable structures. Manufacturing defects such as pores, cracks, and overburning can affect the strength and durability of the connecting rod. The connecting rod is subjected to repeated stress during operation, and long-term use can lead to fatigue fracture. Abnormal loads such as overloading and sudden acceleration will increase the burden on the connecting rod. Poor lubrication can lead to wear and damage of the connecting rod .
Symptoms of faults in the automotive connecting rod assembly include decreased power, abnormal noise, shaking, increased fuel consumption, and difficulty in starting, etc. Severe damage to the connecting rod may cause the vehicle to lose control of operation and lead to traffic accidents. For instance, a damaged engine connecting rod can affect power output, cause abnormal noises and vibrations during operation, increase fuel consumption, and even make starting difficult .
The function of the automotive connecting rod assembly is to connect the left and right wheel suspensions, maintain the balance of the vehicle body, enhance vehicle rigidity, prevent roll, improve handling stability, and transmit and reduce vibrations. The condition of the connecting rod assembly directly affects the driving stability and driving experience of the vehicle .
Maintenance suggestions for the automotive connecting rod assembly include regularly checking the tightness of the connecting rod bolts to ensure there is no gap between the connecting rod head and the crankshaft journal; Check the wear condition of the connecting rod journal and the piston pin hole, and replace the severely worn parts in time. Maintain good lubrication to prevent the connecting rod from being impacted by external forces. Regularly check the balance state of the connecting rod and perform dynamic balance correction .
