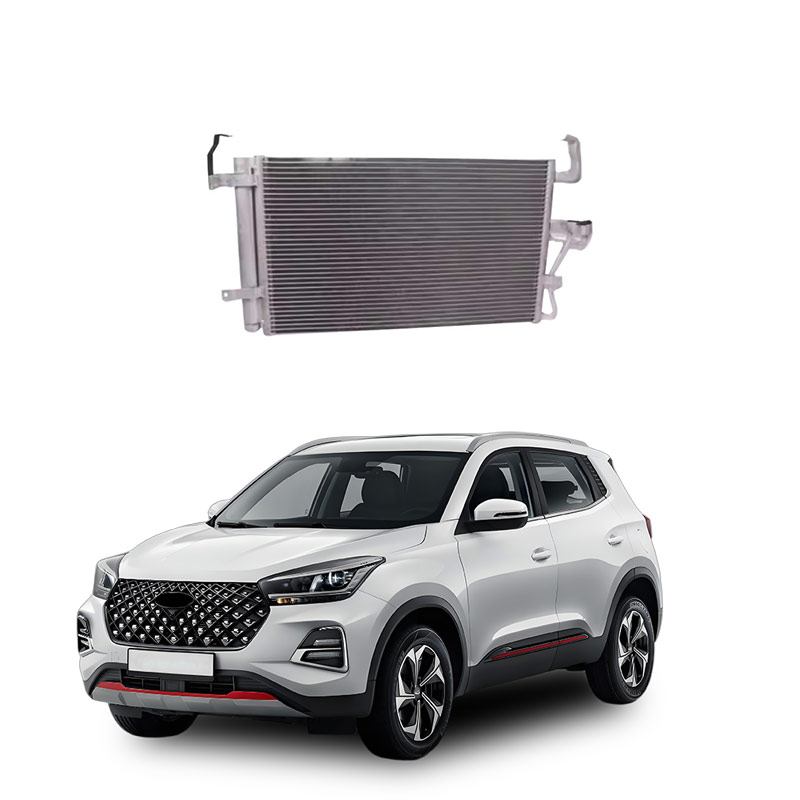

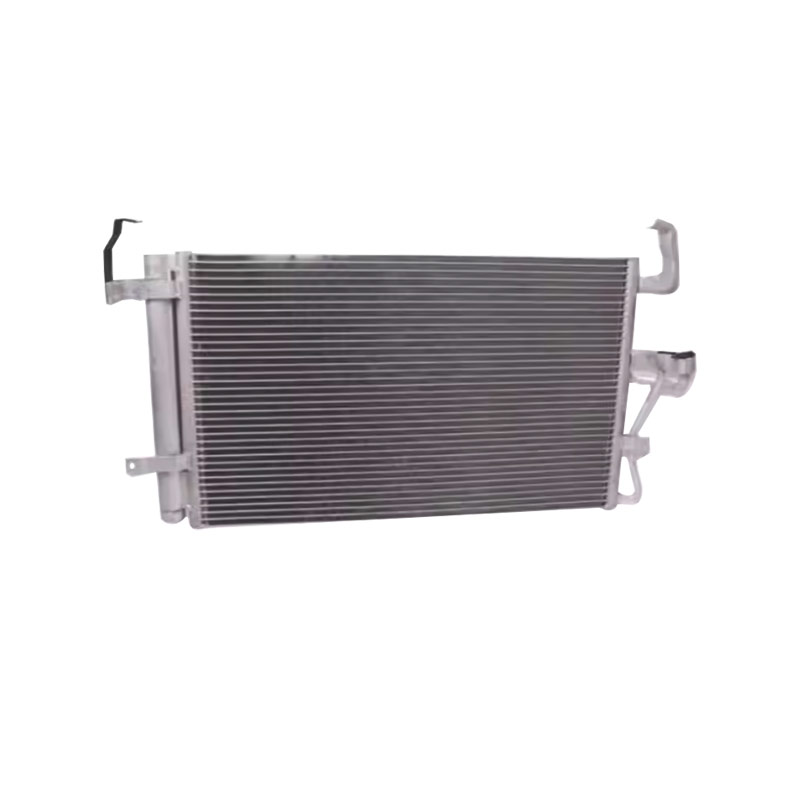

What is a car condenser
The automotive condenser is a key heat exchange component in the car's air conditioning system. Its main function is to dissipate and cool the high-temperature and high-pressure refrigerant vapor discharged by the compressor, causing it to condense into liquid high-pressure refrigerant, thereby achieving temperature regulation inside the vehicle.
Youdaoplaceholder0 Core functions and working principle
Youdaoplaceholder0 Core function : The condenser converts the refrigerant from gaseous to liquid state through a heat dissipation structure composed of copper tubes and aluminum sheets, releasing heat into the surrounding air.
Youdaoplaceholder0 workflow :
High-temperature and high-pressure refrigerant vapor enters the upper end of the condenser from the compressor.
The refrigerant temperature drops and liquefies through the heat dissipation of aluminum sheets and the assistance of fans.
The liquid refrigerant flows out from the lower end of the condenser and enters the expansion valve to continue the cycle.
Youdaoplaceholder0 Structure and classification
Youdaoplaceholder0 common structure :
Youdaoplaceholder0 tube and fin type : Traditional structure, composed of copper tubes and aluminum fins.
Youdaoplaceholder0 tube-belt type : the combination of flat tubes and wavy heat dissipation tapes is more efficient.
Youdaoplaceholder0 parallel flow : Multi-channel flat tube design, lightweight and high heat exchange efficiency.
Youdaoplaceholder0 classification of cooling media :
Air-cooled type (the most common, which uses outside air for heat dissipation).
Water-cooled type (using water as the medium, such as shell and tube type).
Evaporative type and spray type (less used in automobiles).
Youdaoplaceholder0 Installation and precautions
Youdaoplaceholder0 position : Usually installed in front of the water tank, it uses the airflow during movement to assist in heat dissipation.
Youdaoplaceholder0 Installation requirements : The refrigerant must enter from the top and exit from the bottom; otherwise, it may cause abnormal system pressure or even burst.
The main function of the automotive condenser is to cool and liquefy the high-temperature and high-pressure refrigerant gas discharged by the compressor into high-pressure liquid refrigerant, thereby achieving heat exchange and cooling effect in the automotive air conditioning system.
Youdaoplaceholder0 Core function
The automotive condenser is a key component in the automotive air conditioning system. Its core function is to convert the high-temperature and high-pressure gaseous refrigerant discharged by the compressor into high-pressure liquid refrigerant through heat dissipation and phase change processes. Its specific functions include:
Youdaoplaceholder0 heat dissipation and cooling : By exchanging heat with the ambient air, the heat carried by the refrigerant is released.
Youdaoplaceholder0 Liquefied refrigerant : The high-temperature and high-pressure gaseous refrigerant condenses into a liquid state after being cooled in the condenser, providing the necessary conditions for the subsequent refrigeration cycle.
Youdaoplaceholder0 Maintain system pressure balance : Ensure that the refrigerant completes phase change under high pressure to guarantee the efficient operation of the air conditioning system.
Youdaoplaceholder0 working principle
The operation of the condenser is based on the phase change process of the refrigerant:
The high-temperature and high-pressure gaseous refrigerant discharged from the compressor enters the condenser and undergoes heat exchange with the external air (either through natural convection or forced cooling by a fan) through the metal tube walls.
After the heat is dissipated, the refrigerant gradually cools and liquefies into a high-pressure liquid, and then flows to the expansion valve or the liquid storage dryer.
Youdaoplaceholder0 Classification and design features
According to the different cooling media, automotive condensers are mainly classified into the following types:
Youdaoplaceholder0 Air-cooled : It relies on air flow for heat dissipation, has a simple structure and is suitable for Freon refrigeration systems.
Youdaoplaceholder0 Water-cooled type (less common) : Absorbs heat through cooling water and requires the coordination of a water pump and a heat dissipation device.
Youdaoplaceholder0 evaporation-condensation type : It utilizes the evaporation effect of another refrigeration system to assist in cooling and is often used in complex refrigeration equipment.
