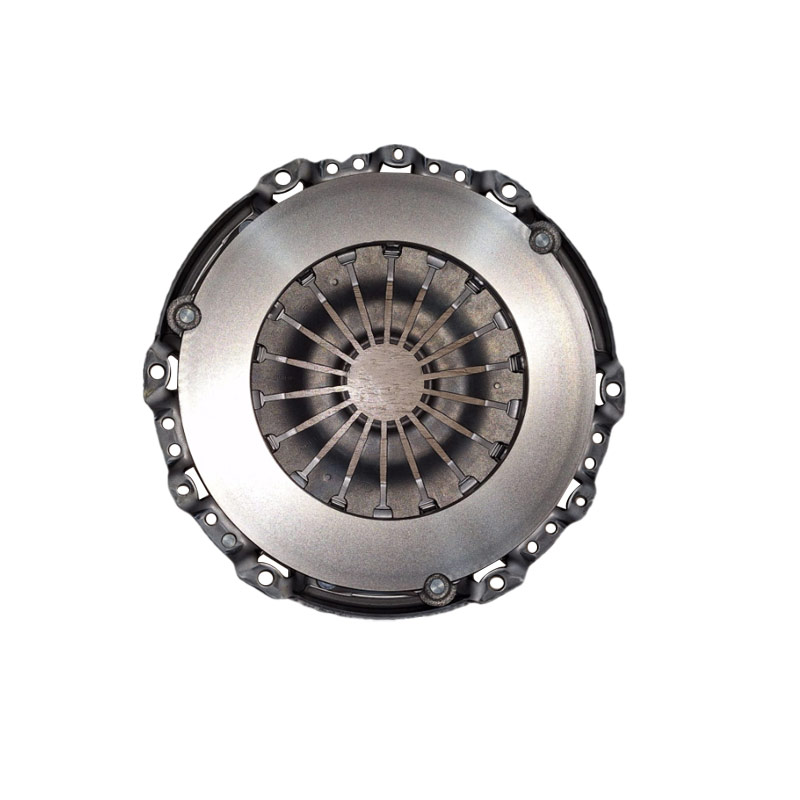

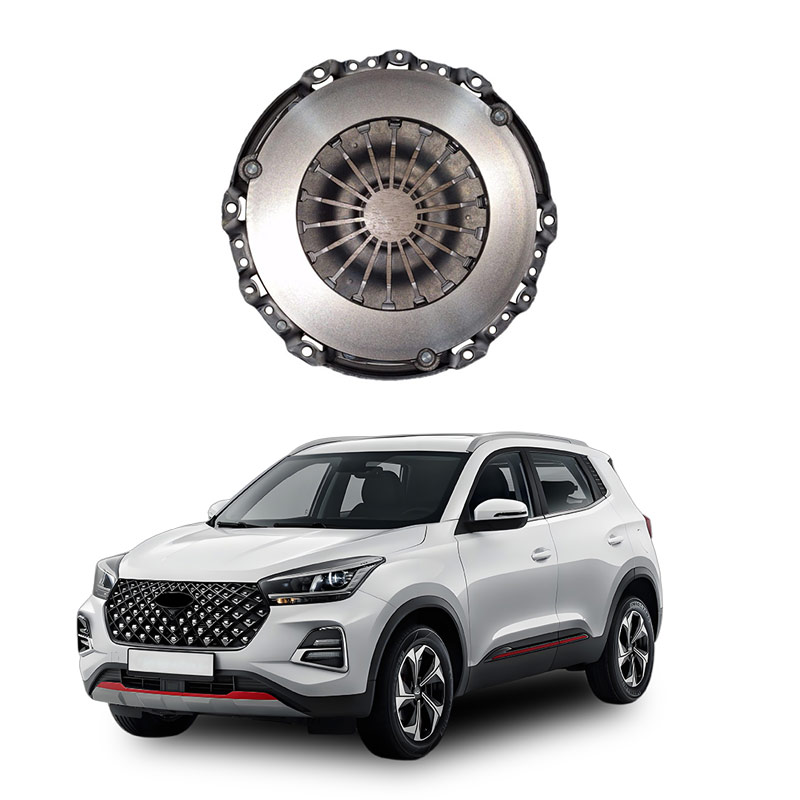

What does the automotive clutch cover assembly mean
Youdaoplaceholder0 The clutch cover assembly is an important part of the clutch system, located above the clutch assembly and tightly connected to the flywheel housing . Its main function is to protect the clutch assembly from the erosion of dust and moisture, and at the same time ensure that the clutch remains well lubricated during operation. In addition, the clutch cover is responsible for guiding the rotation direction of the clutch shaft so that it engages correctly with the flywheel and the rear gear .
Components of the clutch cover assembly
The clutch cover assembly is mainly composed of the following components:
Youdaoplaceholder0 Rivets : used to secure other parts.
Youdaoplaceholder0 Drive plate : Transmits torque.
Youdaoplaceholder0 Moisture-proof rivets : To prevent moisture from entering.
Youdaoplaceholder0 Support spring : Provides support.
Youdaoplaceholder0 Pressure plate : The base component for clamping the spring and separating the lever mechanism.
Youdaoplaceholder0 Pressure plate cover : Protects the pressure plate.
Youdaoplaceholder0 Diaphragm spring : Provides elastic force to enable the clutch to engage and disengage smoothly .
The function of the clutch cover assembly
Youdaoplaceholder0 Protective effect : Prevents dust and moisture from entering the clutch assembly and extends its service life.
Youdaoplaceholder0 Lubrication : To ensure that the clutch remains well lubricated during operation.
Youdaoplaceholder0 Direction of rotation guidance : Guide the direction of rotation of the clutch shaft to ensure proper engagement with the flywheel and rear gear .
Youdaoplaceholder0 The main functions of the clutch cover assembly include the following aspects :
Youdaoplaceholder0 Protect the internal parts of the clutch : The clutch cover can protect the friction plates, pressure plates and other parts inside the clutch from external dust and debris, extending their service life .
Youdaoplaceholder0 Stabilize clutch working state : The clutch cover adjusts the tension of the clutch spring to ensure that the clutch can work smoothly when engaged and disengaged, reducing shock and vibration .
Youdaoplaceholder0 Provide appropriate pressure : The clutch cover achieves smooth power transmission by applying appropriate pressure to ensure the contact pressure between the clutch friction plate and the pressure plate .
Youdaoplaceholder0 Accommodates and supports components such as the pressure plate and clutch disc : The clutch cover assembly accommodates and supports components such as the pressure plate and clutch disc to ensure the coordinated operation of all parts during power transmission .
Youdaoplaceholder0 Structure and design requirements for clutch cover assembly :
Youdaoplaceholder0 Rigidity requirements : The clutch cover should have sufficient rigidity to avoid affecting the working characteristics of the clutch, to prevent excessive disengagement stroke during operation or to reduce the lift of the pressure plate, so as to ensure that the friction surfaces can be completely disengaged .
Youdaoplaceholder0 Alignment method : The clutch cover must be precisely aligned with the flywheel to maintain the balance and stable operation of the assembly. Alignment methods can be achieved by using locating pins, locating bolts, or the centerline method .
Youdaoplaceholder0 Material selection : The clutch covers of medium and light-duty trucks and cars are mostly made of low-carbon steel plates such as 08F, 08Al, 08 steel, etc., while heavy-duty trucks often use cast iron or aluminum alloy die-castings .
Through these functions and design requirements, the clutch cover assembly plays a crucial role in the automotive transmission system.
Youdaoplaceholder0 The main causes of clutch cover assembly failure include :
Youdaoplaceholder0 The connection between the clutch cover and the flywheel is loose : This will cause the clamping force to weaken and affect the normal operation of the clutch .
Youdaoplaceholder0 There is severe oil contamination between the release bearing sleeve and the guide tube : This will cause the release bearing to fail to return to its original position, affecting the disengagement effect of the clutch .
Youdaoplaceholder0 The surface of the clutch plate is eroded, hardened or contaminated with oil : This reduces the friction of the clutch, causing slippage .
Youdaoplaceholder0 The pressure spring is weak or broken, and the diaphragm spring is weak or cracked : This will cause a decrease in clamping force and affect the normal operation of the clutch .
Youdaoplaceholder0 Fault phenomena include :
Youdaoplaceholder0 Clutch slippage : When a vehicle starts or accelerates, the engine speed increases but the vehicle speed increases slowly, or even a burnt smell or smoke appears .
Youdaoplaceholder0 Incomplete disengagement : Difficulty in shifting gears or gear clashing sounds when shifting gears after the clutch pedal is fully depressed .
Youdaoplaceholder0 Start shaking : The vehicle shows obvious shaking when starting, affecting the smoothness of driving .
Youdaoplaceholder0 Abnormal noise : The clutch makes an abnormal sound when engaged or disengaged .
Youdaoplaceholder0 Maintenance procedures and methods :
Youdaoplaceholder0 Check the free travel of the clutch pedal : If not appropriate, adjust. Hydraulic clutches are mostly self-adjusting, special attention should be paid to .
Youdaoplaceholder0 Remove the transmission, disassemble the clutch Check for oil stains on the clutch plate, release bearing sleeve and conduit, and clean them in time .
Youdaoplaceholder0 Check and adjust the connection between the clutch cover and the flywheel Make sure the connection is secure and tighten if necessary .
Youdaoplaceholder0 Replace worn or damaged parts : such as clutch plates, pressure plates, springs, etc. Ensure that the replaced parts meet the standards and restore the clutch to normal operation .
