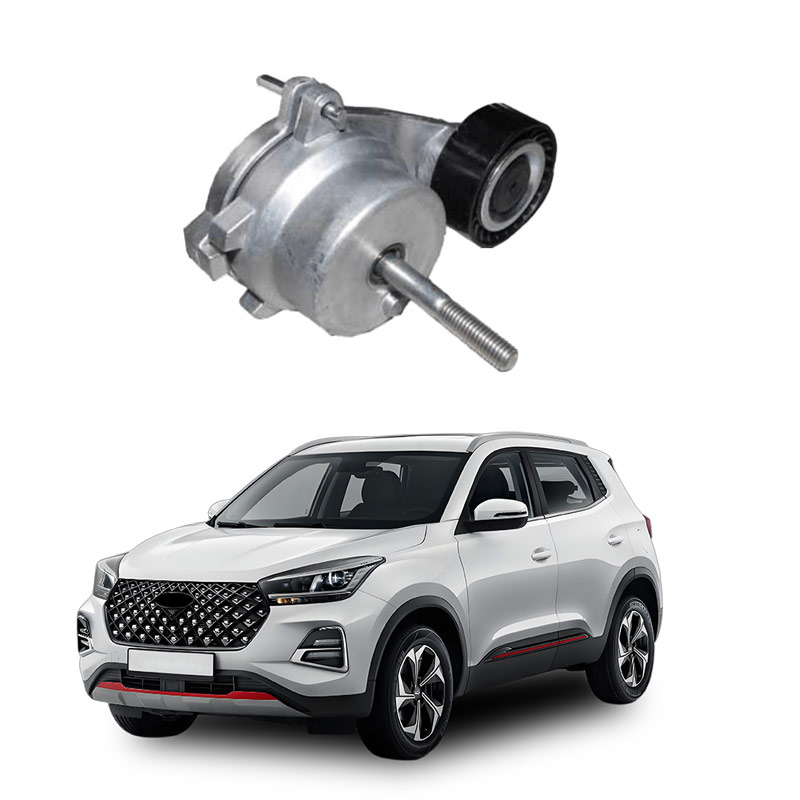

What is the automotive belt tensioner pulley assembly
Youdaoplaceholder0 Automobile belt tensioner pulley assembly is an important component for adjusting the tightness of the belt, reducing vibration during belt operation and preventing belt slippage. It MAINLY CONSISTS of fixed housing, tensioning arm, wheel body, torsion spring, rolling bearing and spring busHING, ETC CAN automatically adjust the tension according to the tightness of the belt to ensure the stable safety and reliability of the transmission system .
Structure and working principle
The tensioning wheel assembly includes the tensioning wheel and the tensioning wheel bearing. The tensioner pulley generates a force to tighten the belt through its internal spring or hydraulic mechanism, enabling the belt to be pressed against the working pulley at an appropriate pressure. This can not only reduce the vibration of the belt when running, but also prevent the belt from slipping, ensure the normal stable operation of the drive system .
Replacement timing and maintenance suggestions
When replacing the timing belt, it is usually recommended to replace the tensioner pulley at the same time, as their life cycles are similar. The designed service life of the timing belt is usually around 60,000 to 80,000 kilometers, and the designed service life of the tensioner pulley is also within this range. If only the belt is replaced without the tensioner pulley, it may cause the belt to loosen or even break, affecting the normal operation of the vehicle .
Common Problems and Solutions
During use, the tensioning wheel may encounter problems such as oil leakage and cracks. These problems may cause the belt to loosen or slip, affecting the stability of the transmission system. Timely detection and replacement of faulty tensioner wheels can prevent bigger glitches .
Youdaoplaceholder0 The main function of the car belt tensioner pulley assembly is to adjust the tension of the belt to ensure the stable operation of the drive system.
Specific function
Youdaoplaceholder0 Adjusting belt tension : The tensioner pulley generates a force through springs or oil pressure to firmly press the belt against the working pulley, preventing the belt from slipping and ensuring smooth and efficient power transmission .
Youdaoplaceholder0 Keep the belt tension appropriate : The tensioner pulley can automatically adjust the tension according to the tightness of the belt to ensure that the belt is always kept within the appropriate tension range, avoiding damage to the belt or poor power transmission due to being too tight or too loose .
Youdaoplaceholder0 Reduce friction and drag : The bearings in the tensioning wheel ensure smooth rotation of the hub, reduce friction and drag, and improve transmission efficiency .
Youdaoplaceholder0 Extend belt life : By maintaining appropriate tension and reducing the load on the belt, extend the service life of the belt .
Structure and working principle
The tensioning wheel is mainly composed of components such as the wheel hub, bearings, and tensioning arm. Hub fixes the belt and drives it to run, bearing ensures hub rotates smoothly, tensioning arm automatically adjusts tension according to the tightness of the belt .
In addition, the tensioner pulley works together with components such as torsion springs, rolling bearings and spring bushings to ensure that the tension of the belt is always within the appropriate range .
Youdaoplaceholder0 Manifestations of faults in automobile belt tensioner pulley assembly mainly include the following situations:
Youdaoplaceholder0 Noise and abnormal noise : When the tensioner wheel is damaged, the vehicle will produce obvious noise when accelerating, especially when the engine speed reaches 1500 RPM. In addition, it makes a "squeaking" sound when it starts up .
Youdaoplaceholder0 Belt skipping and engine failure : A damaged tensioner pulley can cause the timing belt to skip, which in turn affects the engine's timing system, resulting in ignition and valve timing disorder, engine shaking, and even failure to start .
Youdaoplaceholder0 Loose or broken belt : Damage to the tensioner pulley can cause the belt to fail to operate properly, resulting in loose or broken conditions. In severe cases, it may lead to valve ejalling or even the failure of the valve system .
Youdaoplaceholder0 Engine performance decline : Damage to the tensioner wheel can affect engine performance, causing symptoms such as weak acceleration, increased fuel consumption, and easy stalling .
Youdaoplaceholder0 Causes of faults in automobile belt tensioner pulley assembly mainly include the following points:
Youdaoplaceholder0 Excessive or insufficient tension of the belt : If the tension of the belt exceeds the normal range, it will exert great pressure on the tensioner pulley, causing accelerated wear of its internal components .
Youdaoplaceholder0 Tensioning wheel quality issues : Rough manufacturing process, insufficient material strength or inadequate processing accuracy will all affect the durability of the tensioning wheel .
Youdaoplaceholder0 Environmental factors : High temperature, high humidity or dusty environments can accelerate the aging of the rubber parts of the tensioner pulley and the corrosion or wear of the metal parts .
Youdaoplaceholder0 Driving habits : Bad driving habits such as sudden acceleration and sudden braking can increase the burden on the transmission system, causing the tensioner pulley to wear out prematurely.
Youdaoplaceholder0 Prevention and solutions :
Youdaoplaceholder0 Regular inspection and maintenance : Regularly check the tension and wear of the belt, and adjust or replace damaged parts in time.
Youdaoplaceholder0 Maintain good driving habits : Avoid frequent sudden acceleration and braking to reduce impact on the transmission system.
Youdaoplaceholder0 Suitable environment : Try to avoid driving in bad conditions and reduce the influence of environmental factors on the tensioner wheel.
Youdaoplaceholder0 Choose high-quality accessories : Use high-quality belts and tensioner pulleys to ensure durability and reliability.
