What is the rear balance bar of a car

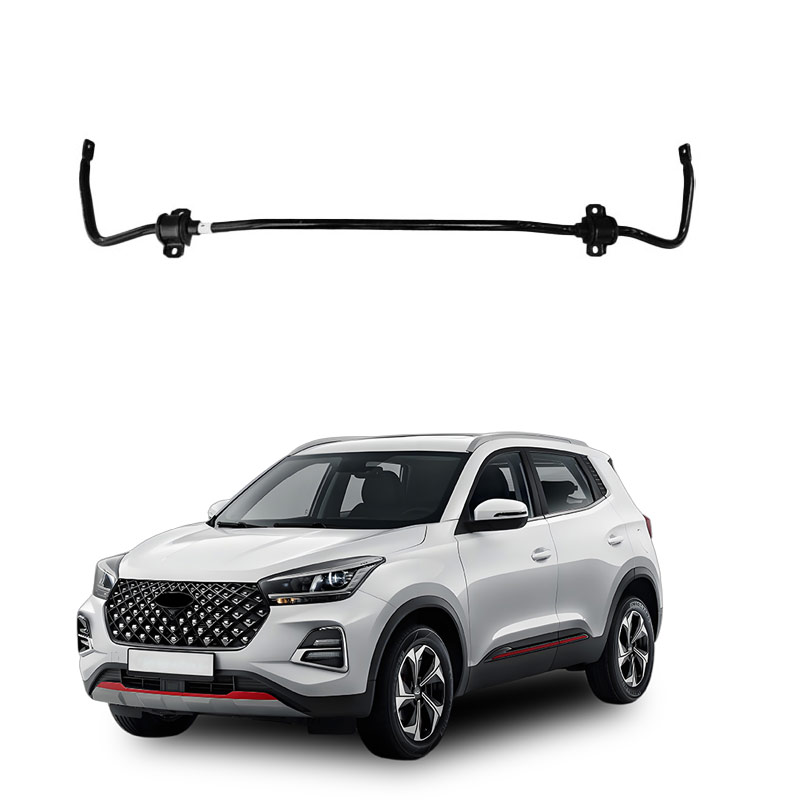

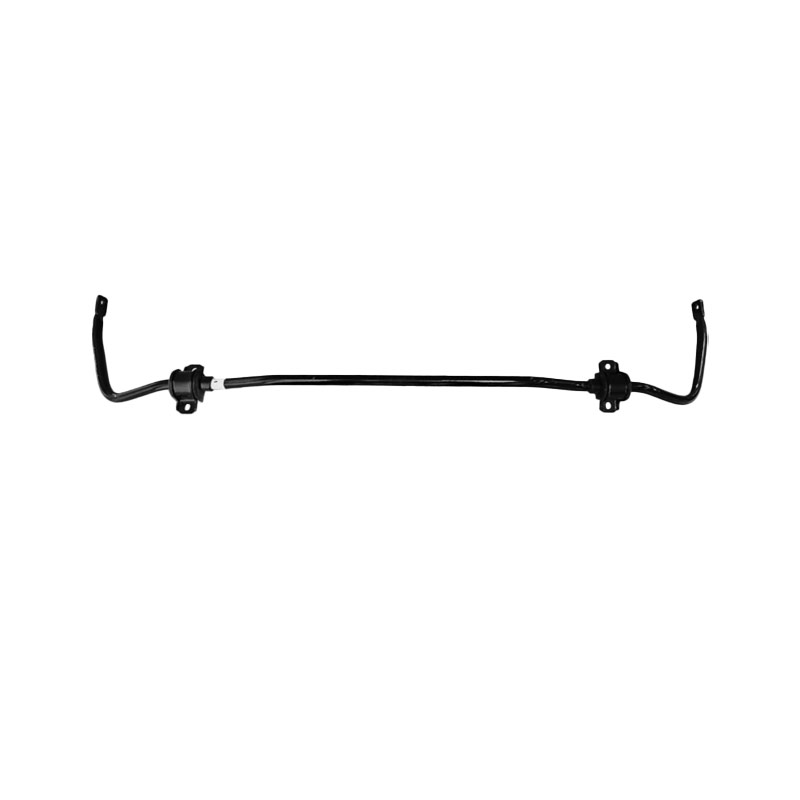

The rear balance bar , also known as the anti-roll bar, is an important part of the car suspension system, mainly installed on the gold beam of the chassis, and connected to the suspension on the left and right sides of the vehicle through a string of plums (small balance bars). Its main function is to reduce vehicle roll when cornering or on bumpy roads, improve driving stability and handling .
Working principle
When a vehicle is cornering or driving on an uneven road, the body of the vehicle will roll sideways. Anti-roll bar reduces the difference in height and level of the suspension on both sides by its own elastic deformation, thereby reducing body roll and improving driving stability .
Specifically, when the vehicle turns, the outer suspension is compressed, the inner suspension is lifted, and the anti-roll bar adjusts the height level of the side suspension by deformation to reduce roll .
Type and material
The material of the balance bar is usually selected from high-strength materials, such as 7005 civil aviation aluminum, aluminum-magnesium alloy or spring steel, etc. These materials are both lightweight and provide sufficient hardness and toughness to meet the needs of vehicles in different road conditions .
Cause and impact of damage
The balance bar is generally not prone to damage, but the plum skewers and rubber sleeves that go with it may get damaged due to long-term use, leading to problems such as abnormal noises. Damaged plum skewers and rubber sleeves will affect the normal operation of the anti-roll bar, thereby affecting the handling and stability of the vehicle .
Youdaoplaceholder0 Symptoms and effects of rear balance bar failure in a car mainly include the following aspects:
Youdaoplaceholder0 Jolting noise : When the rubber sleeve of the rear balance bar is damaged, the vehicle will make a "clunk clunk" or "creaking" noise when passing over speed bumps or bumpy roads, especially more obvious in low winter temperatures .
Youdaoplaceholder0 Loose chassis : Failure of the balance bar rubber sleeve weakens the support of the balance bar for the vehicle body, resulting in obvious roll when cornering, loose chassis on bumpy roads and reduced driving confidence .
Youdaoplaceholder0 Deviation and longer braking distance : Wear of the rubber sleeves may cause misalignment of the four wheels, resulting in the vehicle veering off course or even an abnormally longer braking distance, posing a safety hazard .
Youdaoplaceholder0 Uneven tire wear : Due to uneven suspension force, the tread wear on both sides of the tire is significantly different. If not repaired for a long time, it may cause a blowout .
Youdaoplaceholder0 Damage to the shock absorption system : Problems with the balance bar will accelerate the aging of surrounding components (such as shock absorbers, ball joints) and increase maintenance costs .
Youdaoplaceholder0 Steering wheel shaking : A damaged rubber sleeve loses its buffering effect, causing the steering wheel to transmit abnormal vibrations during driving, especially at high speeds .
Youdaoplaceholder0 Increased roll when cornering : The balance bar loses its flexible connection, which significantly increases the roll of the vehicle when cornering, affecting the driving experience and safety .
Youdaoplaceholder0 Suspension system damage : Problems with the balance bar can cause abnormal stress on suspension system components. If left untreated for a long time, it may result in deformation of suspension arms, oil leakage from shock absorbers, and other issues .
The role and importance of the rear balance bar
The rear balance bar plays a very important role in a car, mainly reflected in the following aspects:
Youdaoplaceholder0 Improve handling and stability : The rear balance bar can prevent the body from twisting, suppress rollovers, control the body balance and improve the stability of the vehicle when turning .
Youdaoplaceholder0 Protect the chassis and components : By balancing the torque of the four wheels, it reduces the additional stress on the components of the chassis, extends the service life, and prevents problems such as positioning displacement .
Youdaoplaceholder0 Improve comfort : Reduce bumps on uneven roads and enhance ride comfort .
Fault detection and maintenance suggestions
When a malfunction of the rear balance bar is detected, it should be inspected and repaired in a timely manner. It is recommended to GO to a professional 4S STORE or REPAIR shop for inspection AND REPAIR, non-professional individual car owner may not be able to solve THESE problems .
Replacing damaged balance bar rubber sleeves is an effective solution to these problems to ensure driving safety and experience .
