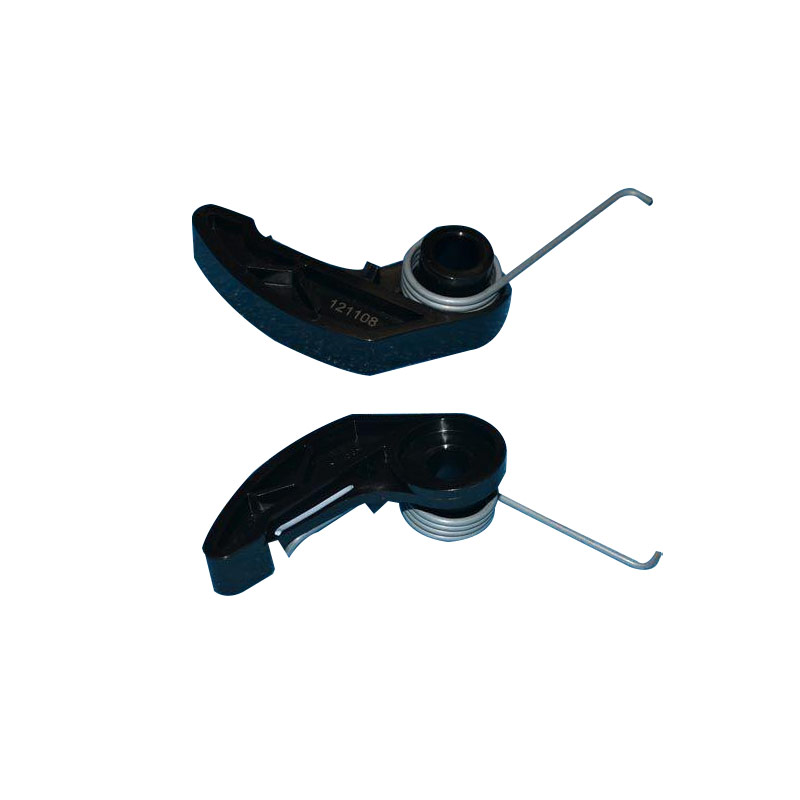

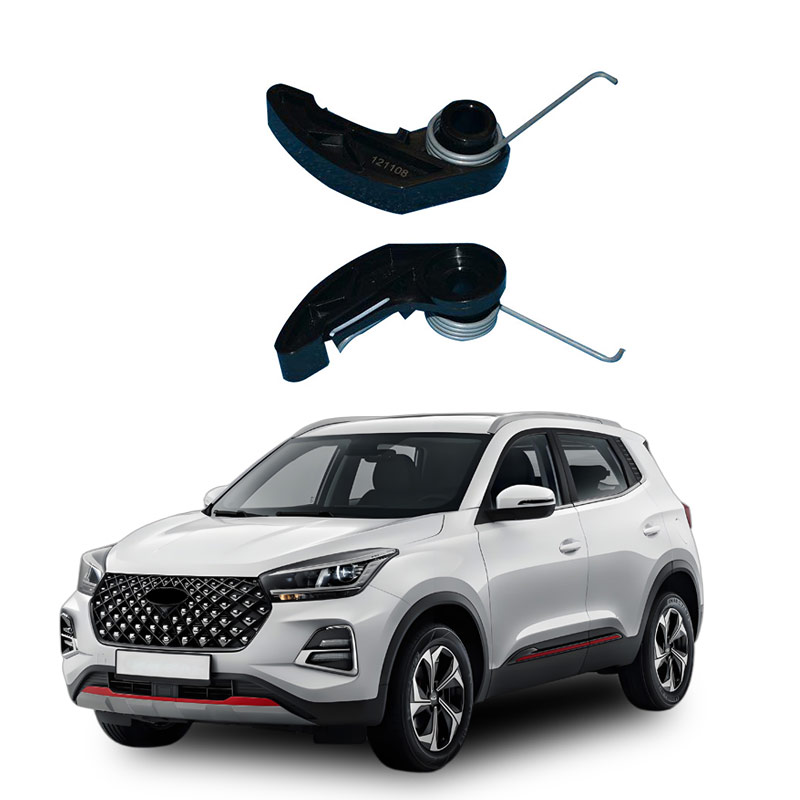

What does the oil pump movable guide rail assembly mean
"Oil pump movable guide rail assembly" is not a standard term and there may be confusion in its expression. The following is the analysis of the relevant components:
Components of the oil pump
The oil pump is mainly composed of components such as the drive shaft, driving gear, driven gear, and pressure-limiting valve. Its core function is to pressurize the engine oil in the oil pan and deliver it to various engine parts for lubrication.
Components related to guide rails
Youdaoplaceholder0 fuel guide rail assembly
Responsible for the fuel supply, filtration, distribution and pressure regulation of the fuel system, including components such as fuel pumps, filters, fuel injectors, fuel rails and fuel pressure regulators.
Youdaoplaceholder0 linear guide rail (slide rail)
It is used for linear motion guidance in industrial equipment, machine tools, etc. It guides moving parts through grooves or ridges, featuring high load-bearing capacity and motion accuracy.
Possible points of confusion
If the issue involves the fuel system, it may refer to the fuel guide rail assembly. If it involves the engine lubrication system, it points to the oil pump assembly. Further confirmation is required in combination with the specific vehicle model or mechanical structure.
The functions of the oil pump movable guide rail assembly mainly include the following two aspects:
Ensure the stability of the engine oil pressure
By increasing the oil pressure, the oil pump from the oil pan is delivered to each lubrication component to ensure that all friction points of the engine receive continuous and stable lubrication.
Guide the flow path of engine oil
The engine oil is distributed to different oil channels through the guide rail structure to avoid disordered oil flow and ensure lubrication efficiency.
Note: The search results do not explicitly mention the specific structural details of the "movable guide rail assembly", but based on the working principle of the oil pump and the general functions of the guide rail, its role can be inferred.
The damage of the oil pump movable guide rail assembly usually requires the replacement of the assembly components. The specific operation is as follows:
Replacement steps
Youdaoplaceholder0 disassemble the old parts
Park the vehicle on a flat road and turn off the engine. Refer to the maintenance manual to locate the oil pump position (usually at the top or bottom of the engine).
Use tools to remove the connecting pipes, hoses and fixing bolts, and take out the damaged oil pump assembly.
Youdaoplaceholder0 install the new component
Clean the installation surface to ensure that the new assembly matches the original position.
Connect the pipes, fix the bolts and restart the engine for testing.
Precautions
If the vehicle is still under warranty, you can consult the 4S store to see if they support the replacement of the entire assembly.
After replacement, it is necessary to check whether the oil pressure is normal to avoid lubrication system failure caused by improper installation.
It is recommended to contact professional maintenance personnel for operation to ensure the accuracy of replacement and subsequent maintenance.
The function of the oil pump in the lubrication system: The function of the oil pump is to increase the oil pressure to a certain level and then force it to be delivered to the moving surfaces of each part of the engine. The structural forms of oil pumps can be classified into two types: gear type and rotor type. Gear-type oil pumps are further classified into internal gear type and external gear type. Generally, the latter is referred to as a gear-type oil pump.
A component used to increase the oil pressure and ensure a certain amount of oil, forcibly supplying oil to each friction surface. Gear-type and rotor-type oil pumps are widely used in internal combustion engines. Gear-type oil pumps have a simple structure, are easy to process, reliable in operation, have a long service life, and can pump oil at high pressure, thus being widely used. Rotor pumps have complex rotor shapes and are mostly pressed by powder metallurgy. This type of pump has the same advantages as gear pumps, but it is compact in structure and small in size.
The gear-type oil pump is characterized by reliable operation, simple structure, convenient manufacturing and high oil pumping pressure, so it has been widely adopted.
When the engine is running, the drive gear on the camshaft drives the transmission gear of the oil pump, causing the driving gear fixed on the driving gear shaft to rotate, thereby driving the driven gear to rotate in the opposite direction, and sending the engine oil from the oil inlet chamber along the tooth gap and the pump wall to the oil outlet chamber. In this way, a low pressure is formed at the oil inlet chamber, generating suction that draws the engine oil in the oil pan into the oil chamber. As the driving and driven gears keep rotating, the engine oil is constantly being pressed to the required parts.
Application scenarios
The application of oil pumps in internal combustion engines is becoming increasingly widespread. Meanwhile, it also plays a certain role in engineering fields such as semiconductors, solar energy, and LCD. With the development of processing technology, cycloidal rotor pumps, which are used as oil pumps for automobiles, have been applied to sewing machines, especially for some models with fully enclosed automatic lubrication systems, such as overlock machines and overlock machines.
