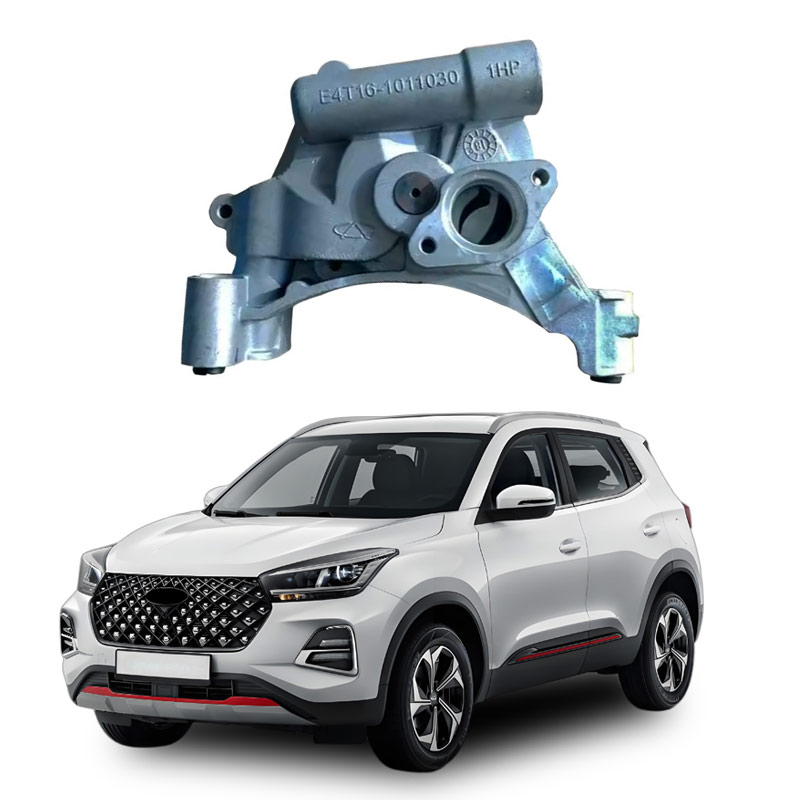

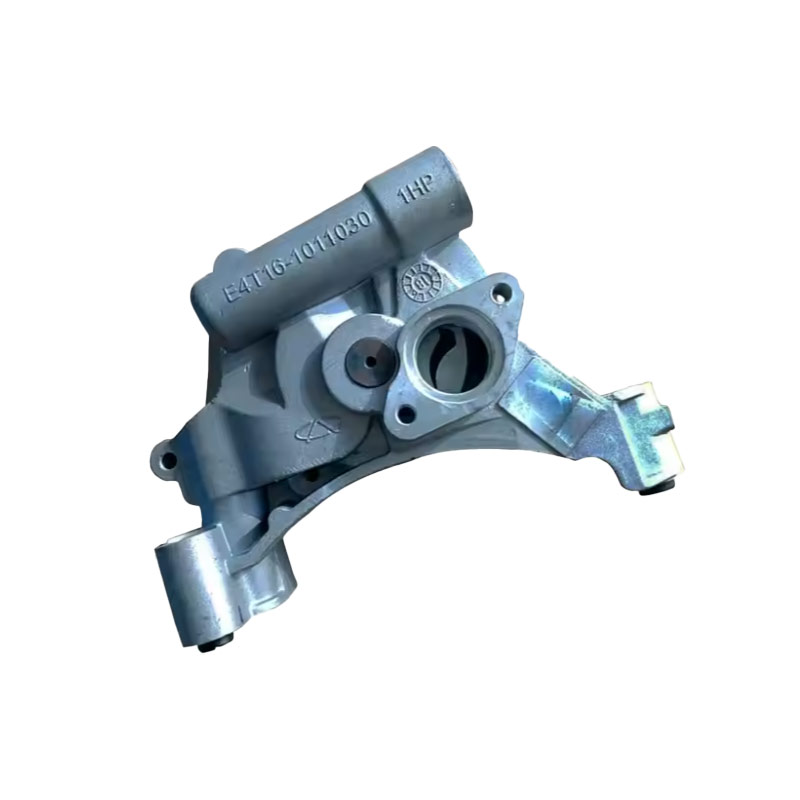

What is the oil pump assembly
The oil pump assembly is the core component in the engine responsible for delivering engine oil. It mainly consists of the housing, end cover, oil pump drive shaft, gear set and pressure-limiting valve, etc. Its working principle is that the drive shaft drives the gear set to rotate, drawing in the engine oil from the oil pan and pressurizing it to various lubrication points of the engine to ensure the normal operation of the lubrication system.
Core function
The oil pump assembly maintains the pressure stability of the engine lubrication system through the oil pumping action, preventing component wear or overheating caused by insufficient oil pressure. Its working process consists of two stages: oil suction and oil pressure.
Youdaoplaceholder0 Oil suction stage : The drive shaft rotates the gear set, generating centrifugal force to draw the engine oil from the oil pan into the pump chamber.
Youdaoplaceholder0 Oil pressure stage : The gear set pressurizes the engine oil and then delivers it through the oil passage to each lubrication point of the engine.
Key components
Youdaoplaceholder0 Housing and end cover : provide structural support and prevent oil leakage;
Youdaoplaceholder0 Drive shaft and gear set : The oil pumping function is achieved through meshing transmission;
Youdaoplaceholder0 Pressure limiting valve : Controls the oil pressure to not exceed the set value and protects the system safety.
The oil pump assembly is the core component of the engine lubrication system. Its main function is to transport engine oil from the oil pan to the friction parts of the engine through pressurization, ensuring the normal operation of lubrication, cooling and cleaning functions .
Youdaoplaceholder0 Core function
Youdaoplaceholder0 pressure circulation lubrication : The oil pump overcomes the resistance of the oil circuit through mechanical supercharging (the pressure is usually 150-600 kpa), allowing the engine oil to move from the oil pan through the filter to the high-speed moving parts such as the crankshaft and piston, forming an oil film to reduce friction.
Youdaoplaceholder0 Cooling and cleaning assistance : The circulating engine oil takes away the heat generated by friction and filters out impurities such as metal shavings through the filter, maintaining the cleanliness of the lubrication system.
Youdaoplaceholder0 Additional features
Youdaoplaceholder0 Pressure limiting protection : The integrated pressure limiting valve (relief valve) releases pressure when the oil pressure is too high to prevent pipeline damage.
Youdaoplaceholder0 Oil storage : Some designs can temporarily store oil to meet short-term lubrication needs.
The failure of the oil pump assembly is usually manifested as symptoms such as difficult starting, weak acceleration, abnormal noise and vibration. The specific symptoms are closely related to the cause of the failure.
Common symptoms
Youdaoplaceholder0 Difficult to start : It requires multiple ignitions to start, accompanied by a "putt-putt" sound, which is mostly caused by insufficient oil supply pressure from the oil pump (normal oil pressure 2.5-3.5MPa).
Youdaoplaceholder0 Weak acceleration : A jolt occurs during sudden acceleration, and the vehicle's power significantly decreases, especially when climbing slopes or carrying heavy loads.
Youdaoplaceholder0 Abnormal noise : A continuous "buzzing" sound at the fuel tank, more pronounced at idle speed, may be caused by bearing wear or impeller deformation.
Youdaoplaceholder0 Abnormal fuel consumption : The fuel consumption suddenly increases by 1-2 liters per 100 kilometers. After ruling out factors such as tire pressure, it is necessary to focus on checking the sealing performance of the fuel pump.
The fault light is on : the ECU detects an abnormal fuel supply and triggers the warning light.
Cause of malfunction
Youdaoplaceholder0 Mechanical wear : Aging and cracking of the diaphragm inside the oil pump lead to a decrease in fuel supply capacity (commonly seen after 60,000 kilometers).
Youdaoplaceholder0 filter clogging : Impurities clogging the filter forces the oil pump to work under overload, accelerating wear.
Youdaoplaceholder0 Abnormal oil circuit pressure : When the oil pressure is lower than 1.8MPa, maintenance is necessary; otherwise, it may cause engine damage.
Youdaoplaceholder0 solenoid valve fault : Oxidation of relay contacts can cause short circuits or open circuits, leading to fuel supply interruption.
Emergency response
Tap the oil pump housing gently to test if it works
Use the OBD diagnostic instrument to read the fault code
Check the oil pressure gauge (it should reach 3.0MPa within 3 seconds after startup)
Replace the damaged solenoid valve or diaphragm (original factory parts required)
It is recommended to replace the filter regularly (every 20,000 kilometers) and test the oil pressure to avoid using inferior fuel additives.
