What does the oil pressure switch mean

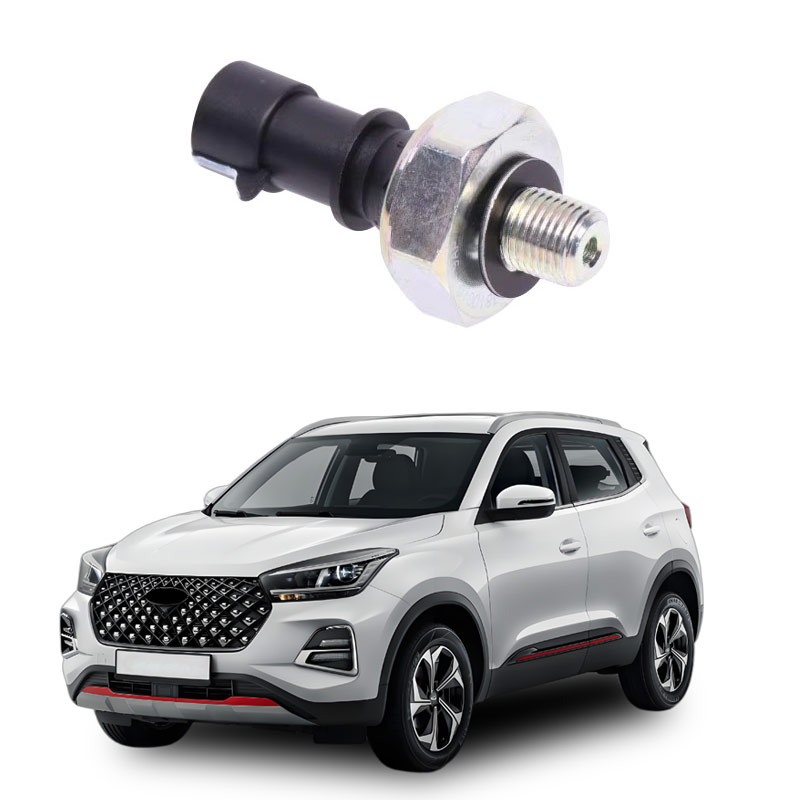

The oil pressure switch is a safety device in the engine lubrication system that monitors the oil pressure. It is mainly used to detect whether the oil pressure is abnormal and feed the signal back to the vehicle control system to trigger an alarm or protective action . Its core function lies in monitoring the oil circuit pressure through mechanical or electronic means. When the pressure is lower or higher than the preset value, it controls the indicator lights on the dashboard, the buzzer to sound an alarm, and even the engine to automatically shut off.
Youdaoplaceholder0 Definition and function of the oil pressure switch
The Oil Pressure Switch is a key component of the engine lubrication system, installed on the main oil passage or cylinder block. Its functions can be classified into three categories:
Youdaoplaceholder0 Pressure monitoring : Real-time detection of engine oil pressure to ensure it is within a safe range (typically set at 30 to 50kPa or 3.5 to 11psi);
Youdaoplaceholder0 Signal feedback : Transmits the pressure status to the ECU or instrument panel via electrical signals, lighting up the warning light or triggering the buzzer to sound the alarm;
Youdaoplaceholder0 System protection : Some designs also incorporate the function of a pressure-limiting valve to prevent excessive pressure from damaging the oil circuit (such as limiting the maximum pressure to 1.5 to 3.3bar).
Youdaoplaceholder0 Structure and working principle

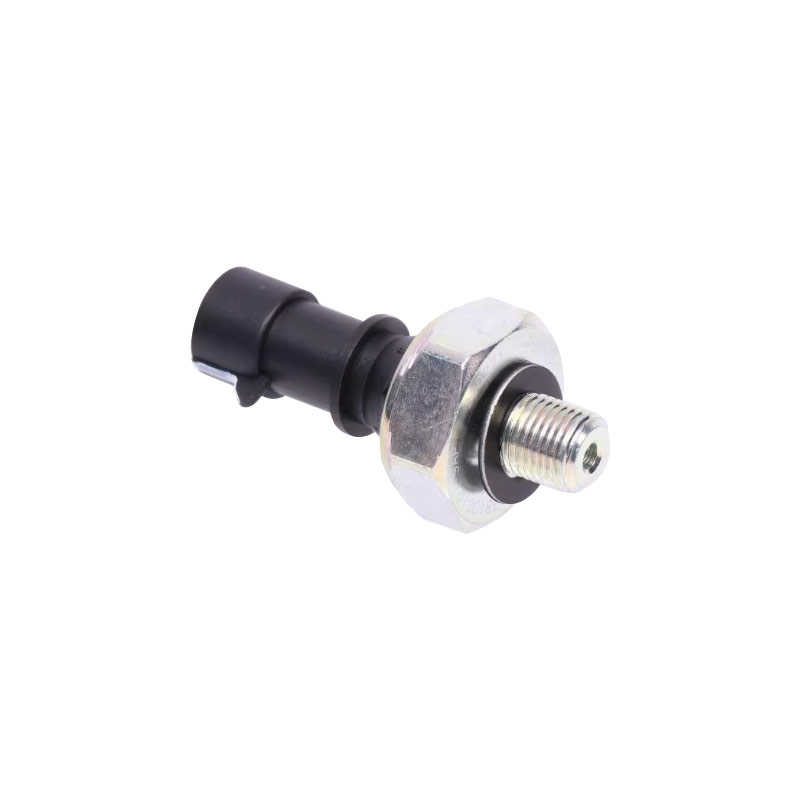

Its core structure includes components such as diaphragms, springs, and contacts, and its working principle is as follows:
Youdaoplaceholder0 low/no oil pressure state : The spring pushes the diaphragm to close the contacts, and the circuit conducts to trigger an alarm.
Youdaoplaceholder0 Normal oil pressure state : The oil pressure drives the diaphragm to overcome the resistance of the spring, the contact opens, and the alarm is cleared.
Youdaoplaceholder0 Special design : Some switches adopt normally open contacts (closed when the oil pressure meets the standard) or integrate variable resistors to achieve precise transmission of pressure data.
Youdaoplaceholder0 typical application scenarios
Youdaoplaceholder0 diesel generator : as an engine protection device, it prevents mechanical failure caused by low oil pressure;
Youdaoplaceholder0 Passenger cars (such as Buick Excelle, Audi Q5) : Abnormal pressure is judged by the change in the contact state of the metal plate;
Youdaoplaceholder0 Electronic control system linkage : It works in coordination with the ECU to achieve active protection measures such as automatic shutdown.
The core function of the oil pressure switch is to monitor the engine oil pressure. When the pressure is abnormal, it triggers an alarm or protection mechanism to ensure the safe operation of the engine.
Youdaoplaceholder0 Core function
Youdaoplaceholder0 Pressure monitoring and alarm : The oil pressure switch detects the oil pressure in the main oil passage of the engine in real time through mechanical or electronic sensors. When the pressure drops below the set value (typically 30 to 50kPa), the switch contacts close, triggering the warning light on the dashboard or the buzzer to sound an alarm, prompting the driver to check the oil system.
Youdaoplaceholder0 Engine protection : In some models, the switch signal is transmitted to the ECU. If the pressure remains abnormally high (such as being too low after starting), the system may force the engine to shut off to prevent damage to the engine due to insufficient lubrication.
Youdaoplaceholder0 working principle
Youdaoplaceholder0 Mechanical switch : It utilizes a spring and diaphragm structure. At low pressure, the contacts close (ON), and when the pressure reaches the standard, the diaphragm pushes the spring to open the contacts (OFF).
Youdaoplaceholder0 electronic sensor : Converts pressure changes into electrical signals through variable resistors and outputs them to the oil pressure gauge or ECU.
Youdaoplaceholder0 Installation location and interlocking mechanism
It is usually installed in the main oil passage of the engine block or at the outlet of the oil pump, directly in contact with the lubricating oil passage.
Working in coordination with the pressure-limiting valve: The pressure-limiting valve regulates the maximum pressure of the system, while the pressure switch monitors the real-time pressure. Together, they ensure the stability of the lubrication system.
