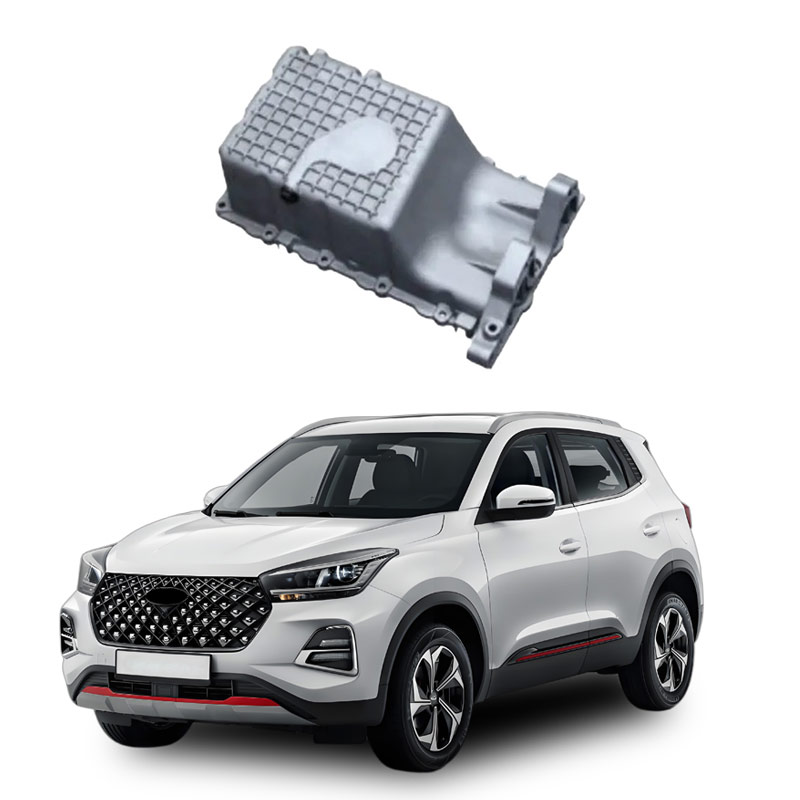

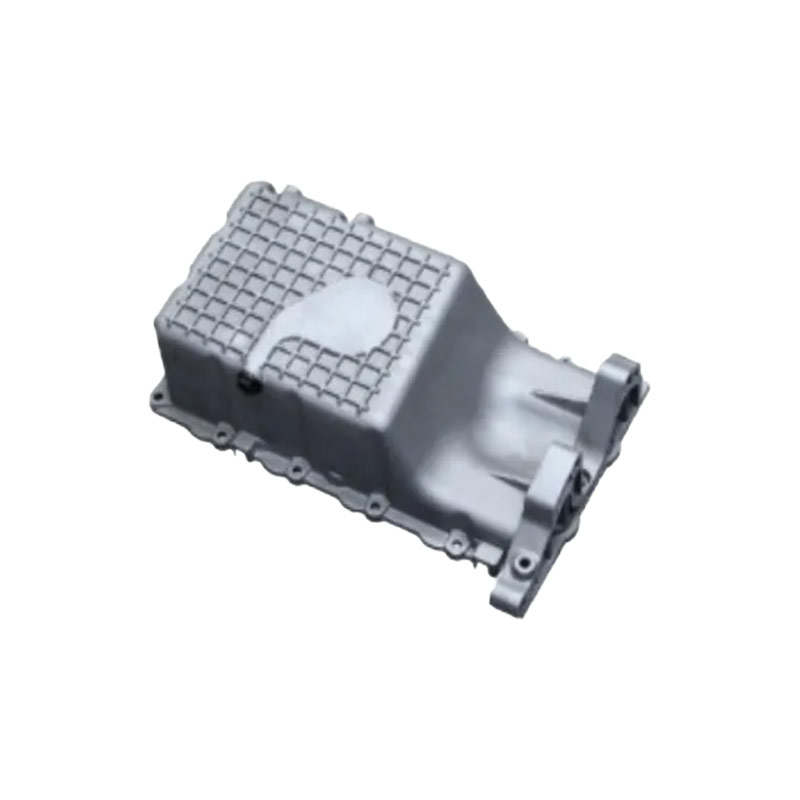

What does the oil pan assembly mean
The oil pan assembly is an important component of the engine lubrication system, located at the bottom of the engine. It is responsible for storing lubricating oil, sealing the crankcase and preventing impurities from entering. It is made by stamping thin steel plates or casting cast iron/aluminum alloy. The interior is equipped with an oil stabilizing baffle to reduce oil surface oscillation, and the side is provided with an oil dipstick and an oil drain plug.
Core function
Youdaoplaceholder0 Store lubricating oil : as an oil pool, it provides continuous lubrication for the engine.
Youdaoplaceholder0 Sealed crankcase : prevents impurities from entering and protects the internal components of the engine.
Youdaoplaceholder0 Lubrication method : Lubrication effect is achieved through splash lubrication (wet type) or centralized oil supply (dry type).
Structural features
The exterior is sealed by the crankcase, and the interior is equipped with baffles to reduce oil vibration.
The bottom is usually equipped with an oil drain plug for easy oil change.
The oil pan assembly is an important component of the engine lubrication system and mainly undertakes the following core functions:
Store lubricating oil
The oil pan serves as a storage container for lubricating oil, collecting the lubricating oil flowing back from the friction surfaces of the engine to ensure continuous oil supply to the system. When the engine stops running, the lubricating oil flows back to the oil pan. When it is restarted, it is drawn by the oil pump and delivered to each component.
Closed crankcase
Together with the lower plane of the cylinder block, it forms a sealed space to prevent external impurities from entering and at the same time isolate the internal engine oil from external contaminants.
Prevent impurities from invading
The sealing design prevents dust, sand and other foreign substances from entering the crankcase, ensuring the cleanliness of the internal engine oil.
Heat dissipation and anti-oxidation
Heat dissipation through the metal casing reduces the oxidation of engine oil and extends its service life. Some models are equipped with heat sinks inside to enhance the heat dissipation effect.
Stable oil
It is equipped with an oil-stabilizing baffle inside to reduce the violent shaking of the engine oil during driving, avoiding the impact on the oil pump's suction efficiency and the sedimentation of impurities.
Maintenance convenience
The bottom is equipped with an oil drain plug, which facilitates regular oil change and iron filings cleaning. Some models of oil drain plugs are magnetic and can adsorb metal debris produced by friction.
The faults of the oil pan assembly are mainly manifested as oil leakage, deformation, blockage and abnormal consumption of engine oil, etc. The specific symptoms include
Oil leakage
It is commonly seen that the oil pan seals age (such as the front and rear oil seals of the crankshaft and the oil drain screws) or are damaged by collision, resulting in oil leakage.
Deformation/Damage
The oil pan may be dented or cracked due to collision, and the deformed parts need to be replaced.
Blockage
Long-term lack of maintenance may lead to the accumulation of impurities, and regular cleaning and maintenance are required.
Abnormal oil consumption
This includes the drop in oil level caused by oil leakage and the phenomenon of oil burning due to poor sealing.
Engine anomaly
There may be a decrease in power, abnormal noises (metallic knocking sounds), and overheating.
It is recommended to regularly check the sealing of the oil pan, avoid aggressive driving and pay attention to changes in the oil level. If leakage or abnormal liquid level occurs, the sealing parts or deformed components should be inspected and replaced in time.
The main differences between the oil pan assembly and the oil pan lie in the structural range and functional combination:
Oil pan
The oil pan is a detachable sealed housing at the bottom of the engine and a key component of the lubrication system. It mainly serves to seal the crankcase, store lubricating oil, and prevent impurities from entering. It is usually made by stamping thin steel plates or casting cast iron/aluminum alloy. It is equipped with an oil stabilizing baffle inside to reduce oil oscillation, an oil dipstick is installed on the side for checking the oil level, and an oil drain plug is provided at the bottom for easy maintenance.
Oil pan assembly
The oil pan assembly typically consists of the oil pan body and internal components (such as the oil stabilizing baffle, dipstick, etc.), and some designs also integrate additional functions such as filters and buffer structures. For instance, the stepped oil deflector structure not only reduces oil splashing but also guides the smooth return of engine oil, lowering hydraulic instability and noise.
In summary, the oil pan assembly is a combination of the oil pan and related components, with the oil pan being a separate component. The two have similar functions but there are subtle differences in their application scenarios.
