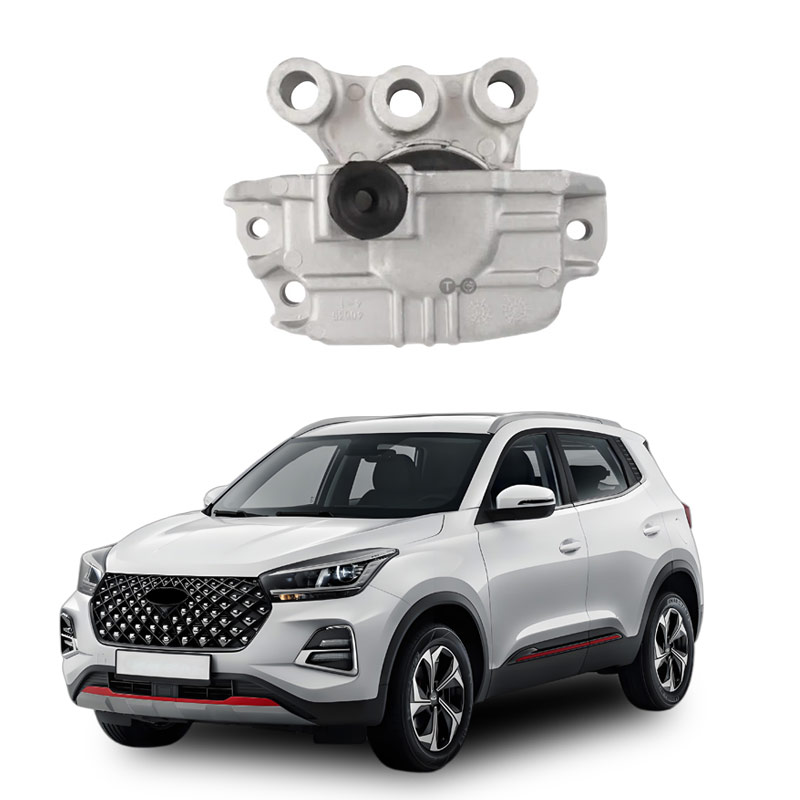

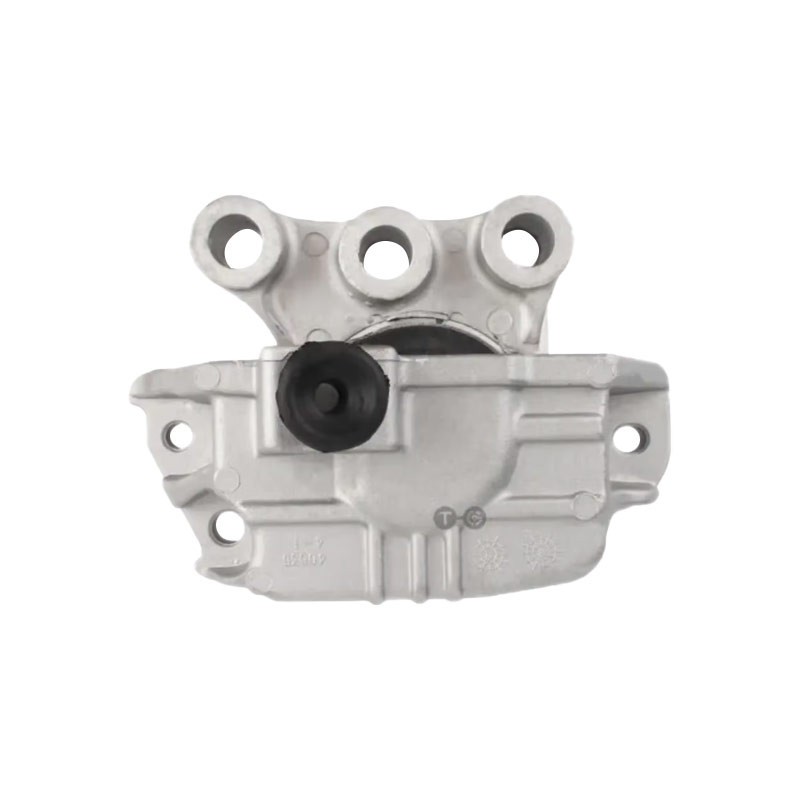

The working principle of the right suspension soft pad assembly of a car
The right suspension soft pad assembly of a car (also known as the engine suspension soft pad) achieves vibration attenuation through a combined structure of rubber and liquid. Its core working principle is as follows:
Structural composition
It is mainly composed of rubber main springs, hydraulic chambers, decoupling discs and other components. The rubber main spring serves as a buffer. The hydraulic chamber achieves dynamic damping regulation through a mixture of ethylene glycol and water, while the decoupling plate separates high-frequency and low-frequency vibrations through an inertial channel.
Working mechanism
Youdaoplaceholder0 low-frequency large-amplitude vibration (such as idling or bumpy road) :
When the decoupling disc undergoes significant displacement, the hydraulic fluid flows from the upper chamber to the lower chamber through the inertial channel, increasing the system stiffness and effectively attenuating the vibration.
Youdaoplaceholder0 high-frequency small-amplitude vibration (such as sudden acceleration/sudden braking) :
When the decoupling disc moves slightly within the free stroke, the dynamic response of the hydraulic fluid weakens, the system stiffness decreases, and the vibration transmission is reduced.
Failure mechanism of after long-term use :
The aging of rubber materials can lead to permanent deformation, changes in the viscosity of the liquid in the hydraulic chamber, and eventually cause the soft pad to fail to rebound, resulting in problems such as steering wheel vibration and vehicle body resonance.
Main functions
Decompose the vibration energy of the engine and reduce the vibration frequency transmitted to the vehicle body;
Limit the engine displacement to prevent interference with other components;
Absorb impact force and extend the service life of the transmission system.
The right suspension soft pad assembly of a car is a key component that connects the vehicle body with the powertrain (engine, transmission, etc.), and mainly undertakes the following functions:
Core role
Buffer the vibration and shock of the powertrain through rubber or hydraulic components, reduce the transmission of vibrations generated during engine operation to the vehicle body, enhance driving comfort and protect vehicle body parts from damage.
Structural composition
It is usually composed of elastic components such as rubber layers and hydraulic chambers. Some models will combine metal brackets to form an assembly structure and achieve multi-dimensional shock absorption effects through installation at specific angles.
Common Faults
Damage can cause unstable idle speed of the engine, excessive displacement of the powertrain during acceleration/braking, and even cause body resonance. It needs to be replaced in time.
The main functions of the right suspension soft pad assembly of a car include:
Support and Positioning
The engine/transmission and other powertrains are fixed to the frame through rubber elastic elements to ensure that the powertrain is in a reasonable position, while withstanding vertical loads and buffering vibrations.
Vibration isolation and noise reduction
Reduce the transmission of vibration and noise generated by engine operation to the vehicle body, lower the jolting and abnormal sounds in the cockpit, and enhance ride comfort.
Limit protection
Limit the displacement of the powertrain during acceleration, braking or jolting to prevent collisions with surrounding components (such as flywheel housings, drive shafts, etc.) and ensure the safety of the mechanical structure.
Adapt to deformation
Through the elastic deformation of rubber materials, the relative displacement between the frame and the powertrain is compensated, preventing component damage or abnormal transmission system caused by rigid connections.
Faults in the right suspension soft pad assembly of the engine may cause problems such as idle vibration and abnormal accelerator pedals, which require timely maintenance. The following is the key information:
Common fault manifestations
Youdaoplaceholder0 idle vibration : It may be due to the damage of the soft pad, causing the engine vibration to be transmitted to the vehicle body, resulting in steering wheel vibration or vehicle body resonance.
Youdaoplaceholder0 Abnormal accelerator pedal : If the cushion fails, it may cause the accelerator pedal to be abnormally lifted, triggering a "runaway" trend.
Youdaoplaceholder0 Intensified vibration : During driving, engine jolts may occur, leading to a decrease in vehicle stability.
Detection method
Youdaoplaceholder0 lifting test : Use a bracket to lift each support point of the engine and observe whether the vibration weakens. If the vibration is significantly reduced when a certain support point is lifted, it indicates that the soft pad is damaged.
Youdaoplaceholder0 Observe vibration : If the engine assembly lifts up during sudden acceleration, it may be due to the failure of the soft pads.
Handling suggestions
When replacing the damaged suspension soft pad assembly, it is recommended to choose original factory or regular channel parts to ensure compatibility.
If the fault persists, it is necessary to check whether the related components such as the throttle valve and spark plugs are abnormal.
