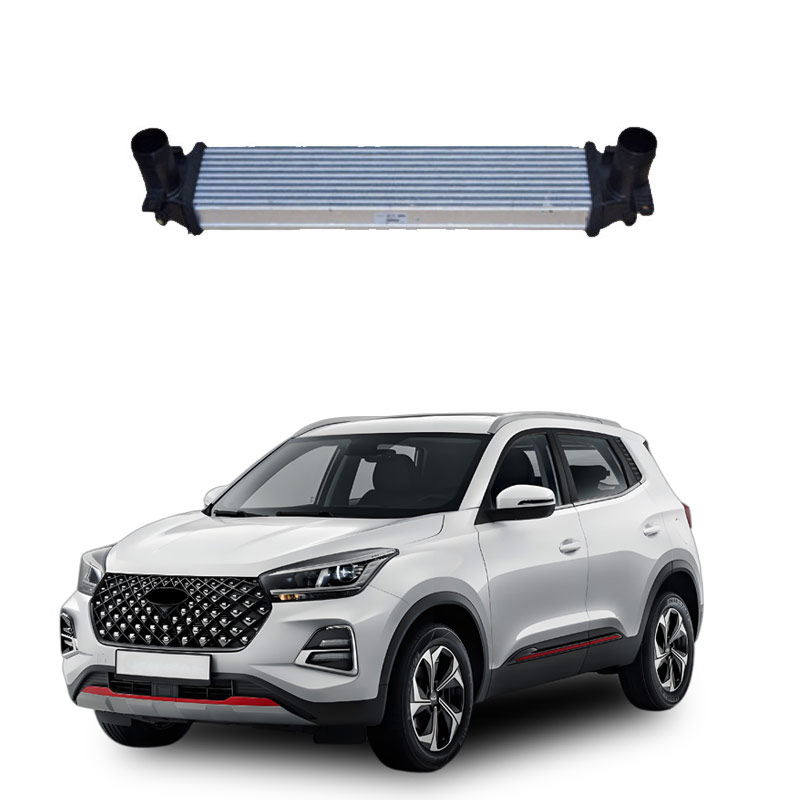

What is an intercooler
The intercooler is a heat dissipation device used to lower the intake air temperature of an engine. It is mainly applied in turbocharged or supercharged engines, enhancing engine performance and stability by cooling the high-temperature air after supercharging.
The core function of the intercooler is
The Intercooler is a key component in a turbocharged engine system. Its core function is to lower the temperature of the high-temperature air after turbocharging through the principle of heat exchange. During the process of turbocharging or mechanical supercharging, the compression of air can cause a significant increase in temperature (up to over 200℃). If it directly enters the combustion chamber, it will trigger knocking, reduce the charging efficiency and increase pollutant emissions. The intercooler can lower the intake air temperature by 50 to 60 degrees Celsius, increase the air density, and thereby enhance the engine power by 3% to 5%.
Youdaoplaceholder0 Working principle and type
Youdaoplaceholder0 working principle .
The intercooler exchanges heat with high-temperature compressed air through the cooling medium (air or liquid). The pressurized air flows through the heat dissipation pipes of the intercooler, where the heat is carried away by the external air or coolant. The cooled air then enters the engine combustion chamber.
Air-cooled type: It uses the oncoming air flow or fan cooling when the vehicle is in motion. It has a simple structure but relatively low efficiency at low speeds.
Water-cooled type: It dissipates heat through the circulation of engine coolant. The cooling effect is stable but the structure is complex.
Youdaoplaceholder0 Materials and design .
It is usually made of aluminium alloy because of its excellent thermal conductivity. The design needs to balance cooling efficiency and airflow resistance. An overly large intercooler may increase turbine hysteresis.
Youdaoplaceholder0 practical application value
Youdaoplaceholder0 Performance improvement : Lowering the intake air temperature can enhance the inflation efficiency, increase power output and reduce fuel consumption.
Youdaoplaceholder0 Protect the engine : avoid knocking and mechanical damage caused by high temperatures, and extend the engine's lifespan.
Youdaoplaceholder0 Environmental benefits : Reduces nitrogen oxide (NOx) emissions, meeting environmental protection requirements.
The main function of the intercooler is to lower the intake air temperature of the turbocharged engine, increase the intake air density, thereby enhancing combustion efficiency and power output, while preventing knocking and reducing pollutant emissions .
The core function and mechanism of action of the intercooler
Youdaoplaceholder0 cool the pressurized air .
During the turbocharging process, the temperature of the compressed air rises significantly (usually reaching over 120℃), resulting in a decrease in oxygen density. The intercooler reduces the intake air temperature to 50-60℃ through heat dissipation, increasing the air density by approximately 30%.
Experimental data shows that for every 10℃ drop in intake air temperature, the engine power can increase by 3% to 5%.
Youdaoplaceholder0 enhance combustion efficiency .
Low-temperature and high-density air enables more thorough atomization of fuel, more precise control of air-fuel ratio, and more complete combustion. This not only enhances power output but also reduces fuel consumption by approximately 5% to 10%.
Youdaoplaceholder0 prevent abnormal operating conditions of the engine .
Eliminate the pre-ignition and knocking phenomena caused by high-temperature gases to prevent abnormal wear and tear of key components such as pistons and valves.
Reduce nitrogen oxide (NOx) emissions by 20% to 30% to meet stricter environmental protection standards.
Youdaoplaceholder0 Special environmental adaptability
Youdaoplaceholder0 high-altitude compensation .
In areas above 3,000 meters in altitude, the intercooler can maintain approximately 85% of the efficiency of the pressurization system under plain conditions, and the performance degradation of the pressurization system without intercooler is reduced by 40%.
Youdaoplaceholder0 system collaborative optimization .
The stable intake parameters after cooling enable the turbocharger to match a higher compression ratio (typically increased by 15% to 20%), achieving the best coordination between the turbocharging system and the engine.
