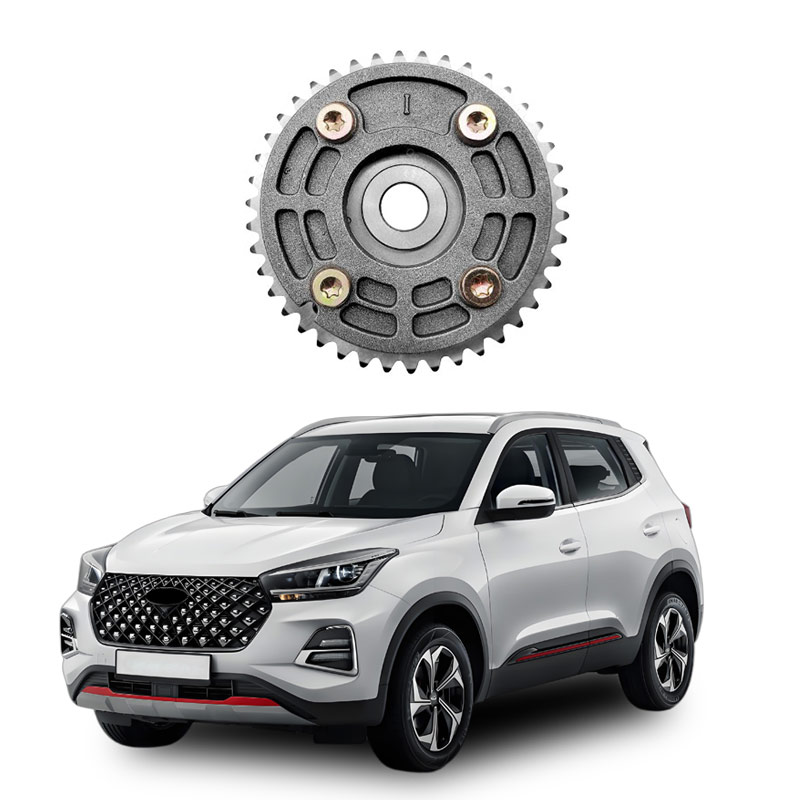

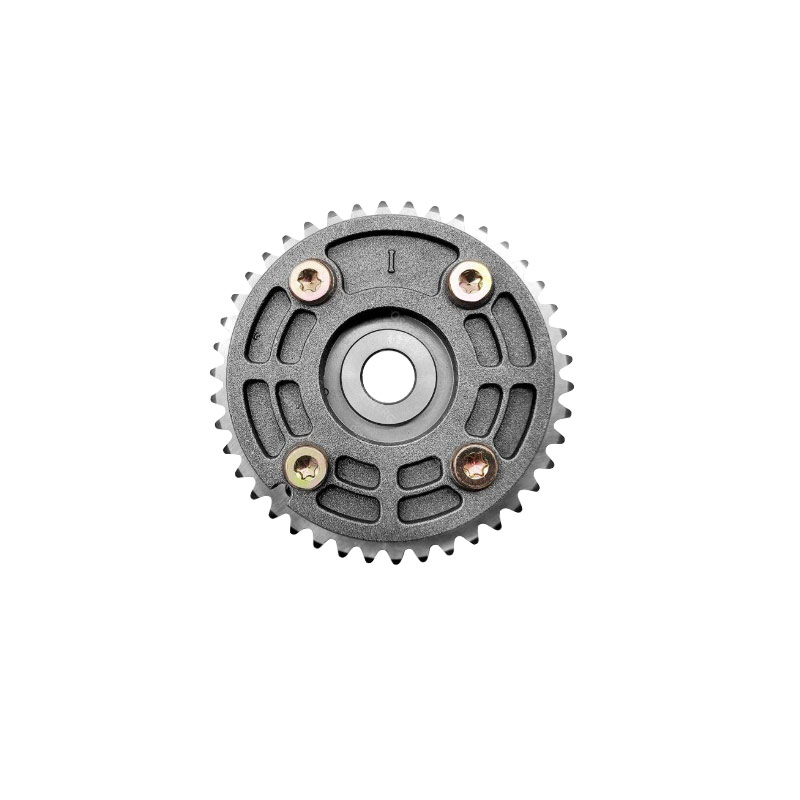

What is the intake camshaft phase converter assembly
The intake camshaft phase controller assembly is a key component of the engine's valve train. It is mainly responsible for dynamically adjusting the opening and closing times of the intake valves according to the engine's operating conditions, thereby optimizing combustion efficiency and power output.
Core function
The phase of the intake camshaft (i.e., its position relative to the crankshaft) is adjusted through a hydraulic or electric drive mechanism to change the valve opening time. For instance, at low speed and low load, the intake valve closing time can be advanced to enhance torque, and at high speed and high load, the closing time can be delayed to increase the intake volume.
Working principle
Youdaoplaceholder0 Dynamic adjustment : The ECU calculates the target phase Angle based on parameters such as rotational speed and load, and adjusts the camshaft position by controlling the oil circuit pressure to drive the adjustment mechanism.
Youdaoplaceholder0 Structural composition : It includes components such as CAM regulators, solenoid valves, and proportional control valves. Among them, the CAM regulators are mostly powder metallurgy parts, and the actuator achieves phase changes by controlling the oil passage pressure.
Technical advantage
The use of vapor phase anti-rust packaging can effectively isolate moisture and oxygen, ensuring a rust prevention period of 3 to 6 months for components and avoiding the pollution and uneven protection problems caused by traditional anti-rust oils.
The main function of the intake camshaft phase converter assembly is to dynamically adjust the intake valve opening and closing time according to the engine operating conditions, thereby optimizing the engine performance. Specific functions include:
Dynamically adjust the valve phase
By adjusting the position of the camshaft relative to the crankshaft, the opening and closing times of the intake valves can be precisely controlled. For instance, under low-speed and low-load conditions, the intake valve can be closed earlier to increase the low-speed torque. At the time of shutdown after high-speed and high-load delay, increase the intake air volume to enhance the power performance.
Enhance power and economy
Youdaoplaceholder0 Low-speed stage : Shorten the intake stroke, enhance the vortex and rolling effects in the cylinder, make the mixture more uniform, reduce misfire, and improve the starting response.
Youdaoplaceholder0 High-speed stage : Extend the intake stroke, increase the intake volume by taking advantage of the intake inertia, and combine it with a later fuel injection time to enhance the power output.
Ensure combustion efficiency
By optimizing the opening and closing angles and timing of valves, the efficiency of gas exchange can be improved, the backflow of exhaust gas can be reduced, fuel consumption can be lowered and pollutant emissions can be decreased.
Faults in the intake camshaft phase converter assembly are typically manifested as abnormal engine noise, weak acceleration, unstable idle speed and other symptoms. They may involve the following causes and solutions:
Common causes of faults
Youdaoplaceholder0 Mechanical component abnormality
Camshaft sprocket or gear wear causes phase offset
The bolts of the bearing cover are too tight, affecting the lubricating oil passage
The clearance between the camshaft and the crankshaft bearing is too large
Youdaoplaceholder0 lubrication system problem
Insufficient oil pump pressure or abnormal flow
Oil filter/check valve clogged
Youdaoplaceholder0 sensor or line failure
Abnormal camshaft position sensor signal
Wiring harness damage or poor contact
Diagnostic steps
Youdaoplaceholder0 Basic check
Confirm whether the oil level and quality are normal
Check whether the wiring harness and sealing strip are damaged or leaking
Youdaoplaceholder0 component inspection
Replace the camshaft phase sensor (G40 component)
Disassemble the engine cover to inspect the wear of the camshaft and sprocket
Replace the damaged oil check valve or filter
Youdaoplaceholder0 repair suggestions
If the timing deviation exceeds the allowable range, the chain or sprocket needs to be replaced
The fault has not been eliminated and the engine needs to be disassembled for major repair
