What does a car intake temperature and pressure sensor mean

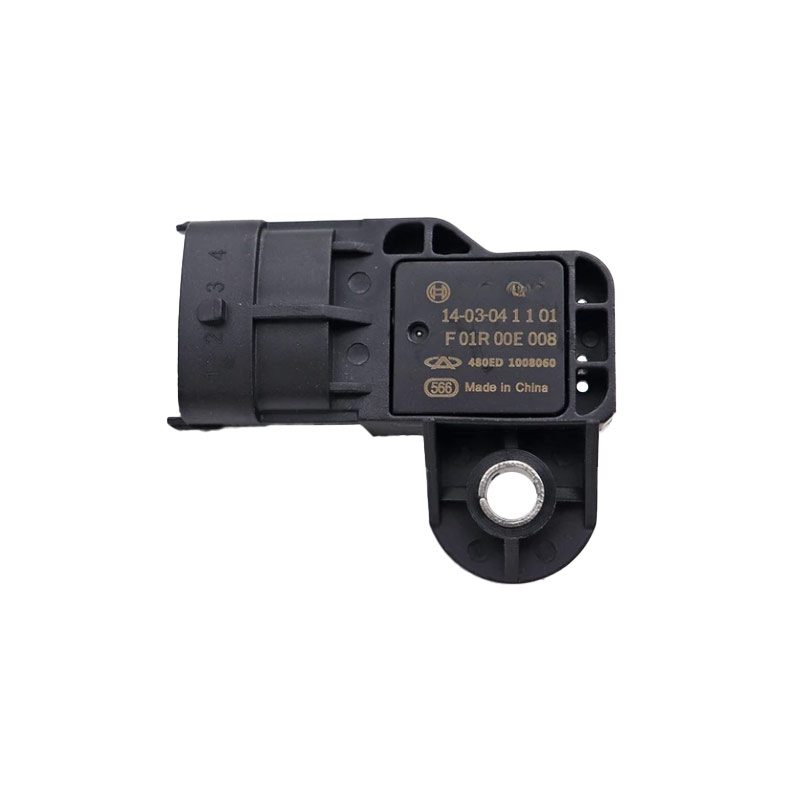

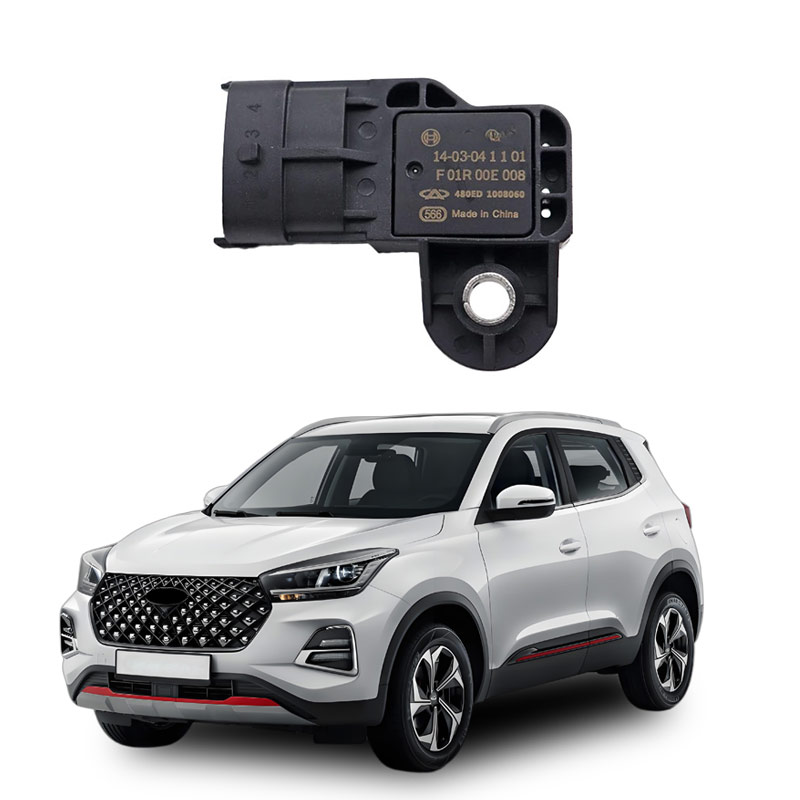

The automotive intake temperature and pressure sensor is a composite sensor integrating intake pressure and temperature monitoring functions. It is mainly used to measure the pressure and temperature of the intake manifold and convert these parameters into electrical signals to be input into the engine control unit (ECU) to optimize fuel injection volume and ignition timing.
Core function
Youdaoplaceholder0 Pressure monitoring : By measuring the absolute pressure (vacuum degree) in the intake manifold, it helps the ECU accurately calculate the fuel injection volume, ensuring that the engine achieves the optimal air-fuel ratio under different operating conditions.
Youdaoplaceholder0 Temperature monitoring : Detects the intake air temperature (usually located behind the throttle or at the intake pipe), converts the temperature signal into a voltage signal, and uses it to correct the fuel injection volume to avoid fluctuations in fuel efficiency caused by temperature changes.
Installation location
It is usually installed in the intake pipe downstream of the turbocharger. In some models, it may be integrated into the air flow meter or installed separately.
Fault impact
If the sensor fails, it may cause problems such as the engine warning light coming on, unstable idle speed, and increased fuel consumption.
The automotive intake temperature and pressure sensor (usually integrating intake pressure and temperature monitoring functions) is a core component in the engine management system. Its main function is to provide the ECU with pressure and temperature data of the intake manifold to precisely control the fuel injection volume and ignition timing, ensuring the efficient and stable operation of the engine.
Specific functions
Youdaoplaceholder0 monitor intake pressure
By measuring the absolute pressure of the intake manifold, the ECU calculates the fuel injection volume accordingly to ensure that the fuel supply matches the intake volume under different working conditions.
Youdaoplaceholder0 detect the intake air temperature
The intake air temperature is converted into a voltage signal and transmitted to the ECU to correct the fuel injection volume, avoiding the imbalance of the air-fuel ratio caused by temperature changes, improving combustion efficiency and reducing fuel consumption.
Youdaoplaceholder0 optimize power output and emissions
By integrating pressure and temperature data, the sensor helps the ECU adjust the ignition advance Angle and fuel injection duration in real time, optimizing power performance and reducing pollutant emissions.
Installation location
It is usually located in the intake pipe downstream of the turbocharger. Some models integrate it with the air flow meter, while in a few cases, it is installed separately.
A damaged intake air temperature and pressure sensor in a car can cause the engine control system to be unable to obtain accurate intake air temperature information, which in turn may lead to the following fault phenomena:
Common symptoms
Youdaoplaceholder0 Engine fault light on constantly : After the vehicle starts, the engine fault light remains on continuously, indicating a system anomaly.
Youdaoplaceholder0 Power decline : Slow power response during acceleration, and obvious difficulty when climbing slopes or overtaking.
Youdaoplaceholder0 Abnormal exhaust emissions : Black smoke may be emitted at idle speed, and the black smoke intensifies during sudden acceleration. The exhaust color turns black and has an unpleasant smell.
Youdaoplaceholder0 Increased fuel consumption : Decline in fuel economy, abnormal increase in fuel consumption.
Youdaoplaceholder0 Unstable idle speed : The engine speed fluctuates significantly and the vehicle body shakes.
Cause of malfunction
Youdaoplaceholder0 sensor aging or damage : long-term use leads to component failure or poor circuit contact.
Youdaoplaceholder0 Circuit issue : Short circuit, open circuit or poor contact between the sensor and the ECU.
Abnormal signal : incorrect transmission of the intake pressure signal leads to uncontrolled fuel injection volume.
Solution
It is recommended to immediately send it to a professional repair point for inspection of the sensor and circuits. If necessary, replace the damaged parts and clean the contact points.
