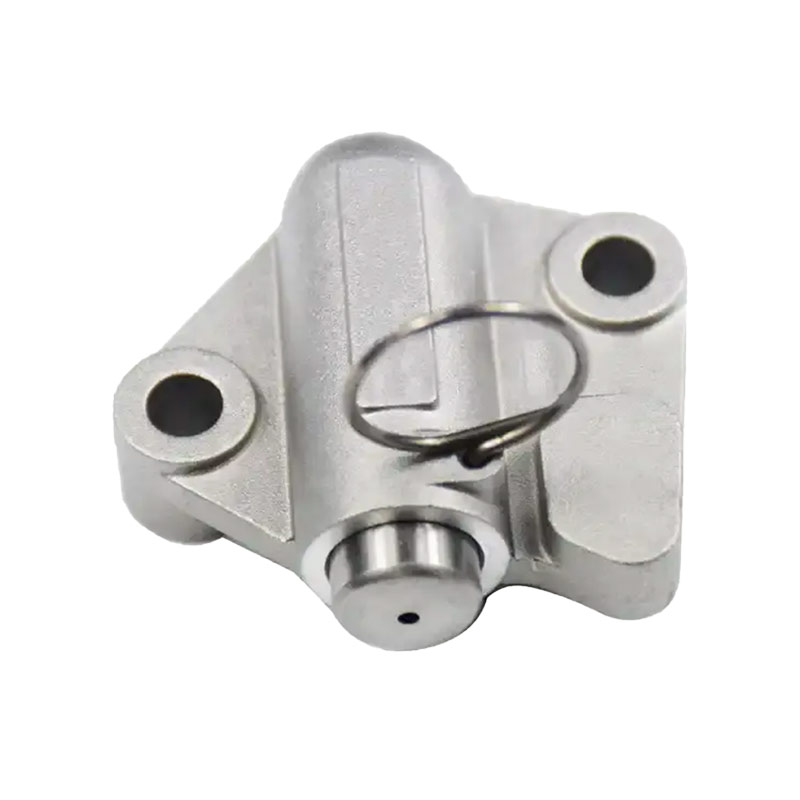

What is the automotive hydraulic tensioner assembly
The automotive hydraulic tensioner assembly is an important component of the engine timing system. It is mainly used to adjust the tightness of the timing belt, reduce the vibration and slippage of the belt during operation, and ensure the stable operation of the transmission system.
Core function
The belt is tensioned by the hydraulic cylinder to dynamically maintain the optimal tension state, avoiding the problem of reduced transmission efficiency or abnormal noise caused by belt laxness.
Structural features
It includes components such as oil cylinders, motors, and pressure sensors. The system pressure is regulated by high-pressure oil to achieve precise tension control.
Installation location
It is usually located on the loose side of the engine timing system and is used in conjunction with the tensioner pulley to jointly maintain the tension balance of the belt.
The automotive hydraulic tensioner assembly is mainly used to dynamically adjust the tension of the timing belt or chain, ensuring that the opening and closing of the valves are precisely synchronized with the piston stroke, while also suppressing problems such as runout and tensile deformation of the transmission components.
Specific function
Youdaoplaceholder0 tension adjustment
The tightness of the timing belt/chain is automatically adjusted through the hydraulic system to prevent slippage, tooth skipping or tooth loss caused by insufficient tension, ensuring the stability of the transmission system.
Youdaoplaceholder0 guiding and supporting
It also has a guiding function, precisely guiding the timing belt, reducing vibration and offset during operation, and lowering operating noise.
Youdaoplaceholder0 compensation and protection
The hydraulic tensioner can automatically compensate for the deformation of the belt/chain caused by factors such as material and force, extend its service life, and at the same time reduce the risk of internal engine collision.
Youdaoplaceholder0 enhance performance
Optimize the smoothness of engine operation, reduce problems such as increased fuel consumption and decreased power caused by improper tension, and ensure the reliability of the overall power system.
The automotive hydraulic tensioner assembly adjusts the belt tension in real time through the hydraulic system to ensure the stability of the transmission system. Its core working principle is as follows:
Hydraulic regulation mechanism
The hydraulic tensioner is equipped with a hydraulic system inside, which controls the piston stroke through oil pressure and dynamically compensates for the length changes of the belt caused by wear or temperature variations. When the belt becomes loose, the oil pressure pushes the piston to compress the spring or rubber element, generating tension that presses the belt tightly against the working wheel, restoring the appropriate tightness.
Dynamic tension balance
Unlike traditional mechanical tensioners (such as torsion spring drives), the hydraulic system can automatically fine-tune the tension according to the vibration frequency and load changes during engine operation, reducing problems such as slippage, noise and component wear caused by being too tight or too loose.
Structural composition
It usually includes fixed housing, tensioning arms, hydraulic components (such as hydraulic cylinders, pistons), spring bushings and other parts. Rolling bearings reduce frictional losses and extend service life, while spring bushings precisely adjust tension.
Function and role
Automatically compensate for belt laxity, maintain constant pressure, and ensure power transmission efficiency
Reduce the risk of belt slippage and minimize problems such as engine vibration and weak acceleration
Balance the tension force and extend the service life of the belt and transmission components .
