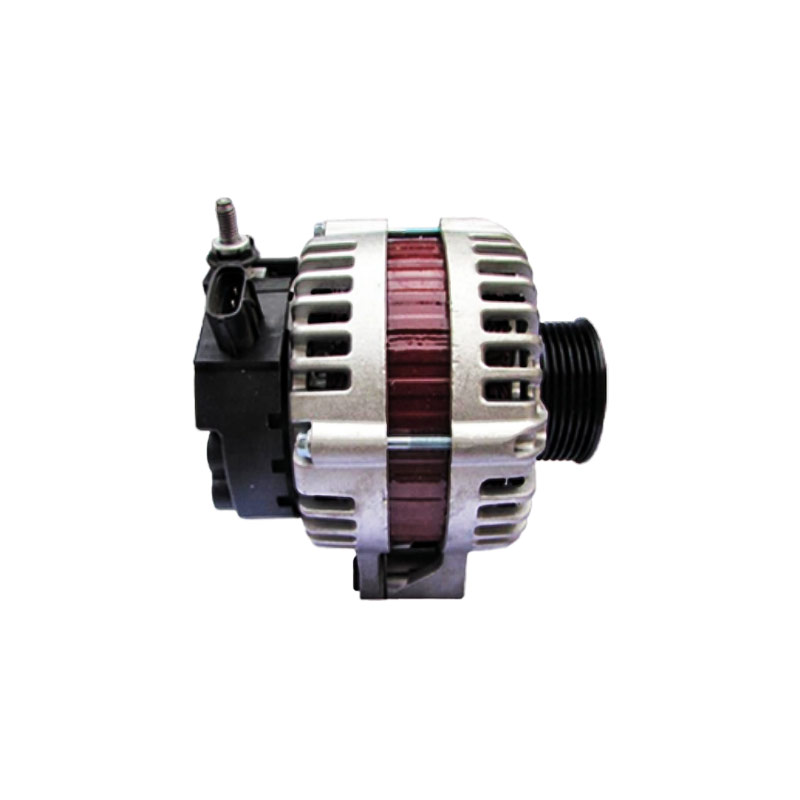

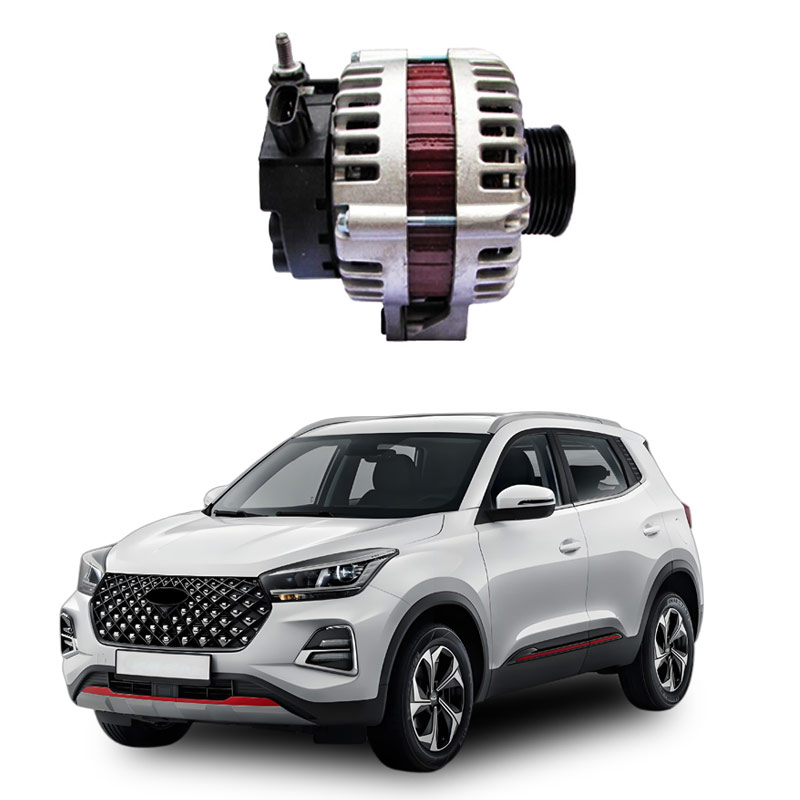

What is a generator assembly
Generator assembly is not a standard term and may refer to the overall structure of a generator or a collection of core components. The generator is mainly composed of the following core components:
Main components
Youdaoplaceholder0 stator : The fixed part, including windings, generates current by cutting the magnetic field.
Youdaoplaceholder0 rotor : The rotating part that generates a magnetic field and triggers the generation of electrical energy through electromagnetic induction.
Youdaoplaceholder0 excitation system : provides direct current to the rotor to maintain the magnetic field.
Youdaoplaceholder0 End cover and bearing : Support rotor rotation and reduce friction to ensure mechanical stability.
Youdaoplaceholder0 casing : Provides structural support and assists in heat dissipation.
Function Analysis
A generator makes the rotor rotate through mechanical energy (such as driven by a water turbine, steam turbine, etc.). The interaction between the rotor magnetic field and the stator winding generates an induced current, achieving energy conversion. All components work in coordination to ensure efficient and stable power output.
The working principle of the generator assembly is based on the law of electromagnetic induction, converting mechanical energy into electrical energy. Its core components include the stator, rotor and excitation system, which jointly achieve energy conversion.
Working principle
When an external power source (such as a diesel engine or a water turbine) drives the rotor to rotate, the rotor magnetic field and the stator winding generate relative motion. When the rotor cuts through the stator magnetic field, according to Faraday's law of electromagnetic induction, an induced electromotive force is generated in the stator winding, and eventually a current is output through a closed circuit.
Energy conversion
Mechanical energy (provided by the prime mover) is converted into electrical energy through electromagnetic induction, achieving the conversion from mechanical energy in the forms of chemical energy (fuel combustion), water power, etc. to electrical energy.
Main components
Youdaoplaceholder0 stator : Fixed part, including windings, cutting the magnetic field to generate current.
Youdaoplaceholder0 rotor : The rotating part, generating the main magnetic field, requires the excitation system to provide direct current to maintain the magnetic field.
Youdaoplaceholder0 excitation system : Provides continuous current for the rotor to ensure the stability of the magnetic field.
The generator assembly is the core equipment that converts mechanical energy into electrical energy. It mainly consists of components such as the stator, rotor, excitation system, and cooling system, and realizes energy conversion through the principle of electromagnetic induction.
The synergistic effect of the stator and rotor
The stator part remains stationary and consists of components such as the core and windings, responsible for generating the magnetic field. The rotor part rotates through mechanical energy (such as driven by a water turbine or steam turbine), cutting the stator magnetic field to generate current. The two achieve energy conversion through electromagnetic induction.
The function of the excitation system
It provides direct current to establish a magnetic field. By adjusting the excitation current, the reactive power output of the generator can be controlled, which is a key component for maintaining the stability of the power grid.
The necessity of a cooling system
When a generator is in operation, it generates a large amount of heat. The cooling system (such as hydrogen cooling and water cooling) can lower the temperature of the components, prevent overheating and damage, and ensure the long-term stable operation of the equipment.
The supporting function of the end cover and the bearing
The end cover prevents hydrogen leakage through a sealed structure, while supporting the rotor and maintaining mechanical stability. Bearings reduce vibration and axial displacement, ensuring smooth operation of the rotor.
Generator assembly failure is usually manifested as abnormal power generation, unstable voltage or no power generation at all, which may involve problems with the circuit, mechanical components or regulation system. The following are common causes and solutions:
Circuit connection problem
Loose wiring, oxidation or a blown fuse can cause an interruption in current. It is necessary to check whether the connection parts of the generator output line, excitation line, etc. are loose or oxidized to ensure good contact.
