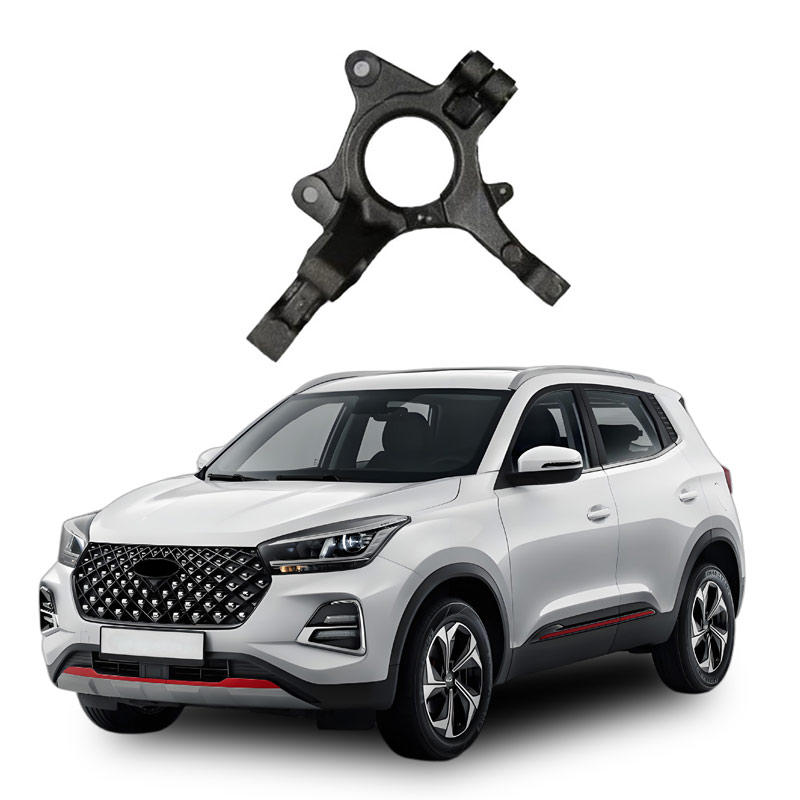

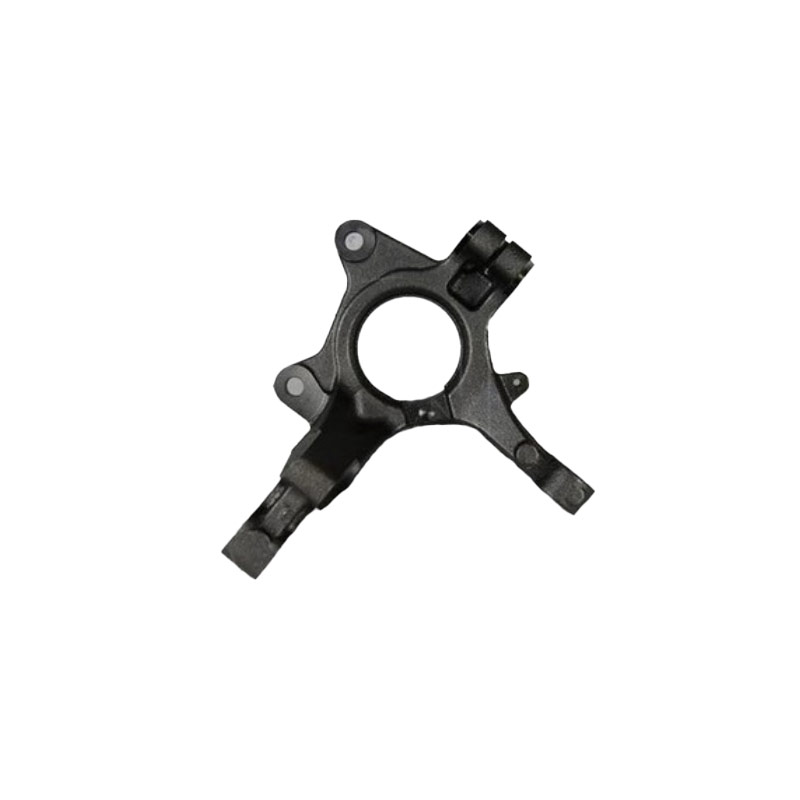

What is the front steering knuckle of a car
The front steering knuckle of a car is an important component of the car's steering system. It is located on the inner side of the front wheels, connecting the wheels, suspension system and steering mechanism, and is responsible for transmitting steering force and supporting the rotation of the wheels.
Structure and Function
The steering knuckle is usually fork-shaped or forged, with one end connected to the wheel through the hub and the other end linked to the steering gear through the steering tie rod or ball joint connecting rod. Its core functions include:
Youdaoplaceholder0 steering control : The torque transmitted by the steering gear makes the wheels rotate around the main pin to achieve direction adjustment;
Youdaoplaceholder0 Load-bearing force : It bears the vertical load of the vehicle, the longitudinal force during braking, and the lateral force during turning;
Youdaoplaceholder0 connection hub : integrates components such as suspension control arms and brake calipers to maintain wheel alignment parameters (such as camber Angle).
Materials and Classification
Steering knuckles are mostly made of forged steel or aluminum alloy to meet the requirements of strength and lightweight. According to the suspension type, they are classified into independent suspension independent steering knuckles and non-independent suspension rigid steering knuckles.
For more details (such as the specific functions of the connection holes), you can refer to the professional maintenance manual or vehicle structure diagram.
The front steering knuckle of a car is a key component that connects the wheels and the steering system. Its main functions include supporting the rotation of the wheels, transmitting steering force and bearing the vehicle load.
Support the rotation of the wheels
The steering knuckle connects the hub and the suspension system, enabling the wheels to deflect around the main pin and achieving the steering function. Its fork-shaped structure allows the wheels to rotate flexibly in multiple directions and maintain wheel positioning parameters (such as camper Angle).
Transmit steering force
When the driver turns the steering wheel, the steering gear transmits force to the steering knuckle through the connecting rod mechanism, causing the wheels to deflect and achieve steering. Meanwhile, the steering knuckle transmits the vertical load and the longitudinal force during braking to the vehicle body.
Bear the vehicle load
The steering knuckle needs to withstand the vertical load from the front of the vehicle and the impact force during driving to ensure the vehicle's stability and handling. The materials are mostly forged steel or aluminum alloy, taking into account both strength and lightweight requirements.
A malfunction of the front steering knuckle of a car may cause the following symptoms:
Decreased driving stability
The steering knuckle is a core component of the vehicle's steering system. A malfunction can cause problems such as steering deviation and body shaking, increasing the risk of loss of control.
The steering wheel is vibrating abnormally.
The malfunction may cause the steering wheel to vibrate or jump, affecting the driving experience.
Accelerated tire wear
Damage to the steering knuckle may cause uneven contact between the tire and the ground, accelerating tire wear and shortening its lifespan.
Turning is difficult or heavy
The failure of the connecting parts will cause an increase in the resistance of the steering system, resulting in heavier steering wheel operation.
Abnormal noise problem
Faults may be accompanied by metallic friction sounds or abnormal vibration sounds.
In June 2025, the National Highway Traffic Safety Administration of the United States launched an investigation into 92,000 Jaguar Land Rover vehicles and found that their aluminum front steering knuckles were at risk of breakage, which could lead to axle breakage accidents. It is recommended that similar problems be repaired in a timely manner when discovered.
Specialized processing equipment for automotive front steering knuckles mainly includes CNC lathes, turning and milling compound special machines, and four-spindle special machine tools, etc., which possess high-precision processing and efficient production capabilities.
CNC lathe
The CNC lathes produced by Shenyang Julang can complete the processing procedures of all six surfaces in one clamping. They adopt a modular design for quick die changing and are suitable for the complex processing requirements of steering knuckles.
Turning and milling compound special machine
This equipment achieves efficient processing through five-axis linkage, capable of completing the processing of four steering knuckles in a single cycle, with a significant improvement in efficiency compared to conventional single-spindle systems.
Four-spindle special machine tool
The four-spindle machine tools developed by enterprises such as CITIC Dicastal can simultaneously process four workpieces through four spindles, with the processing time for a single piece being only a quarter of that of conventional equipment, making them suitable for large-scale production scenarios.
