What is the working principle of the front balance bar of a car

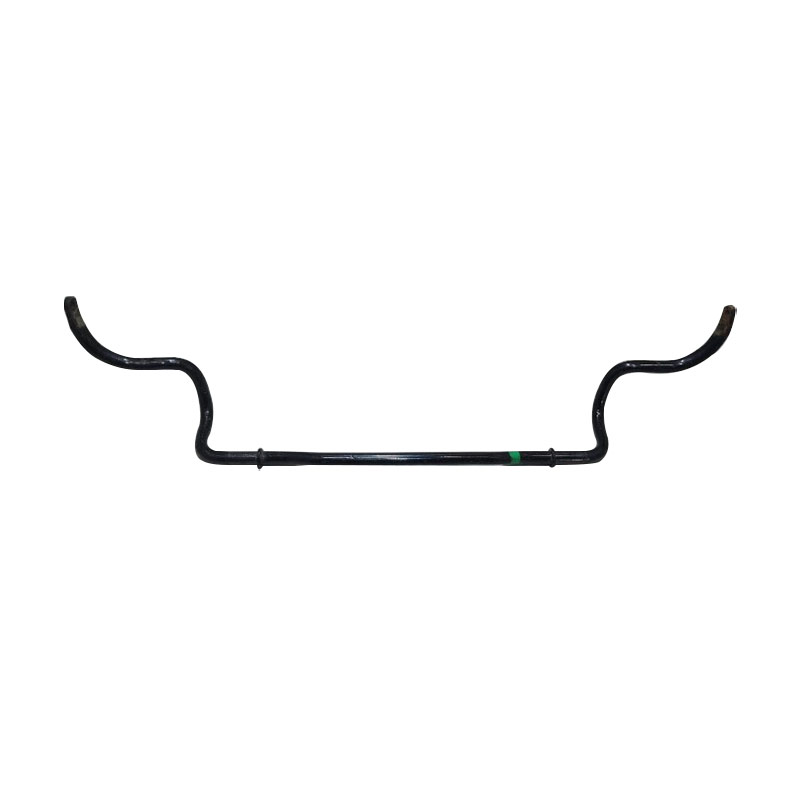

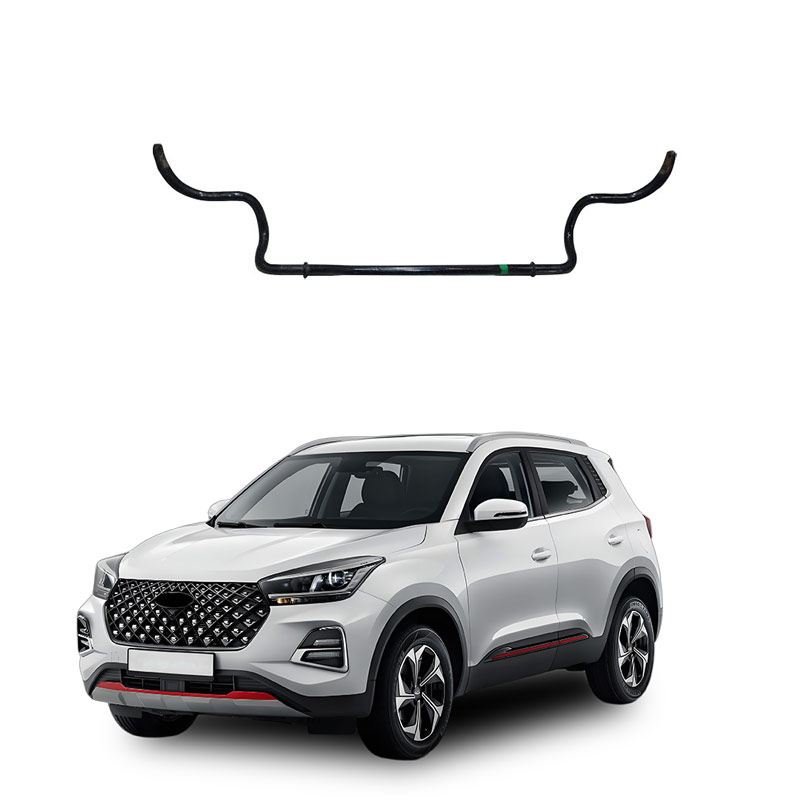

The core working principle of the front balance bar of a car (also known as the anti-roll bar or stabilizer bar) is to suppress the body roll of the vehicle through the torsional elasticity of the metal bar, ensuring the stability of the vehicle when cornering or bumpy. The following are its detailed mechanisms and application features:
Core working principle
Youdaoplaceholder0 leverage balance mechanism
The two ends of the balance bar are respectively connected to the left and right wheel suspensions (such as shock absorbers or lower support arms), and the middle part is fixed to the frame or subframe through a bushing.
When driving in a straight line : the forces on both wheels are evenly distributed, and the balance bar does not generate any force .
When turns or bumps on one side : the inner wheel lifts up and the outer wheel presses down, causing the balance bar to twist and deform. At this point, the bar body generates a reverse torsional force, pushing the outer wheels that are pressed down upward and simultaneously pulling the inner wheels that are lifted up downward, reducing the body tilt Angle .
Core role
Youdaoplaceholder0 suppresses roll
Reduce the body tilt by 20%-30% when cornering and improve handling stability .
To avoid the "ship-like feeling" and passenger dizziness, especially to improve the driving quality of high-gravity models such as SUvs .
Youdaoplaceholder0 enhance vehicle body rigidity
Connect the left and right suspensions to reduce frame deformation and extend the service life of suspension components .
Iii. Limitations of Special Scenarios
Youdaoplaceholder0 road vs. off-road conflict
Youdaoplaceholder0 Road scene : Control of the balance bar lift to reduce the risk of rollover .
Youdaoplaceholder0 off-road scene :
When a cross axle or a single wheel is suspended, the balance bar will limit the suspension travel, causing the suspended wheel to lose grip .
High-end off-road vehicles (such as the Wrangler) are equipped with defunct balance bars , which can be manually lifted to enhance their ability to get out of difficult situations .
Faults and Maintenance
Youdaoplaceholder0 Common faults
Bushing aging: Makes a "creaking" abnormal sound when passing over speed bumps.
Loose ball joint connection: increased steering wheel play, intensified roll when cornering .
Rod breakage: Caused by long-term fatigue or impact (immediate replacement required) .
Youdaoplaceholder0 Maintenance suggestions
Inspect the bushings and connecting parts every 20,000 kilometers.
After replacement, four-wheel alignment must be done to avoid uneven tire wear .
The front balance bar is essentially an "elastic torque lever", maintaining the level of the vehicle body by countering the height difference between the left and right wheels. Its design is indispensable in road driving, but it may become an obstacle when off-roading. The functional trade-offs need to be weighed based on the usage scenarios.
The impact of the balance bar on the handling performance of a vehicle is significant but has boundaries. Its effect is restricted by the vehicle model, design parameters and usage scenarios. The specific influences are as follows:
Core impact: Improved handling stability
Youdaoplaceholder0 anti-roll effect
Youdaoplaceholder0 Cornering stability : When the vehicle takes a turn, the balance bar offends the roll caused by centrifugal force through torsional elasticity, reducing the body tilt by 20%-30%, thereby enhancing the cornering speed and handling confidence.
Youdaoplaceholder0 High-speed stability : Reduces the body sway during high-speed lane changes or on undulating roads, avoiding a "floating sensation", especially for high center of gravity models such as SUVs (rigidity is 15%-20% higher than that of sedans in the same class ).
Youdaoplaceholder0 grip optimization
The balance bar coordinates the left and right suspension movements, maintains the contact area between the tires and the ground, enhances the grip in corners, and reduces the risk of fishtailing.
Youdaoplaceholder0 suspension system coordination
Allow the use of softer shock absorbers to enhance handling while maintaining comfort, avoiding the jolting discomfort caused by traditional hard springs.
