What does a car flywheel assembly mean
The automotive flywheel assembly is a key component of the engine, mainly consisting of parts such as the crankshaft, flywheel, bearing bush, oil deflector, pulley and torsional shock absorber.
Core function
The main functions of the flywheel assembly include:
Youdaoplaceholder0 Energy storage and release : Energy is stored and released through the inertial force of the flywheel to balance the power output during engine operation, reduce vibration and improve running smoothness.
Youdaoplaceholder0 Power transmission : It connects the curved connecting rod mechanism with the gearbox, transmitting the rotational motion of the engine to the transmission system to drive the vehicle forward.
Youdaoplaceholder0 Starting assist : During startup, it meshes with the starter gear through the flywheel ring gear to help the engine start quickly.
Structural features

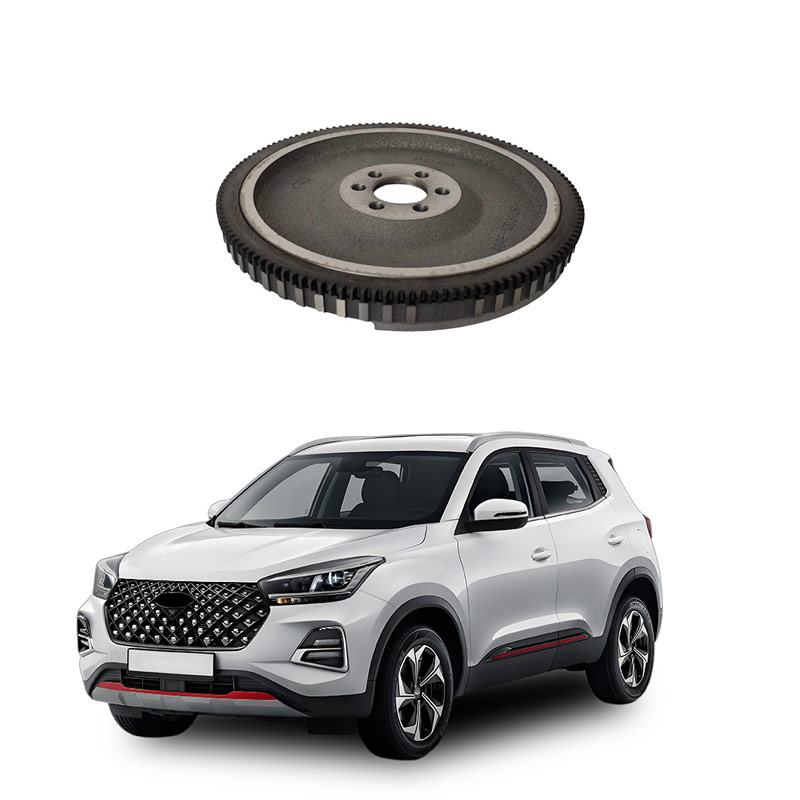

Flywheels are usually made of cast iron, with a gear ring on the outer edge. Some models are also equipped with torsional shock absorbers to further reduce the vibration and shock of the transmission system.
The main functions of the automotive flywheel assembly include the following three aspects:
Store energy and stabilize rotational speed
The flywheel stores the excess energy during the power stroke of the engine through its own moment of inertia and releases the energy during non-power strokes such as intake, compression and exhaust, keeping the crankshaft speed relatively stable and reducing speed fluctuations.
Drive the wheels
The flywheel is connected to the transmission through the clutch, transmitting the engine's power to the wheels and driving the vehicle forward. At the same time, as the driving component of the friction clutch, it ensures smooth power transmission.
Assist in engine starting
The flywheel gear ring on the outer edge of the flywheel meshes with the drive gear of the starter. Through external power (such as the starter), it drives the crankshaft to rotate, helping the engine to start.
Replacing the flywheel does not fall under major repairs.
Basis for fault diagnosis
The failure of the flywheel assembly should be judged based on the following phenomena:
There are scorch and scratch marks on the surface
The starting gear ring is severely worn or has broken teeth
The wear depth of the groove exceeds 0.5 millimeters
More than 4 teeth are damaged or the overall wear is severe
Common fault phenomena
Including difficulty in starting, clutch slippage, engine shaking, transmission imbalance of the transmission and abnormal noise of the flywheel.
Maintenance suggestions
If the above problems occur, the flywheel assembly should be replaced in time to avoid more serious mechanical damage caused by long-term friction.
The working principle of the automotive flywheel assembly mainly relies on the regulation of moment of inertia and energy storage, stabilizing the engine speed and transmitting power through the effect of inertia.
Energy storage and rotational speed regulation
The flywheel stores the excess mechanical energy during the engine's power stroke and releases it during non-power strokes (such as intake, compression, and exhaust), thereby balancing the fluctuations in the crankshaft speed. For instance, when the engine speed increases, the moment of inertia of the flywheel absorbs excess energy. When the rotational speed drops, the stored kinetic energy is released to maintain smooth operation.
Power transmission works in coordination with the clutch
The flywheel, as the driving component of the clutch, interrupts power transmission through the contact or separation of the friction surface with the clutch plate. When the clutch pedal is depressed, the flywheel separates from the clutch plate, and the power transmission is temporarily interrupted. After releasing the pedal, the flywheel resumes power transmission.
Activate the auxiliary function
The gear ring on the outer edge of the flywheel meshes with the starter gear to help the engine start. When starting, the starter drives the flywheel to rotate, which in turn rotates the crankshaft.
Shock Absorption and Transmission Optimization (Dual-Mass Flywheel)
Some models adopt a dual-mass flywheel structure, which connects the first mass (the flywheel body) and the second mass (the transmission system) through elastic elements. This can further reduce the transmission of powertrain vibrations to the gearbox and improve the smoothness of gear shifting.
If you want to know more, keep reading the other articles on this site!
