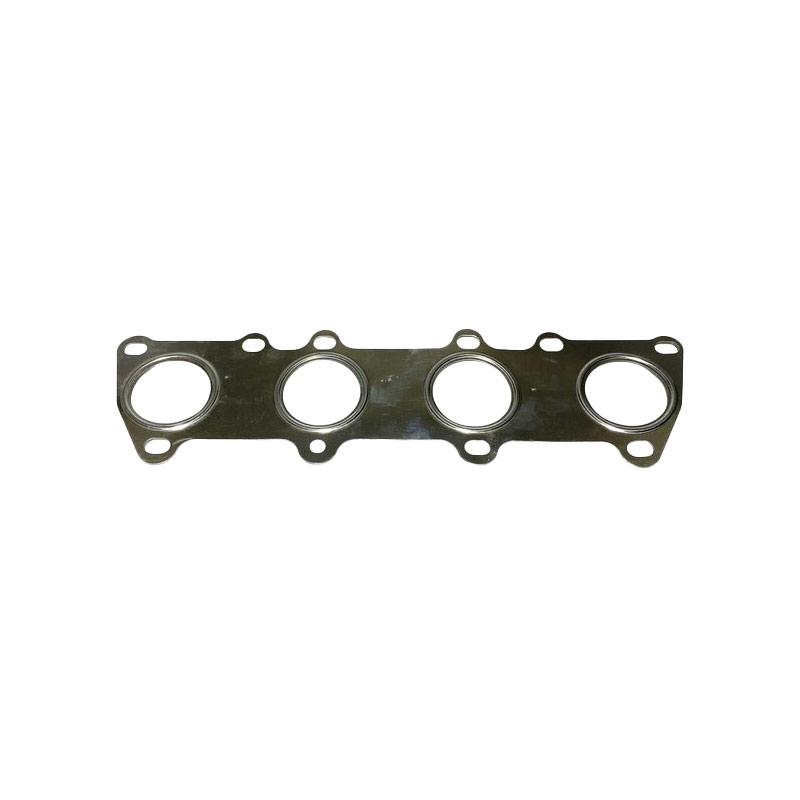

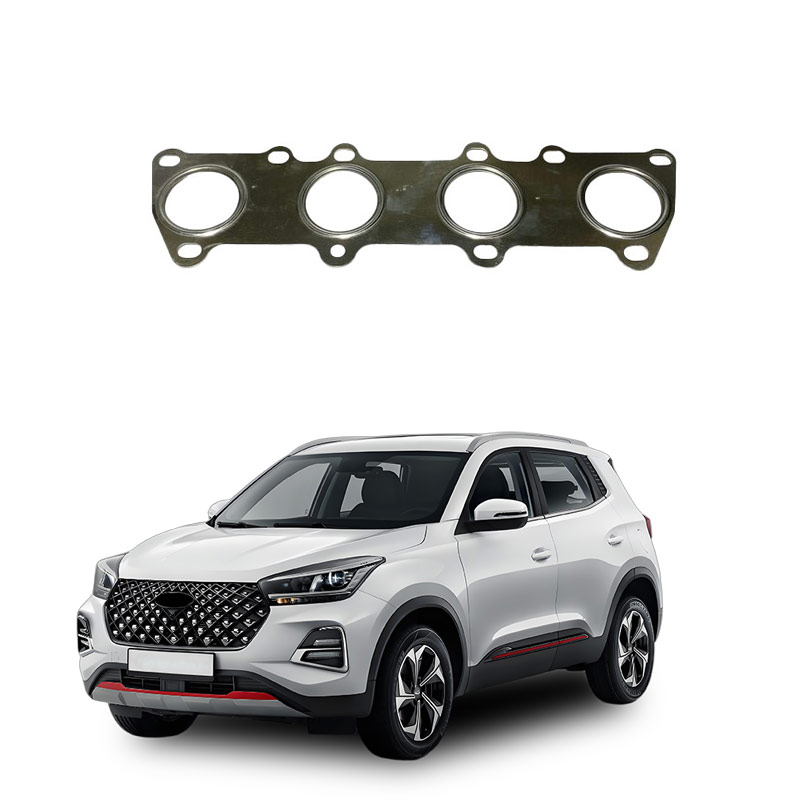

What is an exhaust manifold gasket
Exhaust manifold gaskets are important components in the automotive exhaust system, mainly undertaking sealing and heat insulation functions. It is usually composed of multiple layers of metal plates and insulating materials, installed between the exhaust manifold and the cylinder head to prevent high-temperature exhaust gas from being directly transmitted to other components in the engine compartment, thus playing a protective role.
Structural features
The exhaust manifold gasket adopts a three-layer structure: the upper layer is a sealing metal plate, the middle layer is an insulating material, and the lower layer is a sealing metal plate, ensuring there is no gap between the insulating cover and the cylinder head, effectively reducing the water temperature on the exhaust side of the cylinder head water jacket and minimizing the impact of temperature differences on the engine.
Fault manifestation
If the exhaust manifold gasket is damaged, the main manifestations are:
The noise in the engine compartment has increased
A leak in the exhaust system leads to a decrease in power
There may be a smell of incomplete combustion
Failure of heat insulation may cause overheating of surrounding components
The main functions of exhaust manifold gaskets include:
Sealed and leak-proof
The gasket is located between the exhaust manifold and the cylinder head, achieving a tight seal through a metal plate structure to prevent exhaust leakage and ensure normal engine exhaust.
Heat insulation protection
Non-metallic insulation materials (such as three-layer structure) are adopted to effectively prevent the heat conduction of high-temperature exhaust to components like the cylinder head and water pipes, reduce the temperature difference of the cylinder head water jacket, and extend the engine's service life.
Supporting structure
It has a relatively high rigidity, which can prevent bending deformation, keep the heat insulation cover tightly attached to the cylinder head, and further enhance the sealing effect.
The main manifestations of exhaust manifold gasket failure are increased noise, decreased power and air leakage, etc. The specific symptoms are as follows:
The noise increases
The damage of the gasket will lead to a decline in the sealing performance of the exhaust system, causing abnormal "hissing" or "puff" sounds when the airflow passes through the interface, especially more obvious during acceleration or sudden acceleration.
Power decline and fuel consumption increase
Air leakage can lead to an imbalance in the mixture ratio (the mixture is too lean), and the ECU cannot precisely control the air-fuel ratio, causing unstable idling, weak acceleration and other phenomena, and at the same time, fuel consumption will also increase accordingly.
Abnormal air leakage and exhaust
The damage of the exhaust manifold gasket may cause air leakage, resulting in a decrease in exhaust back pressure and affecting the engine power output. In severe cases, abnormal exhaust color (such as black smoke) or excessive emissions may occur.
Decline in heat insulation performance
If the gasket contains an insulating structure, its damage will cause the exhaust heat to be transferred to the engine cylinder head, increasing the temperature difference of water and possibly affecting the engine's lifespan.
It is recommended to promptly check the condition of the exhaust pipe interface and gasket upon discovering the above symptoms. If necessary, replace the damaged parts to ensure sealing and engine performance.
The working principle of exhaust manifold gaskets mainly realizes their functions through the following three aspects:
Sealed and leak-proof
The exhaust manifold gasket is installed between the exhaust manifold and the flange of the cylinder head exhaust port. It adopts an elastic sealing design, filling the processing error at the connection part through material deformation to prevent high-temperature exhaust gas leakage. If the gasket fails, it will cause air leakage, which may lead to damage to the surrounding components or high-temperature erosion.
Heat insulation protection
The gasket is equipped with an internal heat insulation cover structure (non-metallic material interlayer), which effectively isolates the direct heat conduction of high exhaust temperature to the cylinder head, reduces the water temperature on the exhaust side of the cylinder head water jacket, and decreases the temperature difference between the intake side and the exhaust side, thereby extending the service life of the engine.
Structural support
The gasket adopts a three-layer metal plate composite structure (upper sealing layer, two insulation layers, and lower support layer), ensuring that the insulation cover is closely attached to the cylinder head after installation and avoiding the formation of gaps caused by vibration.
