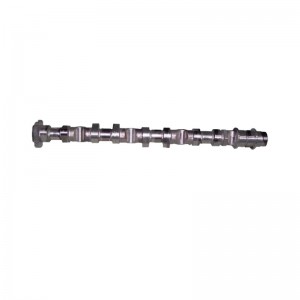

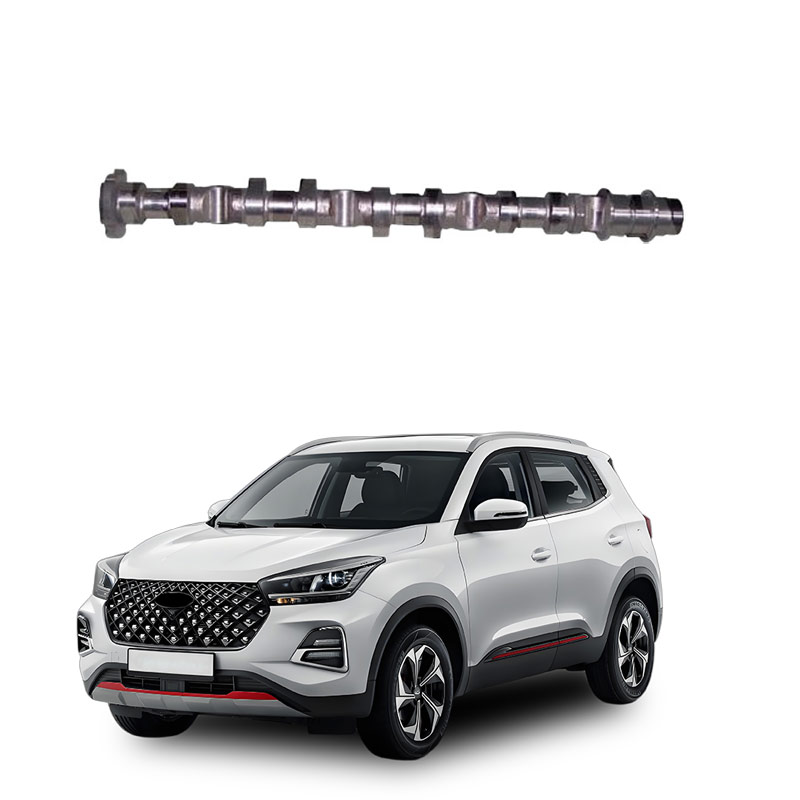

What is an automotive exhaust camshaft assembly
The automotive exhaust camshaft assembly is a core component of the engine's valve train, mainly responsible for controlling the opening and closing times of the valves to ensure efficient exhaust.
Core function
By adjusting the timing of valve opening and optimizing the intake efficiency of the engine under different operating conditions, it directly affects power output and fuel economy. For instance, closing the valves in advance when driving at low speeds can reduce the backflow of exhaust gases, while delaying the closing during high-speed driving can enhance power performance.
Structural composition
It includes the stator, rotor, control oil passage and actuator, and regulates the phase change through the oil pressure. Its design needs to take into account both strength and precision, and the material is mostly alloy steel to withstand high-speed operation and huge torque.
"Technology application"
Some models adopt AVS (Variable Valve Lift) technology, which dynamically adjusts the opening and closing angles of the valves through an electronic control unit, further optimizing engine efficiency. For instance, Volkswagen/Audi achieves high-torque output at low speeds through the electronic valve lift switching of the exhaust camshaft.
The function of the automotive exhaust camshaft assembly is to control the opening and closing timing of the exhaust valve, ensuring that the exhaust gas is promptly discharged from the cylinder, which directly affects the engine's power performance and emission efficiency.
Core function
Through the rotational movement of the camshaft, the exhaust valves are driven to open and close in a specific sequence, precisely controlling the time, speed and lift of exhaust gas discharge. This is synchronized with the movement of the piston to ensure the efficient operation of the engine.
Key role
Youdaoplaceholder0 Optimize exhaust efficiency : Ensure that exhaust gases are discharged at the best time, reduce the impact of residual gases on combustion efficiency, and enhance power output.
Youdaoplaceholder0 Reduce emission pollution : Precisely control the exhaust process to reduce the emission of incompletely combusted waste gas, meeting environmental protection requirements.
Youdaoplaceholder0 adapt to different operating conditions : Adjust valve parameters (such as lift) according to engine load to balance fuel economy and power performance.
Technological extension
Some models' camshafts also integrate variable valve timing (VVT) or lift (VVL) technology, which further optimizes engine efficiency by adjusting the CAM profile.
Faults in the automotive exhaust camshaft assembly are typically manifested as:
Youdaoplaceholder0 Difficulty in starting : Ignition difficulty or inability to start, the ECU cannot obtain the camshaft position signal, resulting in ignition timing confusion
Youdaoplaceholder0 Power decline : weak acceleration, idle vibration, incomplete combustion leading to abnormal cylinder power output
Youdaoplaceholder0 Increased fuel consumption : the ECU uses fixed fuel injection parameters, resulting in poorer fuel economy
Youdaoplaceholder0 Emission deterioration : excessive exhaust gas, black smoke emission, OBD system triggers fault code (such as P0014)
Common causes
Youdaoplaceholder0 solenoid valve failure : Damage to the solenoid valve of the exhaust camshaft actuator can lead to regulation failure (a common fault, accounting for more than 60% of such problems)
Youdaoplaceholder0 Insufficient oil/contamination : Insufficient oil pressure or impurity intrusion affects the variable timing system
Youdaoplaceholder0 Loose plug/line fault : Oxidation or loosening of the solenoid valve plug causes signal transmission interruption
Youdaoplaceholder0 sprocket damage : The wear of the camshaft VVT actuator sprocket will affect the idle speed stability of the engine
Youdaoplaceholder0 Sensor failure : A dirty camshaft position sensor or installation issues can also cause similar symptoms
Solution
Youdaoplaceholder0 Check the solenoid valve : read the fault code with a diagnostic tool, measure the resistance value of the solenoid valve (normally about 0.13Ω), and replace the damaged part
Youdaoplaceholder0 Clean the sensor : Remove the camshaft sensor to clean the oil stains or foreign objects. When reinstalling, make sure the gap is appropriate
Youdaoplaceholder0 Check the timing system : confirm whether the valve timing is accurate. If necessary, adjust the chain or replace the tensioner
Youdaoplaceholder0 Add engine oil : Ensure the oil level is normal and free of impurities, and replace the oil filter regularly
Youdaoplaceholder0 Professional maintenance : When there are issues related to sensor installation or wiring, they should be handled by professionals
If the fault light remains on or the symptoms do not ease, it is recommended to contact a professional maintenance institution for inspection as soon as possible.
