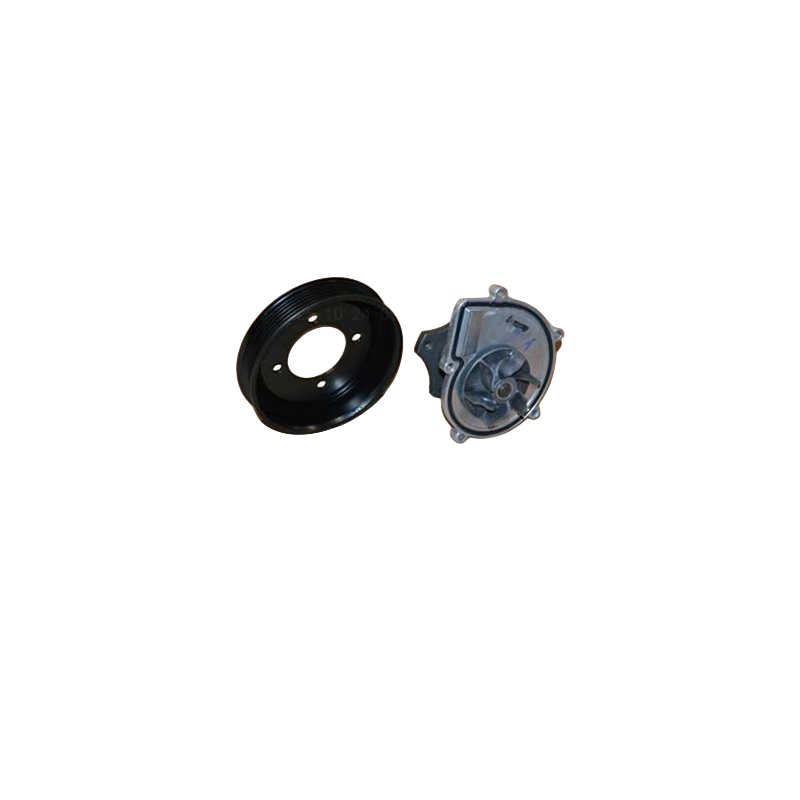

The core role of the automotive water pump and sealing ring assembly
The automotive water pump is the "heart" of the engine cooling system, while the sealing ring is the "loyal guardian" that ensures its stable operation. The two work together, jointly safeguarding the temperature balance of the engine.
From the perspective of the function of the water pump, it transmits power through the engine crankshaft and drives the impeller to rotate at high speed. Under the action of centrifugal force, the coolant is drawn from the radiator and pressurized before being pumped into the water jacket of the engine cylinder block. The coolant absorbs the heat generated by the engine's operation in the cylinder block and then flows back to the radiator for cooling. This cycle repeats, ensuring that the engine always operates within the optimal temperature range of 85°C - 95°C. Once the water pump stops working, the coolant cannot circulate, and the engine temperature will soar in a short period of time. Mildly, it will trigger a high-temperature alarm; severely, it can cause fatal faults such as piston pulling the cylinder or the cylinder block cracking.
The sealing ring, as a key sealing component of the water pump, mainly fulfills two major responsibilities. Firstly, it prevents the leakage of coolant, which tightly adheres to the connection parts between the pump housing, the impeller, and the shaft, blocking the path for coolant to leak outwards, ensuring the stability of the pressure in the cooling system and sufficient coolant supply. Secondly, it isolates impurities and lubricating grease, preventing external dust and sand from entering the pump interior and wearing down the components, as well as preventing the mixture and emulsification of lubricating grease and coolant, maintaining the lubrication effect of the bearings and prolonging the service life of the pump.
Common Fault Causes and Manifestations
Water pump failure
Impeller damage: Using low-quality coolant over a long period or failing to replace the coolant on time will cause the additives in the coolant to be depleted, leading to increased internal corrosion. The surface of the impeller will develop rust, cracks, or even blade fractures. After the impeller is damaged, the efficiency of coolant circulation will significantly decrease, causing abnormal increases in engine water temperature. The water temperature gauge pointer on the dashboard will rapidly rise to the red zone, and in severe cases, there may be a "boiling over" phenomenon of coolant.
Bearings wear: If the lubricating grease is insufficient or coolant leaks into the bearing chamber during long-term high-speed operation of the pump, it will cause the rolling balls of the bearings to wear and the clearance to become too large. At this time, there will be "buzzing" or "clattering" noises in the engine compartment, especially more pronounced at idle speed. When the accelerator is pressed, the frequency of the noise will change with the rotational speed. Excessive wear of the bearings will also cause the pump shaft to shake, further intensifying the friction between the impeller and the housing.
Pulley issues: If the engine pulley driving the water pump is too tight, it will increase the load on the pump shaft, accelerating the wear of the bearings and the impeller; if it is too loose, it will slip, resulting in insufficient pump speed and a slower coolant circulation rate. The obvious manifestation of a pulley failure is abnormal fluctuations in water temperature, with the water temperature rising slowly after cold start and fluctuating during driving.
Sealing ring failure
The most common cause of sealing ring failure is aging. As the vehicle ages, the material of the sealing ring will gradually lose elasticity, resulting in a decline in sealing performance, and coolant begins to leak from the connection points between the pump and the engine or the shaft seal. If the ground shows pink or green coolant traces and the coolant level in the expansion tank keeps dropping, it is likely that the sealing ring has failed. In addition, the corrosive nature of inferior coolant will accelerate the aging of the sealing ring, and improper application of sealing glue during installation, such as excessive application or uneven application, can also lead to poor sealing and leakage problems.
Fault Prevention and Maintenance Suggestions
To reduce the risk of faults in the pump and sealing ring assembly, car owners should perform regular maintenance. Firstly, strictly follow the vehicle manual requirements to replace high-quality coolant every 2 years or 40,000 kilometers to avoid using inferior products; secondly, regularly check the tension and wear of the engine pulley belt, and replace it in time if cracks or looseness are found; at the same time, pay attention to whether there are coolant leakage traces around the pump during each maintenance and listen for any abnormal noises in the engine compartment.
If a fault occurs, it should be repaired promptly. For sealing ring leakage, simply replacing the same model of high-quality sealing ring can solve the problem; if the impeller of the pump is damaged or the bearings are excessively worn, usually the pump assembly needs to be replaced. When repairing, it is recommended to choose a reputable repair institution to ensure the quality of the parts and installation process, avoiding recurrence of faults due to improper repair.
