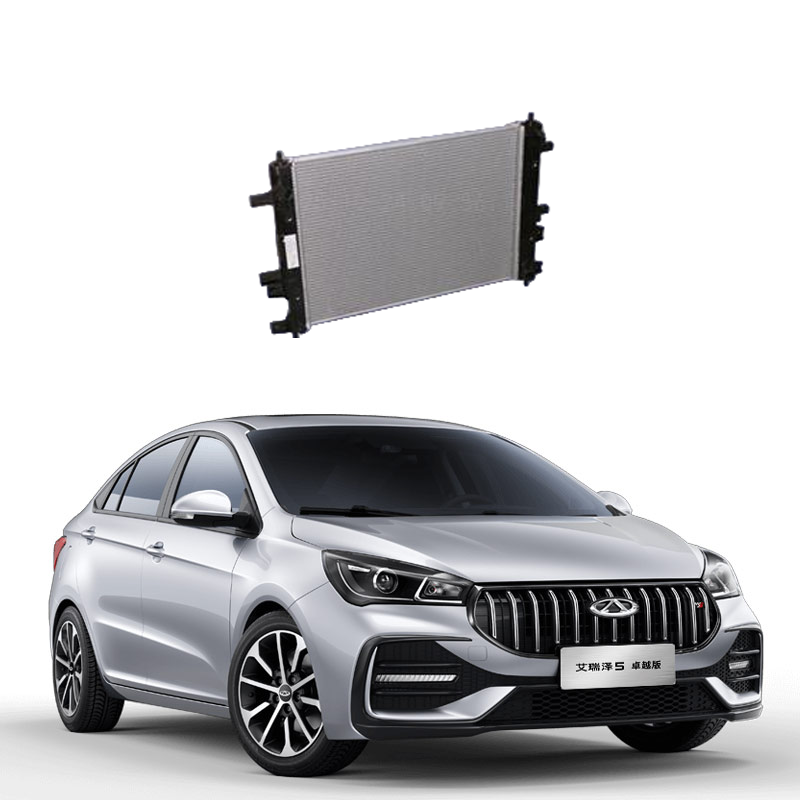

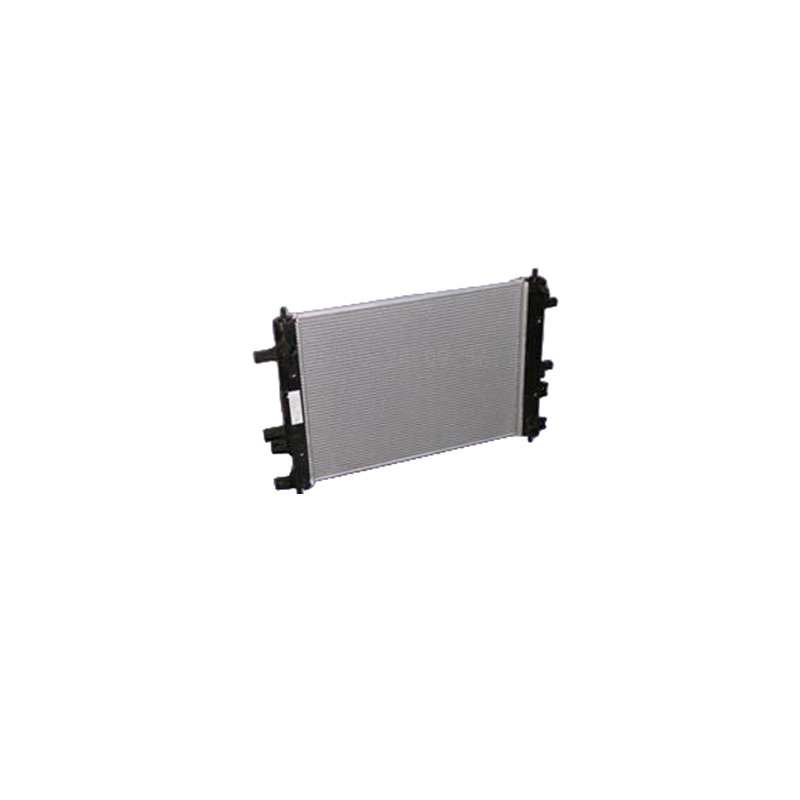

Car radiator assembly: The "temperature control guardian" of the engine
The car radiator assembly is the core component of the water-cooled engine cooling system and can be regarded as the "temperature control guardian" of the engine. It is mainly composed of the radiator core, fan, wind deflector, upper and lower water chambers, and connecting pipelines. Through the heat exchange between the coolant and the air, it precisely regulates the engine's operating temperature, ensuring that it always remains within the optimal operating range of 85°C - 95°C.
When the engine is working, only 30% - 40% of the heat generated by fuel combustion is converted into power, and the rest needs to be dissipated through the cooling system. The working principle of the radiator assembly is like an efficient heat exchange factory: The coolant is driven by the water pump into the engine water jacket, absorbs the heat from the cylinder block and cylinder head, and then flows through the upper pipe into the radiator core. At this time, the fan rotates to drive the air to flow at high speed through the radiator core, and the heat carried by the coolant is released into the atmosphere. The cooled coolant returns through the lower pipe to the water pump, completing the cycle. During this process, the thin-walled copper tubes and fins of the radiator core maximize the heat exchange area, and the fan and wind deflector optimize the air flow path, jointly ensuring the heat dissipation efficiency.
In addition to the basic heat dissipation function, the radiator assembly also performs multiple critical functions. It can prevent the expansion and deformation of engine components and the decrease in engine oil viscosity caused by overheating, effectively extending the engine's lifespan; by maintaining a stable operating temperature, it improves fuel combustion efficiency and reduces exhaust emissions; some models' radiators also integrate water storage functions, providing a stable reserve of coolant for the cooling system and preventing the deterioration of the cooling effect due to fluctuating liquid levels.
Fault warning: The "health signal" of the radiator assembly
Although the radiator assembly has a sturdy structure, it may still experience faults when exposed to high temperatures and high pressures for a long time. Understanding the typical manifestations of these faults can help car owners identify problems in time and avoid engine damage.
Engine overheating
This is the most obvious signal of a radiator assembly fault. When the radiator core is clogged, the fan stops rotating, or the coolant leaks, the heat cannot be effectively dissipated, and the engine temperature will rise sharply. The indicator light on the dashboard will quickly point to the red danger zone, and even "boiling" may occur. If not dealt with in time, it may lead to severe mechanical failures such as piston sticking and cylinder head deformation.
Coolant leakage
The sealing gasket of the upper and lower water chambers of the radiator becomes old, the core tube corrodes and perforates, or the connection pipeline breaks. This will cause coolant leakage. Owners can determine this by observing whether there are pale green or pink water stains on the ground or checking if the expansion water tank liquid level drops rapidly. Coolant leakage not only affects the heat dissipation effect but may also cause the water pump to run continuously due to low liquid level, exacerbating component wear.
Abnormal cooling fan
The cooling fan is an important component of the radiator assembly. Its faults mainly manifest as not rotating, low rotation speed, or abnormal noise. Electronic fans may be caused by damaged temperature sensors, relay failures, or burned motors; silicone oil fan clutches fail, causing the fan to not automatically adjust its rotation speed according to temperature. Abnormal fan operation directly leads to a decrease in heat dissipation capacity, especially during idle or low-speed driving, when the risk of engine overheating increases significantly.
Power loss and increased fuel consumption
When the radiator's cooling efficiency is insufficient, the engine remains in a high-temperature environment for a long time, resulting in a decrease in combustion efficiency, a reduction in engine oil lubrication performance, and phenomena such as weak power and slow acceleration. At the same time, to maintain normal operation, the computer will increase the fuel injection volume, causing abnormal fuel consumption increase.
Fault diagnosis and daily maintenance
When facing radiator assembly faults, car owners can initially determine the problem by simple troubleshooting. If the engine overheats, they should first check the coolant level. If it is insufficient, add the same type of coolant and observe. If the level is normal, check if the fan is running and if the surface of the radiator is clogged with dust or willow fluff. For coolant leakage, after the engine has cooled down, you can visually inspect the pipes and water chamber for any leakage marks, or use a pressure tester to check the system's sealing performance.
Regular maintenance is the key to extending the lifespan of the radiator assembly. It is recommended to check the coolant level and quality once every 3 months or 5,000 kilometers, ensuring it is within the MAX-MIN scale and without turbidity or discoloration; clean the debris on the radiator surface once a year, and use high-pressure air to blow from the back to the front to avoid damaging the radiator fins; replace the coolant every 2 years to prevent internal corrosion caused by coolant deterioration; at the same time, regularly check the tension of the fan belt and the operation of the fan, and repair any abnormalities in time.
