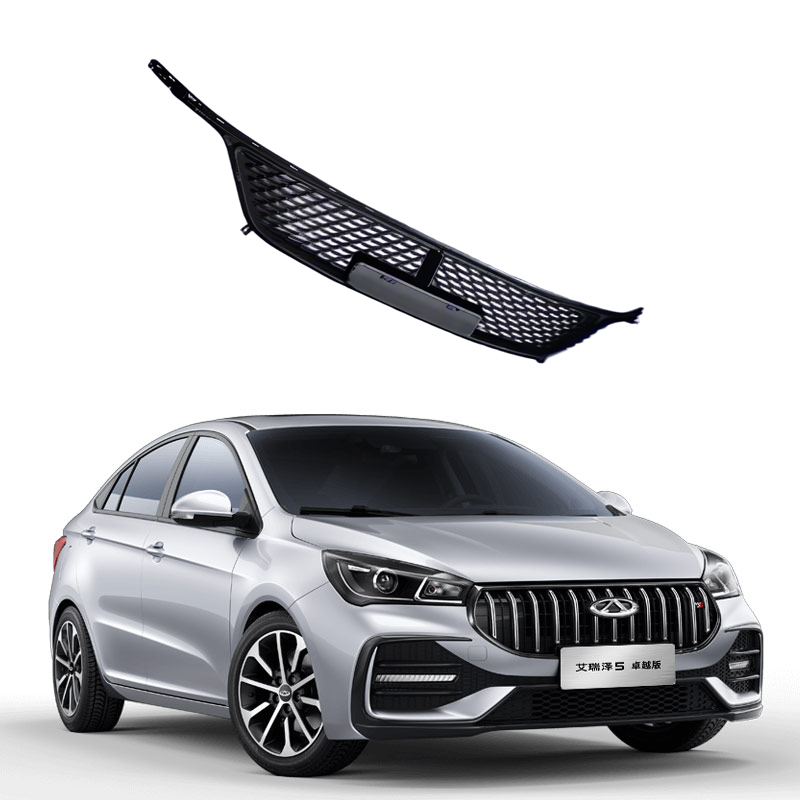

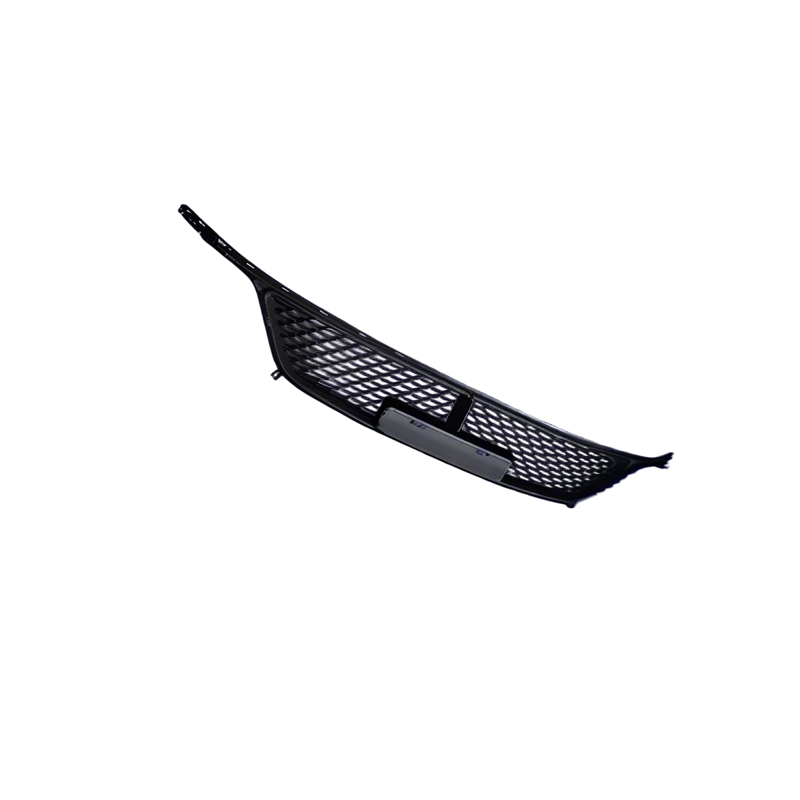

The core function of the central air intake grille in a car
The central air intake grille, seemingly just a decorative component on the front of the car, is actually a crucial device that ensures the normal operation of the vehicle. Its function spans multiple dimensions such as power, safety, energy efficiency, and brand recognition.
In terms of power and heat dissipation, it is the "air supply station" for the engine. When the engine is working, it requires a large amount of air for fuel combustion. The air intake grille can stably introduce fresh air, ensuring the complete combustion of fuel and maintaining stable power output. At the same time, the engine generates a lot of heat. The air intake grille guides cold air through components such as water tanks and condensers, combined with the cooling fan, to remove the heat and keep the engine always operating within the optimal temperature range of 85-95°C. Especially in hot summer days or when driving at high speeds for a long time, if the air intake grille does not dissipate heat properly, it is very likely to cause the engine water temperature to rise excessively, leading to power loss or even cylinder damage and vehicle (ruin).
The active air intake grille has achieved intelligent control on this basis. It can automatically adjust the opening and closing angle according to signals such as engine temperature and vehicle speed： it closes during cold start to reduce heat loss， which can shorten the warm-up time in winter by 30%-40%； it partially closes at high speeds to reduce the drag coefficient by 0.02-0.05 Cd， equivalent to saving 0.2-0.3 liters of fuel per 100 kilometers， and the range of pure electric vehicles can be increased by 5%-7%.
In terms of safety protection， the air intake grille is the "protection barrier" of the engine compartment. Its 5-10 millimeter grid gap can effectively intercept flying stones， branches， insects， etc. during driving， preventing these objects from damaging core components such as water tanks and cooling fans. If the grille is damaged or deformed， foreign objects directly invade the engine compartment， which may cause the water tank to rupture， the fan blades to break， and then lead to engine overheating， power interruption， etc. dangers.
In addition， the air intake grille is also the "visual identity" of the brand. The classic designs such as the double kidney grille of BMW， the hexagonal grille of Audi， and the star-shaped grille of Mercedes-Benz， after market research and design iteration， have become the core carriers of brand recognition. The recent popular innovative designs such as parametric scales and star-shaped dot patterns not only strengthen the visual memory points but also enhance the three-dimensionality of the vehicle body through light reflection， becoming an important part of the vehicle's aesthetic design.
Common fault types and solutions
The air intake grille is exposed to the outside and is prone to various faults due to road conditions and environmental influences. If not dealt with in time， it will cause chain effects on vehicle performance.
Mechanical damage
This is the most common fault type， mostly caused by collisions， external force impacts， or aging， resulting in the cracking or deformation of the grille. Minor damage can be repaired by using epoxy resin + glass fiber cloth bonding. If the metal grille deforms by more than 5 millimeters， it needs to be replaced.
Abnormal active grille function
The active air intake grille relies on sensors and motors to work together. The fault is manifested as being unable to automatically open or close， with the instrument indicating a fault code. Common causes include the failure of the temperature sensor， resulting in inconsistent data flow with the actual temperature and inability to transmit the correct signal to the driving computer； motor or line faults， such as mud and sand getting stuck in the gear set after water immersion， motor water short circuit， etc. The failure rate of non-luxury brand auxiliary factory motors can reach 40%. During repair， a diagnostic instrument is used to read the sensor data， replace the damaged parts， and it is recommended to handle it at a 4S store during the warranty period， and professional repair shops can save about 60% of the cost after the warranty period.
Grille jamming
If the grille flap or rake is jammed， it will cause frequent starts， inability to close， or abnormal sounds. It is mostly due to the loose spring of the rake and too large gap with the grille surface； or the grille bars are blocked by leaves， mud， or willow fluff. Daily maintenance requires using a low-pressure water gun to rinse the grille every 5，000 kilometers to avoid direct high-pressure shooting at the motor； after starting in an environment of 5°C or below， turn on the heater for 3 minutes to prevent the flap from freezing and getting stuck. When jamming occurs， you can first clean the foreign objects and lubricate the guide rail. If it still cannot be solved， the flap motor needs to be reset or the actuator needs to be replaced.
Fault chain impact If the air intake grille malfunctions and is ignored, it can lead to more serious problems. A clogged grille can cause the engine compartment temperature to exceed 120℃, resulting in the water tank boiling over and the cylinder block being damaged; if the active grille is stuck halfway open, it may cause insufficient air intake during high-speed cruising, leading to detonation; when starting in low temperatures, if the grille is fully open, it will extend the engine warm-up time by twice and increase fuel consumption to 20L/100km. Therefore, it is necessary to check monthly whether the grille is deformed or stuck; for active grille models, the working status can be viewed through the vehicle's on-board system. In case of any abnormalities, timely maintenance should be carried out.
