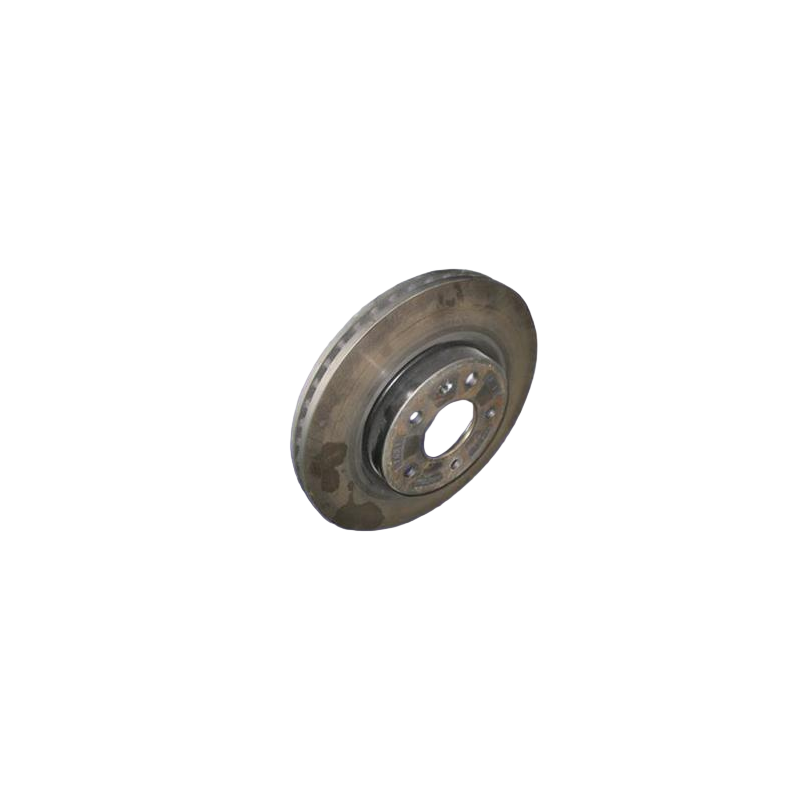

The core role of the front brake disc in the automotive braking system
In the automotive braking system, the front brake disc is one of the key components that ensure driving safety, and it bears far more braking pressure than the rear brake disc. According to calculations, during vehicle braking, the front brake disc needs to bear 70%-80% of the braking force. This is due to the physical characteristic that the vehicle's center of gravity shifts forward during braking - the weight of the front part of the vehicle suddenly increases to about 70% of the total weight of the vehicle. The front brake disc must convert the kinetic energy of the vehicle into heat energy through high-strength friction with the brake pads, quickly achieving deceleration or stopping.
The function of the front brake disc is not limited to "deceleration"; it is also the key carrier for the stable operation of the braking system. It is the core platform for kinetic energy conversion, generating heat through friction to consume the vehicle's inertia; at the same time, most front brake discs adopt a ventilated disc design, with a hollow structure that can accelerate air convection and quickly dissipate the 500-700℃ high temperature generated by friction, avoiding brake failure caused by heat attenuation; moreover, it is the execution terminal for electronic auxiliary systems such as ABS, cooperating with sensors to adjust the braking force in real time to ensure that the wheels do not lock up during emergency braking and maintain vehicle control stability.
Compared with the rear brake disc, the design of the front brake disc pays more attention to performance adaptation. Usually, the diameter of the front brake disc is larger, such as the front brake disc of the Corolla with a diameter of 287mm, while the rear disc is only 255mm. The larger friction area can provide more braking force; the material mostly uses HT200 or HT250 gray cast iron, and some high-end models use alloy cast iron to ensure sufficient strength and wear resistance at high temperatures and high pressures; structurally, most front brake discs are equipped with double-piston calipers, which can apply braking force more evenly and adapt to frequent braking scenarios such as urban commuting and mountain driving.
Common faults and causes of the front brake disc
Brake vibration and abnormal noise
This is the most common fault manifestation of the front brake disc, mainly due to the deviation of the planearity of the disc surface. According to industry standards, when the planearity error of the working surface of the brake disc exceeds 0.05mm, the contact area between the brake pad and the disc surface will change periodically with the rotation of the disc, resulting in fluctuations in braking torque, and subsequently causing steering wheel vibration and body vibration. Frequent emergency braking is one of the main causes. During braking, the temperature of the disc surface surges to over 600℃, and the disc surface is prone to thermal deformation under high temperature; long-term wear of grooves, steps, or improper torque tightening during installation can also exacerbate the planearity deviation.
The causes of abnormal noise are more diverse: rust or accumulation of dirt on the surface of the brake disc, when it rubs against the brake pad, will produce a sharp metallic scraping sound; when the brake pad wears to the limit thickness, the metal back plate will come into direct contact with the disc, emitting a continuous abnormal noise; in addition, loose brake disc and hub screws, or improper adjustment of the braking system, resulting in an abnormal distance between the brake pad and the disc surface, may also cause intermittent abnormal noise.
Thermal degradation and performance decline
During continuous downhill driving or frequent emergency braking, the front brake disc remains in a high-temperature state for a long time. If the heat dissipation is not timely, a thermal degradation phenomenon will occur - the braking torque significantly decreases, the brake pedal becomes soft, and the braking distance is prolonged. This is because the friction coefficient of the brake disc material decreases under high temperature, and the disc surface may develop thermal cracks, further weakening the braking performance. Blockage of the ventilation disc or excessive moisture content in the brake fluid (over 3%) leading to a decrease in heat dissipation efficiency are common indirect causes of thermal degradation.
Excessive wear and insufficient thickness
The normal wear life of the front brake disc is approximately 8-120,000 kilometers, but frequent emergency braking, long-term driving in congested traffic, and other bad driving habits will significantly shorten its service life. When the thickness of the brake disc wears down to less than 1/3 of the original thickness (usually the original thickness is 22-30mm, and it needs to be vigilant when it wears down to less than 22mm), its strength will significantly decrease, not only reducing the braking effect but also potentially breaking during braking, causing serious safety accidents. In addition, if the brake pad material is too hard and there are foreign objects mixed in, it will accelerate the wear of the brake disc, forming deep grooves.
Fault diagnosis and daily maintenance suggestions
When dealing with a front brake disc failure, the priority should be followed for troubleshooting: First, check the condition of the disc surface and measure the flatness using a dial indicator. If the deviation exceeds the standard, the surface layer of 0.5-1mm can be removed using a disc disc (to restore the flatness), and if the wear is severe, replacement is necessary; second, check the thickness of the brake pad. If the remaining thickness is less than 3mm, replacement is mandatory. At the same time, ensure that the material of the brake pad matches that of the brake disc; finally, check the hydraulic state of the braking system. Regularly replace the brake fluid (every 2 years or 40,000 kilometers), ensuring the moisture content is below 3%, and drain the air from the system.
During daily maintenance, avoid directly washing the vehicle when the brake disc is hot to prevent disc deformation caused by the cold-hot shock; check the thickness and flatness of the brake disc once every 30,000 kilometers, and calibrate the tire dynamic balance once every 10,000 kilometers to prevent the tire imbalance from exacerbating the braking judder; develop good driving habits, reduce frequent emergency braking, and use the engine braking to assist in deceleration during long downhill sections to reduce the workload of the front brake disc.
