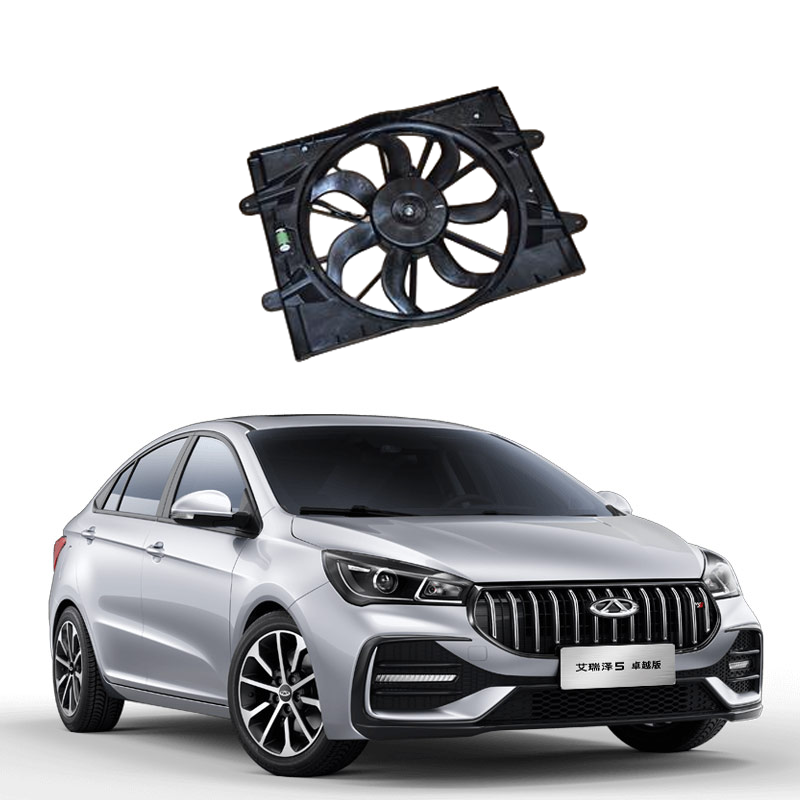

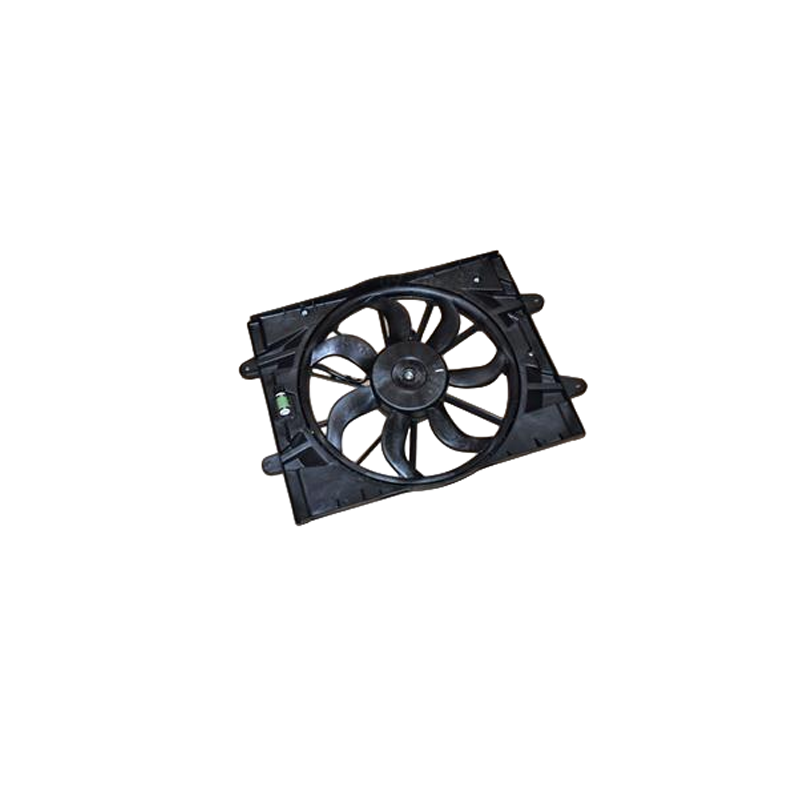

The core function of the automotive cooling fan assembly
The automotive cooling fan assembly is a key component of the engine cooling system. Its core mission is to ensure that the engine always operates within an appropriate temperature range, serving as the "temperature control guardian" of the engine.
From a basic perspective, it enhances the cooling efficiency of the radiator by accelerating air flow. When the engine is running, the combustion of fuel in the cylinders generates a large amount of heat. If this heat is not promptly dissipated, it will cause the engine to overheat. In mild cases, this leads to a decrease in power and an increase in fuel consumption; in severe cases, it can cause catastrophic failures such as seizing or explosion. The cooling fan assembly, under the signal feedback of the water temperature sensor, intelligently adjusts its rotational speed: when the water temperature is low, the fan operates at a low speed or stops completely to prevent excessive engine cooling; when the water temperature reaches the critical value, the fan will rotate at high speed, accelerating the air circulation on the surface of the radiator and allowing the coolant to efficiently remove heat, maintaining the engine at an optimal working temperature of around 90°C.
In complex operating conditions, the role of the cooling fan assembly becomes even more prominent. For example, on congested urban roads, when the vehicle is idling, the natural wind has little effect on heat dissipation. At this time, the fan continues to operate to "cool down and relieve the heat" for the engine; when the air conditioning is turned on, it can also assist the condenser in cooling, ensuring the efficiency of the air conditioning system. For electric vehicles, the cooling fan assembly also bears the responsibility of cooling the core components such as batteries and motors, directly affecting the vehicle's range and battery lifespan.
Furthermore, with the development of automotive technology, intelligent cooling fan assemblies can precisely adjust the cooling power based on multiple dimensions of data such as engine load, vehicle speed, and environmental temperature, ensuring the cooling effect while reducing their own energy consumption, aligning with the current trend of energy conservation and environmental protection in the automotive industry.
Common faults and solutions of the cooling fan assembly
Electronic control system failure
The electronic control system is the "brain" of the cooling fan assembly. Once it fails, it will directly affect the normal operation of the fan. Common faults include failure of the temperature control switch, burnout of relay contacts, and abnormal program of the control module. For example, after the internal contacts of the temperature control switch are burned out, they cannot accurately sense the coolant temperature, causing the fan to either never start or operate at a high speed continuously. In such cases, the owner can first use a multimeter to detect the circuit continuity, and preliminarily check the easily damaged components such as fuses and relays. If the problem lies in the control module, a professional diagnostic tool should be used to read the fault code for precise repair or replacement.
Mechanical structure jamming
Mechanical jamming is a common fault of the cooling fan assembly, often caused by foreign objects entangling or bearing wear. During vehicle operation, debris such as tree limes, leaves, and insect corpses can easily adhere to the radiator surface. If not cleaned regularly, they may be sucked into the fan, causing the blades to get entangled with the foreign objects. This can result in minor noises or severe damage to the motor due to excessive load. In addition, after long-term operation, the lubricating grease of the fan bearings gradually dries out, causing wear and noise, and in severe cases, it may even jam and stop rotating. During regular maintenance, fans should be cleaned regularly, and the condition of the bearings should be checked after 5-8 thousand kilometers of driving. If necessary, the assembly should be replaced.
Power supply system anomaly
The power supply system is the "power source" of the cooling fan assembly. Problems such as insufficient battery voltage, poor line contact, and blown fuses can all cause the fan to fail to work properly. The wiring harnesses of older vehicles are prone to oxidation and corrosion, resulting in poor current transmission; modifying large-power fans may exceed the original vehicle's wiring load, increasing the risk of faults. The owner can carry a spare fuse with them. When the fan stops rotating, first check if the fuse is blown. If it is confirmed to be a wiring problem, clean the oxidized areas or replace the wiring harness to avoid major problems caused by minor faults.
Typical manifestations of faults
Cooling fan assembly faults often emit obvious "warning signals". The most common issue is that the engine water temperature is too high. The water temperature gauge on the dashboard shows a pointer close to or exceeding the red line. If not dealt with promptly, this could lead to severe damage to the engine. The second issue is abnormal noises. When the fan blades are worn, deformed, or the bearings are damaged, sharp friction sounds or buzzing noises will be produced. Additionally, poor air conditioning cooling performance may also be related to fan failure. Because the fan cannot effectively dissipate heat for the condenser, it will cause poor refrigerant circulation and a decrease in cooling efficiency.
