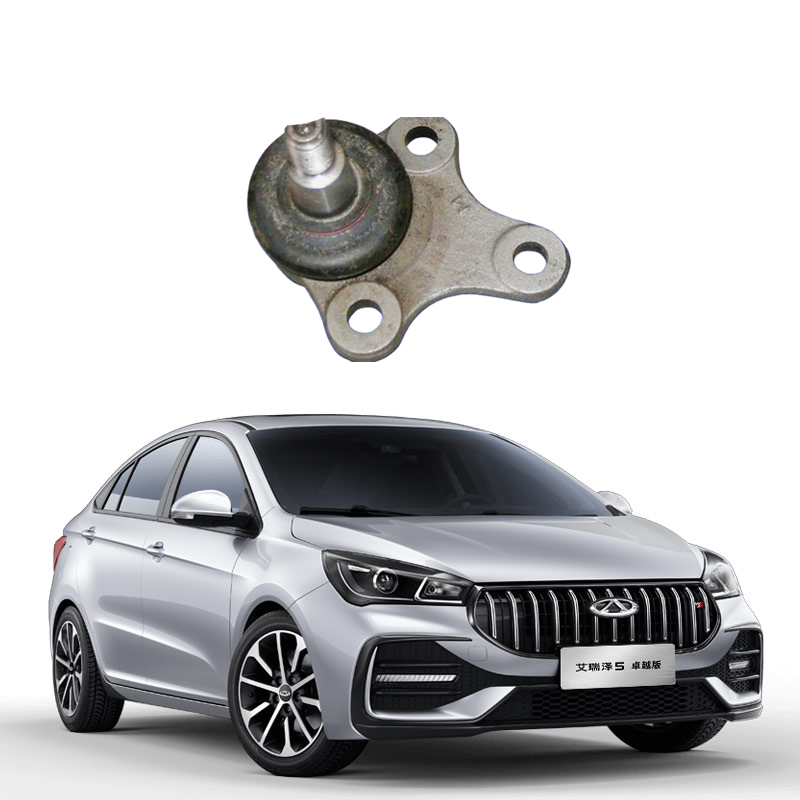

The core role of the automotive control arm ball joint assembly
In the automotive chassis suspension system, the control arm ball joint assembly is undoubtedly the "central hub". It connects the control arm with the steering knuckle, just like the knee joint in the human body. It not only bears the weight of the vehicle but also provides support for the flexible movement of the wheels. Its functions are mainly reflected in the following three aspects.
Precise guidance, ensuring stable wheel alignment
The control arm ball joint assembly, through a combination of rigid structure and elastic connection, strictly limits the movement trajectory of the wheels in three-dimensional space. When the vehicle turns or is subjected to lateral forces, it can effectively constrain the range of changes in the front toe angle and camber angle of the wheels, ensuring a uniform tire contact area. According to industry test data, a qualified ball joint assembly can control the deviation of wheel alignment parameters within ±0.5°, avoiding tire wear due to inaccurate parameters. Once the ball joint assembly fails, the wheel alignment parameters will undergo dynamic drift, causing the steering wheel to deviate during straight-line driving and significantly reducing the stability of the vehicle during high-speed driving.
Force transmission, accepting multiple complex loads
During vehicle operation, the wheels will be subjected to vertical loads, longitudinal traction or braking forces, as well as lateral centrifugal forces. These forces need to be transmitted to the vehicle body through the control arm ball joint assembly. It needs to bear 60%-80% of the vehicle's weight in vertical load, a peak of 1.2 times the vehicle weight in longitudinal force, and more than 1 times the vehicle weight in lateral force during cornering. To cope with these complex loads, the ball joint is usually made of alloy steel with good hardenability, and its surface is hardened through high-frequency quenching and other treatments, possessing sufficient strength and wear resistance to ensure the smoothness and accuracy of force transmission.
Dynamic coordination, optimizing suspension geometric performance
When the vehicle passes over bumpy roads, the control arm ball joint assembly drives the wheels to perform up and down oscillations, with the maximum oscillation amplitude reaching ±120mm. It cooperates with shock absorbers and spiral springs to absorb and release vibration energy. In extreme driving scenarios, its trajectory design ensures that the wheels have a reasonable camber angle and rate of change of rearward inclination, enabling the vehicle to have a 0.8-1.2 N·m/° return force moment during steering. For example, the ball joint assembly in the double wishbone suspension system can keep the tires in a nearly vertical contact state during the compression stroke of the wheels, significantly improving grip.
Common faults and solutions of automotive control arm ball joint assemblies
The control arm ball joint assembly, which is in complex working conditions for a long time, is prone to faults. The common problems mainly include wear, lubrication failure, and fracture. Different faults have different manifestations and solutions.
Wear and looseness, causing abnormal control
The lubricating grease inside the ball joint will gradually be lost over time, causing wear and gap between the ball joint and the ball seat; if the dust cover is damaged, mud, rainwater will enter the interior, accelerating the wear process. When a fault occurs, the chassis of the vehicle will make a "clunking" abnormal sound during steering, the steering wheel will have an increased deflection, and the vehicle body will exhibit unstable shaking during high-speed driving. In this case, it is recommended to check the ball joint clearance once every 20,000 kilometers. The standard value should be ≤ 0.5mm. Once wear and looseness are detected, the ball joint assembly should be replaced in time.
Lubrication failure, causing rotational sluggishness
The special lubricating oil inside the ball joint is the key to ensuring its flexible rotation. If the dust cover is damaged, causing the lubricating grease to dry out, or if it is not maintained and replenished for a long time, the rotation of the ball joint will become sluggish. This not only increases steering resistance but also causes the load to act on the ball joint, accelerating component wear. During daily maintenance, pay attention to checking whether the dust cover is intact. If it is damaged, replace it immediately and refill the lubricating grease. For vehicles frequently driving on gravel roads and sections with frequent减速带， shorten the inspection cycle.
Fracture failure， endangering driving safety
Fracture of the ball joint is rare but has extremely serious consequences. Once it occurs， the vehicle will lose control. The fracture usually occurs at the transition area between the ball head and the pin shaft. The main reasons include insufficient design strength, poor quality of materials or heat treatment, and insufficient lubrication leading to rusting and seizing. To prevent such failures, it is necessary to select reliable components and conduct regular chassis inspections and dynamic performance tests. If the ball pin breaks, it cannot be repaired by welding; it must be replaced with a new part, and the material and strength of the new part must comply with the original factory standards.
