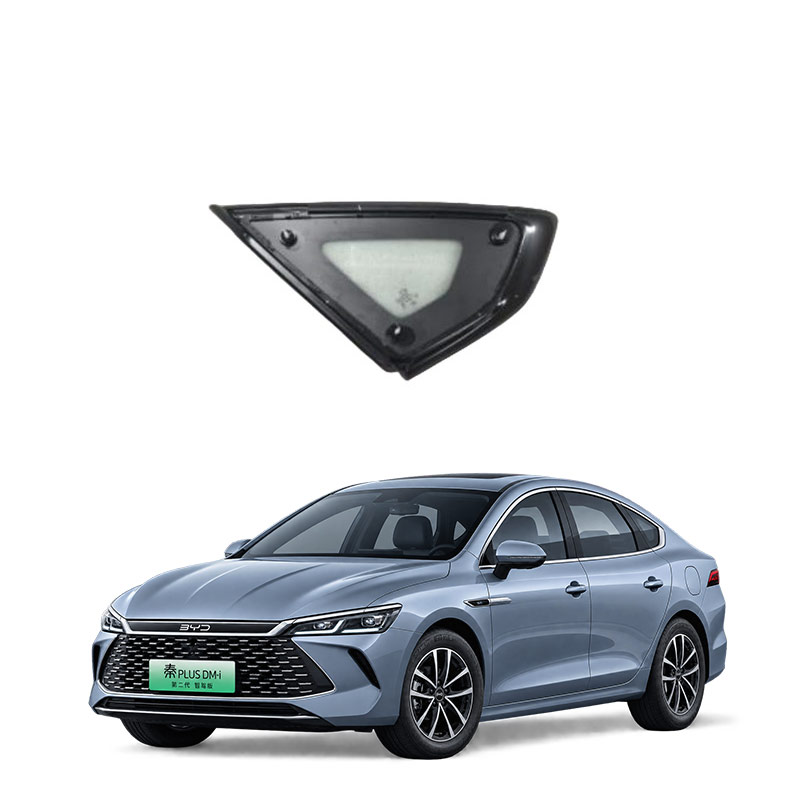

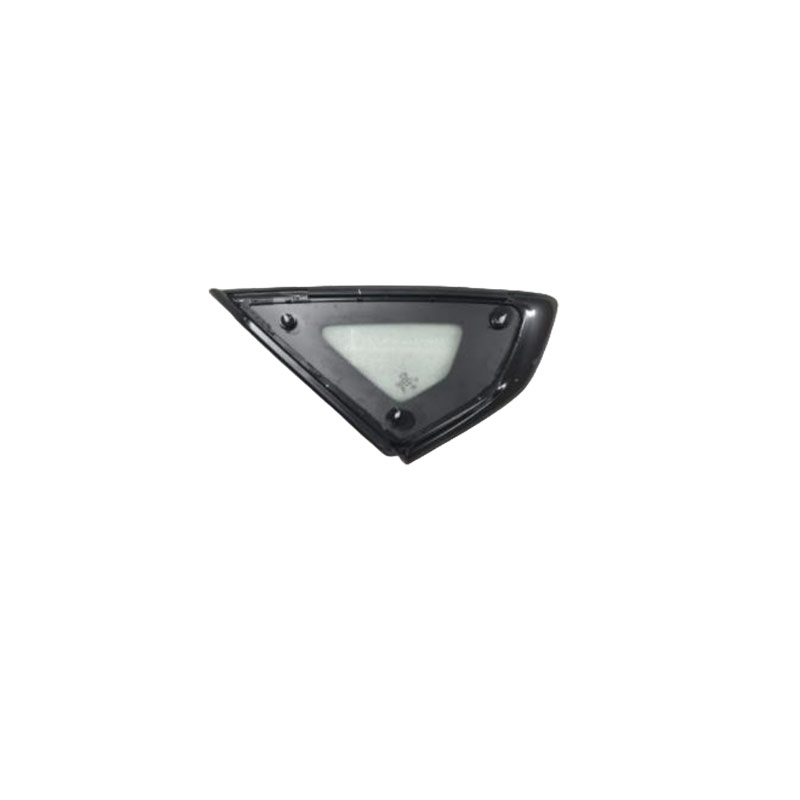

What is the rear side panel glass assembly of the car?
The rear side panel glass assembly of a car is simply the total assembly of the glass and its surrounding components installed in the rear area of the vehicle. It usually includes the rear windshield, rear side window glass (including fixed side windows), as well as sealing strips, trim panels, heating and defrosting lines, and other accessories.
What it specifically includes:
- Rear windshield: Located at the rear of the vehicle, behind the rear seats, mainly providing rearward visibility. It typically uses laminated glass with coating, featuring UV protection, noise reduction, and anti-breakage and splash prevention functions. Some models also have heating and defrosting capabilities.
- Rear side window glass: Located behind the rear door or at the rear side of the vehicle body. Some models can be opened or folded downward, while others are fixed and cannot be moved.
- Supporting accessories: Sealing strips around the glass, rear side window trim panels, fixing clips, etc., used for fixation and decoration to ensure a stable installation and a harmonious appearance.
Material characteristics
The rear windshield and side windows are mostly made of tempered glass. When broken, they break into small pieces, reducing the risk of injury.
Some models' rear side windows use privacy glass, which has a special coating on the surface and is darker, enhancing privacy and providing insulation and sun protection.
Points for confusion
"Rear side panel glass assembly" is not the same as "rear fender panel" - the fender panel is a metal sheet on the side of the vehicle (from the rear of the door to the rear fender area), and is a different thing from the glass assembly. They do not affect each other when replaced.
The core function of the rear side panel glass assembly (mainly referring to the rear triangular window, rear side window, and rear windshield) is to balance vision, lighting, safety, and vehicle structure, while also improving passenger comfort and privacy.
Vision and lighting
"Supplement rear side view": The rear side window and rear triangular window can help drivers observe the environment near the rear of the vehicle, reducing blind spots, and feeling more at ease when reversing or changing lanes.
Increase rear lighting: The fixed rear triangular window allows natural light to enter the rear, avoiding discomfort for the third row or rear passengers, and making long-distance rides more transparent.
Safety and structure
Enhance vehicle rigidity: The rear triangular window is connected to the vehicle frame, which can enhance the strength of the rear door and rear structure, improving stability during a collision.
Glass breakage protection: Use tempered or laminated safety glass, which forms blunt-edge small fragments when broken, reducing injury to passengers.
Function and comfort
Rear windshield defrosting and defogging: The rear windshield is equipped with an electric heating wire, which quickly removes water vapor and frost in rainy or snowy weather, ensuring clear rear vision.
Privacy and shading: The rear side privacy glass has a special coating or film, making it difficult for others to see inside, while reflecting solar radiation heat, making the interior cooler in summer.
Smooth lifting and noise reduction: The rear triangular window makes the moving glass shape more regular, the lifting guide rail is easier to arrange, and it runs more smoothly, reducing glass friction noise.
Maintenance reminder
The rear triangular window is mostly fixed glass, with high sealing requirements. After damage, replacement is difficult and costly. Pay attention to protection daily, and don't try to smash it easily.
In winter when the temperature is low, don't immediately turn on the rear windshield heating; avoid glass cracking due to rapid temperature difference; clear snow first before using it.
Faults of the rear side panel glass assembly of the car usually manifest as inability to lift the rear window, lifting being stuck, or abnormal sounds. Common causes are concentrated on motor damage, guide rail blockage, switch failure, fuse melting, or control module failure.
Common cause troubleshooting
Motor damage or overheating protection: If there is a "clicking" abnormal sound or a burnt smell when pressing the lifting button, it is likely that the lifting motor is damaged; if it has been continuously lifted, it may be due to overheating protection, wait for 10-15 minutes to cool down before trying again.
Guide rail blockage or aging sealant: Glass lifting is stuck, with friction sounds, mostly due to accumulated dust or foreign objects in the guide slot, or aging and deformed sealing strips. Clean the guide rail and apply silicone-based lubricating grease.
Switch or fuse failure: Only when the rear window fails, first check if the rear window switch is in good contact, then check if the corresponding fuse (usually a 30A red one) has melted.
Initialization data loss: If the battery is disconnected or the car window fails after repair, you can perform initialization reset - turn off the ignition, raise the glass to the top and hold for 3 seconds, then lower it to the bottom and hold for 3 seconds, repeat once.
Control module or wiring failure: If multiple windows fail simultaneously, or neither the driver nor the rear passengers can control, it may be due to damage to the door control module or communication lines (LIN lines), requiring professional equipment for detection.
Handle it yourself or go to a repair shop
You can handle it yourself: Clean the guide rail, replace the fuse, perform initialization reset, these operations are simple and can be done following the instructions.
Suggestion: Seek professional technicians: If the glass is moving but making a buzzing sound and doesn't move, if the glass is crooked, or if you suspect a short circuit in the wiring or if multiple windows fail to function simultaneously, do not attempt to disassemble it yourself. Instead, go to a 4S store or a professional repair shop for inspection.
If there is no response at all when pressing the switch, first check the fuse and the switch; if you hear the motor sound but the glass does not move, focus on checking the lifting cable or the motor gear.
