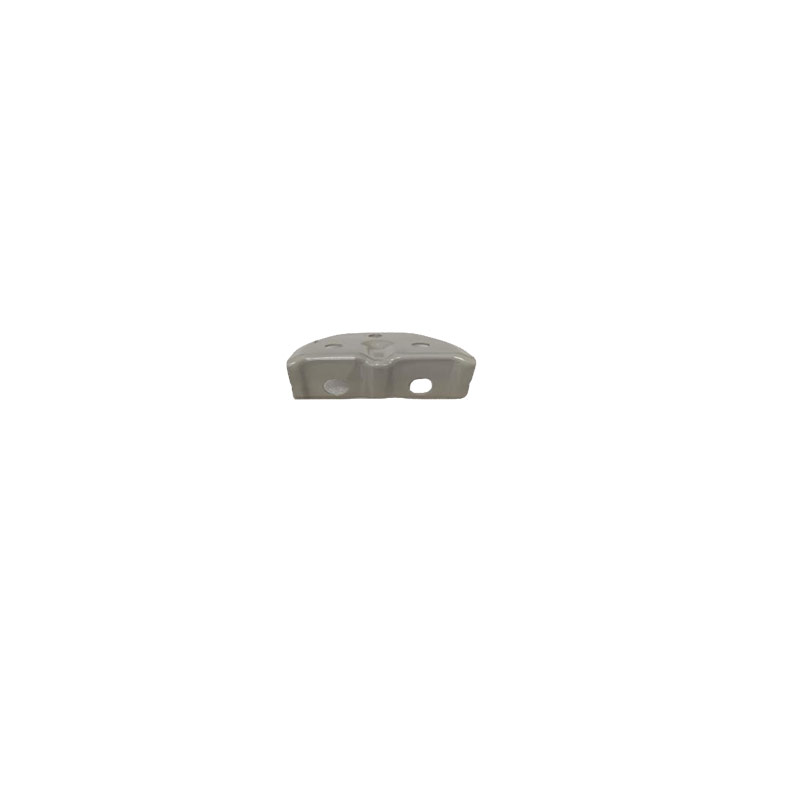

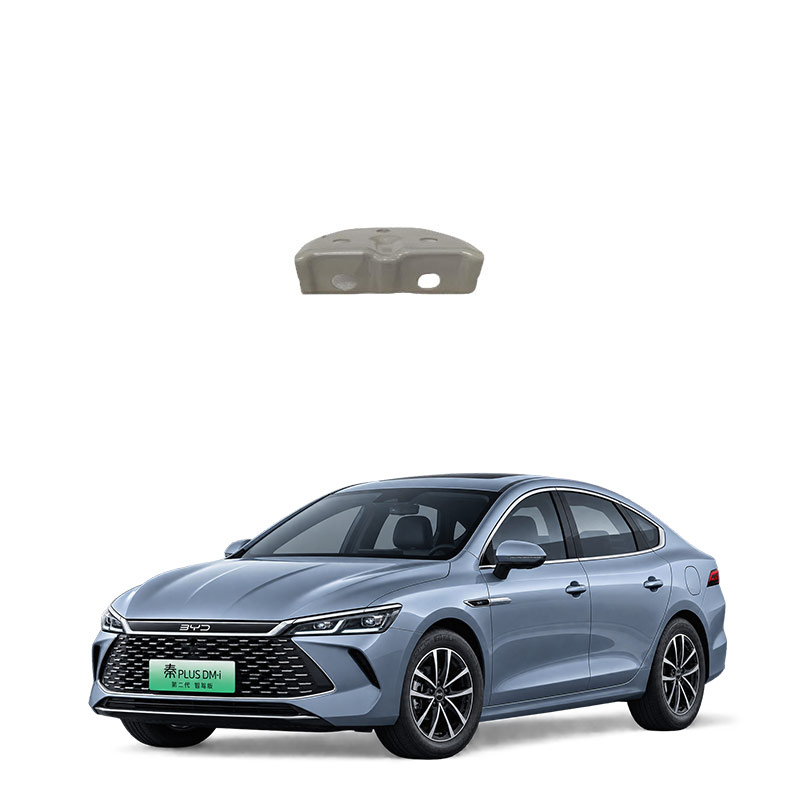

What is the car shielding installation bracket?
The automotive shielding installation bracket is a metal or coated bracket specifically designed for fixing automotive electronic components and shielding electromagnetic interference. It can be regarded as the "fixing base + anti-interference cover" for electronic components. It not only ensures that the equipment does not loosen during(bumps)， but also blocks the mutual interference of internal and external electromagnetic waves， ensuring the normal operation of the electronic system.
Main function
Fixed electronic components: Securely install the electronic control unit (ECU), multimedia system, antenna, etc. on the vehicle body or chassis to prevent loosening and detachment due to driving vibrations.
Shield electromagnetic interference: The interior of the vehicle is densely populated with components, which are prone to electromagnetic interference with each other. The brackets use metal shielding layers or shielding components to block external signal interference and also prevent internal signals from leaking out, avoiding abnormal component control.
Auxiliary heat dissipation and vibration reduction: Many brackets have heat dissipation holes, heat dissipation fins or reinforcing ribs. Some are also equipped with vibration-absorbing foam, which takes into account cooling, strength and stability.
Common types
Car signal shielding bracket: Used to fix the electronic control unit. The slot is equipped with shielding components and limit structures, ensuring stable installation and strong universality. It already has related patents (such as Geely, LeiWen automotive technology).
Electrostatic shielding bracket: Used for the multimedia system. The surface is plated with copper and titanium shielding layers to enhance sound quality and the anti-interference ability of the screen.
Antenna shielding bracket: Used to fix the vehicle-mounted antenna module. It has a shielding layer to reduce external electromagnetic wave interference and ensure signal transmission and reception.
Chassis EMC bracket: Commonly found in new energy and intelligent driving vehicles. It fixes the chassis electronic equipment to prevent electromagnetic interference from the high-voltage system from affecting communication and autonomous driving equipment.
Design Key Points
The shielding effect depends on the material, grounding and structural integrity. Regular products must pass electromagnetic compatibility tests (such as CISPR 25, ISO 11452), and reliable grounding must be ensured during installation to effectively conduct the interference.
The core function of the automotive shielding installation bracket is to fix electronic equipment and shield electromagnetic interference, ensuring the normal operation of various electronic systems in the vehicle.
Specifically, it mainly performs the following tasks:
Shielding electromagnetic interference: Like putting a metal protective cover on electronic equipment to block external electromagnetic waves from entering and prevent internal signals from leaking and interfering with other devices.
Fixing equipment: Firmly fixing electronic components on the chassis or the vehicle body to prevent loosening or detachment during vehicle vibrations.
Assisting in heat dissipation: Some brackets are made of aluminum alloys and other metal materials, which can help cool the electronic components.
Protecting precision components: The high-voltage systems of new energy vehicles and intelligent driving cars generate strong electromagnetic interference, and the bracket can protect precision devices such as radars and cameras to ensure stable signal transmission.
The term "car shielding installation bracket failure" is somewhat general and may refer to two completely different things: one is the installation bracket for the engine or transmission (commonly known as engine or transmission feet glue), and the other is the electromagnetic shielding cover or shielding bracket used for electronic systems. First, determine which type it is, and the fault manifestations and handling methods can be very different.
If it is a failure of the engine/transmission bracket:
This type of bracket is responsible for fixing the powertrain and reducing vibration. The main way to determine if it is faulty is through vibration and abnormal sounds:
Typical symptoms: Obvious shaking of the steering wheel or seat at idle or low speed; body jolting when starting, turning on air conditioning or in reverse gear; stronger gear shifting hesitation; audible rubber friction or metal impact sounds during acceleration.
Common causes: Aging, cracking or deformation of the rubber pads, resulting in reduced vibration damping, with vibration directly transmitted to the vehicle body.
The solution: First, check for any cracks, deformations or hardened rubber on the bracket; if the screws are loose, tighten them; if the rubber is severely aged, replace it directly. If unsure, it is more reliable to have a professional at a repair shop use professional tools to diagnose.
If it is a failure of the electromagnetic shielding cover/protective bracket:
These parts are used in automotive electronics, radars, ECU and other modules, responsible for electromagnetic isolation and structural protection. The fault manifestations are completely different:
Typical symptoms: Signal interference, such as erratic sensor readings, abnormal CAN communication, false fault lights, or unstable functions in high-frequency conditions.
Common causes: Poor connection of the shielding cover, poor grounding, or loose clips or latch positions, resulting in a discontinuous shielding path; warping caused by temperature cycles, stress deformation; vibration causing fatigue loosening of the fixation points.
Solution: Focus on checking the reliability of grounding, the contact pressure between the shielding cover and the base plate, whether the fixing screws are tightened, and whether there is any deformation or oxidation. The problem of shielding effectiveness can be measured using a multimeter or an oscilloscope for the continuity of grounding and signal waveforms, which is more reliable than just looking at the appearance.
If the fault is "a certain electronic module is not working properly" and it is suspected to be related to shielding, first check the grounding and joints. These two areas have the highest probability of problems.
Quick distinction
If it is "shaking, vibration, gear shifting hesitation", it is the problem of the engine/transmission bracket.
If it is "signal interference, error reporting, communication abnormalities", it is more likely to be a problem with the shielding cover or grounding.
