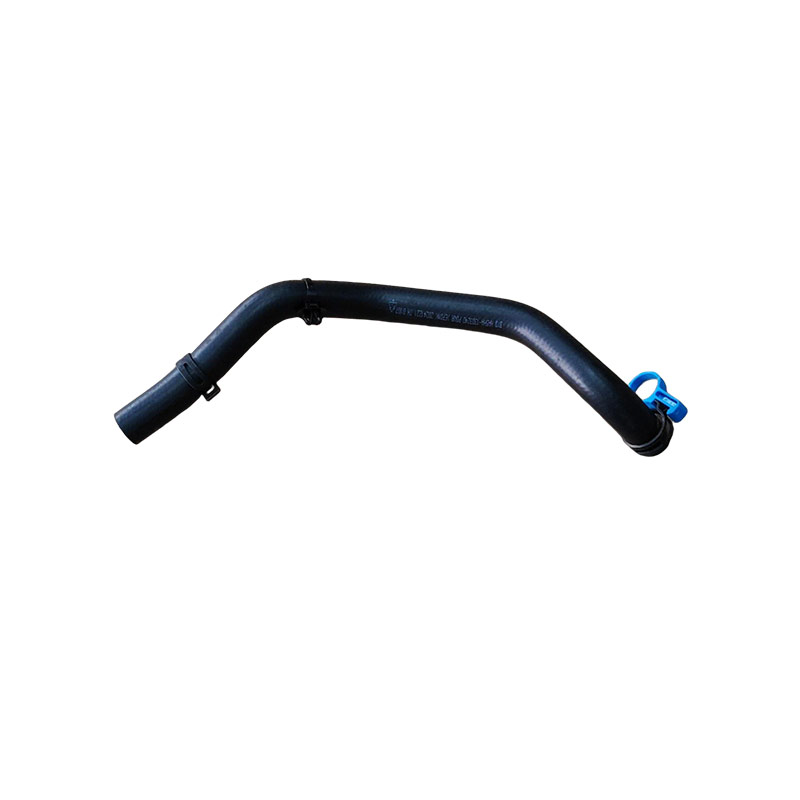

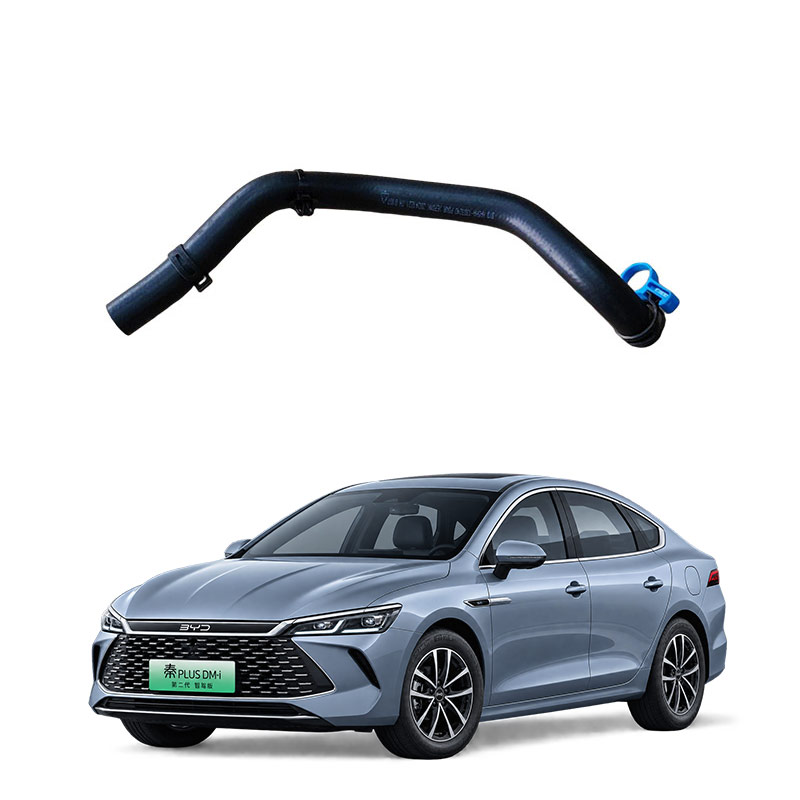

What is the automotive cooling pipe assembly?
The automotive cooling pipe assembly is a pipeline assembly in the automotive cooling system that is responsible for transporting the coolant. Just like the blood vessels in the human body, it delivers the coolant to various parts that require temperature regulation, such as the engine, radiator, and heater, ensuring that the engine operates within the optimal temperature range.
What components does it include?
- Cooling water pipes/soft pipes: The most common type is rubber or silicone hoses, which are soft and elastic and can buffer engine vibrations; there are also metal pipes and plastic pipes, used in high-temperature and high-pressure areas and places requiring corrosion resistance, respectively.
- Three-way pipes/four-way pipes: Used for distributing the coolant, common configurations include three-way connections to the water tank radiator, driver's cabin heating water tank, and coolant temperature sensor; some engines with two sensors become four-way pipes.
- Up and down pipes: The up pipe connects the water tank upper water chamber with the water pump outlet, and the down pipe connects the water tank lower water chamber with the water channel inlet, forming a complete circulation network.
Q&A
Rust and cracking of rubber tubes: The most common issue is that rubber tubes will deteriorate and crack over time. It is recommended to replace them every 4-6 years.
Corrosion and blockage of metal tubes: Similar to blood vessel blockage, it can affect the heat dissipation cycle.
Loose joints: This can lead to leakage, and regular checks are needed to see if there is any leakage or expansion.
Differences in new energy vehicles
In addition to engine cooling, new energy vehicles also have battery thermal management. Through liquid cooling plates and cooling pipelines, the temperature of the battery cells is controlled within an efficient range. Cold temperatures are heated and hot temperatures are cooled to avoid local overheating and thermal runaway.
The cooling pipe assembly of the car is the "blood vessels" of the engine cooling system. Its core function is to circulate the coolant between the engine and the radiator, helping the engine maintain the optimal working temperature range. It is directly related to whether the engine overheats, fuel consumption, and lifespan.
Specific functions
Heat dissipation cycle: The high-temperature coolant from the engine is sent to the radiator to cool down, and then the low-temperature coolant is returned, continuously removing heat.
Temperature regulation: In coordination with the thermostat, it controls the flow of coolant. In cold vehicles, the circulation is shortened to help quickly warm up, and in hot vehicles, a large circulation is used to prevent overheating.
Fluid distribution and pressure balance: Components such as three-way pipes distribute the single-flow coolant to different cooling areas. Through pipe diameter design, the system pressure is maintained stable, and the liquid volume entering the water tank and the engine body is coordinated.
Anti-freezing and anti-boiling: In coordination with the properties of the coolant, it prevents pipe blockage in winter and "boiling" in summer.
Common types
Metal cooling tubes: Commonly found in turbocharged engines, they can withstand high temperatures and pressures.
Rubber or silicone hoses: Elastic, they can buffer engine vibrations, but they are prone to aging and cracking.
Plastic cooling tubes: Increasingly used in modern vehicles, they have good corrosion resistance and offer a lightweight advantage.
Maintenance tips
Regularly check for leaks, expansion, or loose connections in the piping system.
Rubber hoses are recommended to be replaced every 4-6 years. Don't wait until they crack and leak before addressing the issue.
Use high-quality coolant; inferior antifreeze can corrode the internal parts of the piping system.
Once the cooling tubes fail, they may cause minor issues such as liquid leakage and high engine temperature warnings, or severe problems like cylinder seizure and engine damage. Regular maintenance can save you a lot of trouble.
Common failure types
Piping aging/bursting: Rubber hoses are subject to high temperatures and pressures over time, causing them to harden and crack, with leaks at connection points or sudden bursting of the pipes. This is more likely to occur in hot weather.
Loose connections/sealing failure: Loose connections or aging gaskets at the hose joints cause coolant leakage. Commonly, there are liquid traces on the ground after parking.
Blockage/clogging: Accumulated scale or impurities clog the piping, reducing circulation and increasing water temperature, thereby decreasing the efficiency of heat dissipation.
Related components failure: Cooling tubes are often associated with water pumps, thermostats, and radiators. Faults in these components can also affect the piping system, such as corrosion of the plug due to water pump leakage or abnormal pressure caused by a stuck thermostat.
How to diagnose and handle
First, observe the symptoms: illuminated water temperature warning light, steam coming from the engine hood, rapid drop in coolant level, and pink or green liquid traces on the ground are typical signs of cooling tube problems.
Emergency handling: When the water temperature warning light comes on, safely stop the vehicle, turn off the engine smoothly, and wait for the water temperature to drop completely before opening the hood. Opening the hood while the engine is hot can cause steam to spray and potentially damage the metal, and pouring cold water on the engine can also lead to cracking.
After cooling down, check in the following order: "Coolant level and quality → Thermostat and electronic fan → Water tank blockage".
Maintenance suggestions
Accessory selection: Preferentially choose original or modified accessories. For instance, some Mercedes models replace the original rubber water pipes with modified aluminum ones, which are more durable and have a lower cost than the original parts.
Overall inspection: After the water temperature red light has been illuminated, even if the temperature returns to normal, it is recommended to thoroughly inspect the cooling system. Hidden problems often lie within the interior.
Within the warranty period: If there is a connection issue with the cooling pipe during the warranty period, contact the 4S store first and do not attempt to disassemble or assemble it yourself.
When the coolant pipe is working properly, it withstands approximately 1.1-1.5 bar of pressure. High-quality EPDM rubber pipes can withstand temperature changes from -40°C to 120°C. However, it is recommended to inspect the pipe for hardening, bulging, or cracks every 2 years or 40,000 kilometers.
