What is the automotive fuel pipe assembly?

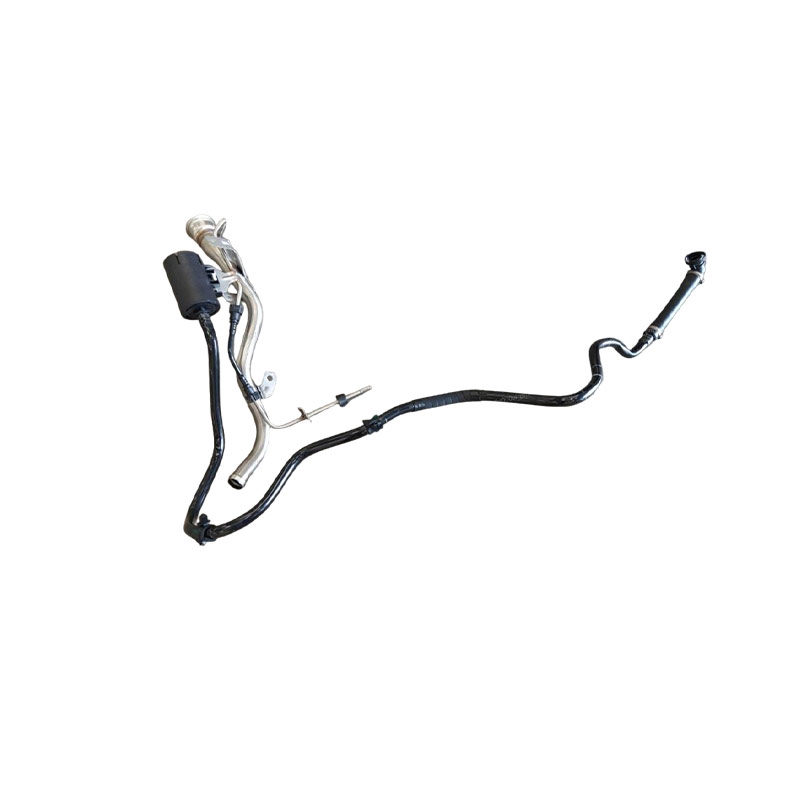

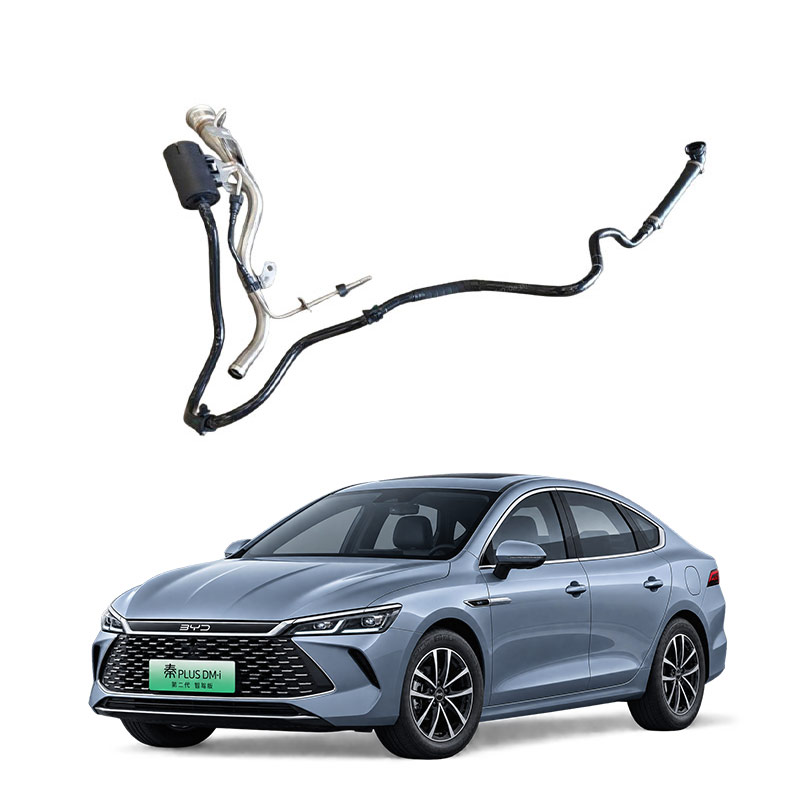

The automotive fuel pipe assembly is the pipeline assembly in the vehicle's fuel system responsible for transporting fuel. Its main function is to safely transfer fuel from the fuel tank to the engine and maintain stable system pressure. It is not just a single pipe; it typically consists of:
- Supply pipe: Under the pressure of the fuel pump, it transports gasoline from the fuel tank to the fuel injector.
- Return pipe: It directs excess fuel back to the fuel tank to maintain system pressure balance.
- Fueling pipe: It connects the fuel tank opening to the fuel tank, serving as a channel for refueling, usually with a reverse flow prevention design.
In terms of material, the fuel pipes need to be resistant to pressure and corrosion. Commonly, they are made of oil-resistant rubber, polyurethane, stainless steel, or high-performance plastics (such as PPS, POM). Some models also have metal guard plates installed on the chassis to prevent stone strikes.
The automotive fuel pipe assembly is mainly responsible for safely transporting fuel from the fuel tank to the engine and ensuring stable fuel pressure and precise fuel injection. It is not just a simple pipe; it is a system consisting of pipes, fuel distribution pipes (fuel rails), connectors, etc., working together.
Core functions
- Fuel transportation: After the fuel is pressurized by the fuel pump, it is transported through the fuel pipe to the fuel injector in the engine to ensure that the fuel reaches its destination smoothly.
- Uniform distribution: The fuel distribution pipe evenly distributes the fuel to each cylinder fuel injector, ensuring that each cylinder receives the appropriate amount of fuel, allowing the engine to run smoothly.
- Stable fuel pressure: The distribution pipe acts as a pressure storage and buffering device, reducing fuel pressure fluctuations, ensuring constant fuel injection pressure, and enabling precise control of fuel injection under different loads.
- Installation and connection: It provides a foundation for the fuel injector and fuel pressure regulator, connects various components, and provides a stable working environment.
Key details
The fuel distribution pipe is also known as the fuel rail. It is usually made of aluminum alloy and installed on the upper part of the intake manifold.
The fuel pipe needs to be resistant to pressure and corrosion. Common materials include rubber, polyurethane, or plastic. It is hidden in the chassis or engine compartment.
If the fuel pipe is aged, clogged, or the interface is not compatible, it may cause engine shaking, difficulty starting, increased fuel consumption, or even engine shutdown.
In simple terms, the quality of the fuel pipe assembly directly affects engine efficiency, fuel economy, and emission levels, although it is insignificant, it is crucial.
Common faults of the automotive fuel pipe assembly include oil leakage, abnormal fuel supply pressure, and abnormal noises. The root causes are often aging and cracking of the pipe body, failure of the joint seal, loose fasteners, or deviations in part precision. Different location faults have different symptoms and handling methods.
Common fault types
- Fuel pipe oil leakage: The most obvious. Aging cracks in the pipe body, aging sealing rings at the joint, or loose nuts will cause leakage. You can smell gasoline in the vehicle or at the rear, and there may also be oil stains on the ground.
- Abnormal fuel pressure: Fuel pipe blockage, leakage, or fuel pump failure can cause low pressure, resulting in difficulty starting, lack of acceleration power, unstable idle; backflow pipe blockage may cause high pressure, increasing fuel consumption.
- High-pressure fuel pipe failure: Common faults include oil leakage, burst, and seal failure. It is often caused by excessive pressure, poor material quality, or improper installation, resulting in a decrease in engine power, shaking.
- Fuel pipe joint loosening: A dull "click, click" sound heard during bumpy roads or sudden acceleration is likely due to aging and loosening of the joint, slight displacement of the pipe, which may affect the stability of fuel supply.
Emergency handling
If you find oil leakage or a strong smell of gasoline while driving, immediately pull over, turn off the engine, cut off the fuel supply, and stop driving. Safety comes first: After turning off the engine, open the windows for ventilation, evacuate to at least 10 meters outside the vehicle, place a warning sign 50-100 meters (150 meters on the highway) behind the vehicle to avoid any fire sources.
Temporary Leak Sealing (Only for emergency situations): If the oil pipe breaks, you can use a rubber hose of similar diameter to connect it and secure it with wire; for small cracks, you can apply soap and wrap it with adhesive tape; for leaky joints, you can wrap cotton around them and tighten them, or chew the chewing gum soft and apply it to the interface to temporarily seal it.
Send for Repair as Soon as Possible: Temporary treatment may not last longer than 24 hours. The oil pipe has 3-5 atmospheres of pressure and may burst at any time. It is best to call a tow truck to send it to the repair shop instead of driving it yourself.
Prevention and Maintenance Suggestions
Regular Inspection: During each maintenance, have the technician check if the oil pipes are aging, cracked, or leaking, especially at the pipe joints and the high-temperature areas near the exhaust pipe.
Timely Replacement of Aging Components: Rubber oil pipes and sealing rings are consumables. Once they age, they must be replaced. Don't think about saving money; a burst pipe can have serious consequences.
Pay Attention to Oil Quality and Cleaning: Poor-quality fuel or impurities can easily clog the oil passage. Replace the fuel filter regularly to keep the oil passage clean, which can effectively extend the lifespan.
Confirm Sealing After Repair: After replacing the oil pipe or sealing ring, perform a pressure test or use leak detection agent to confirm there is no residual leakage before driving.
