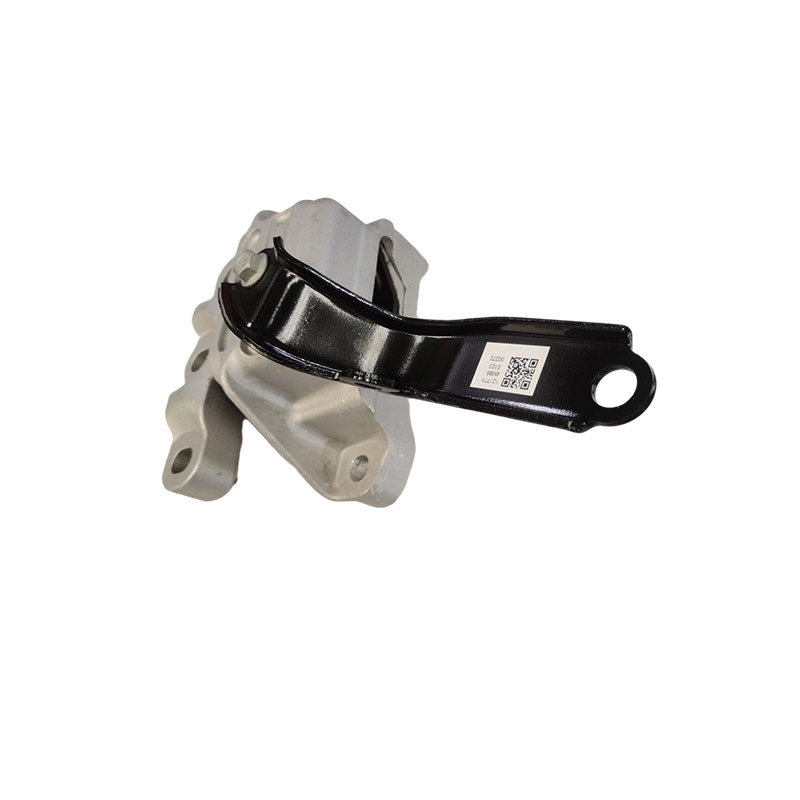

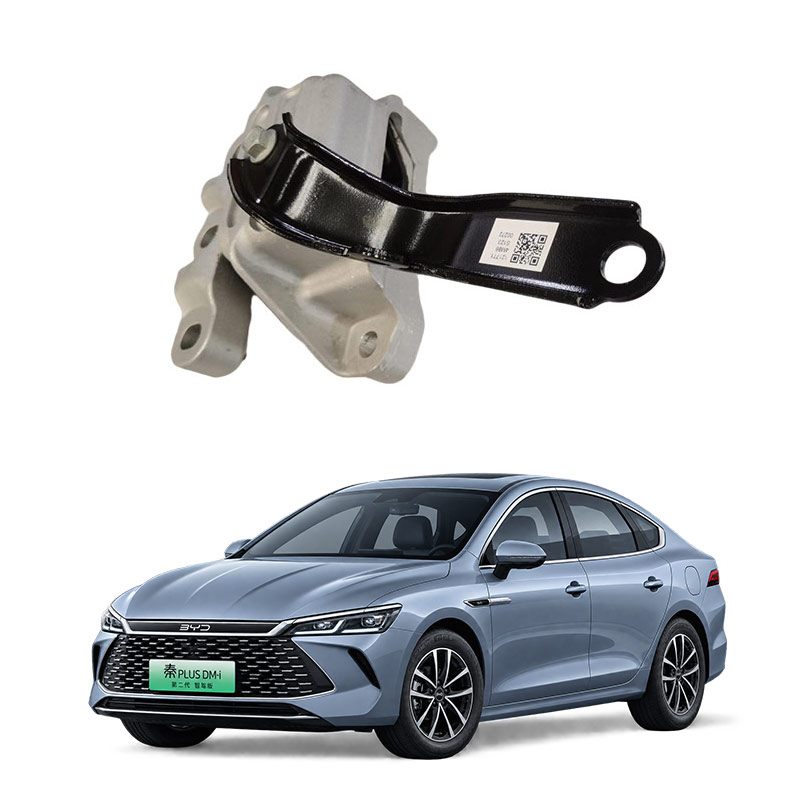

What is the left suspension support component of the automotive powertrain?
The left suspension support component usually refers to the left suspension of the powertrain, which is the elastic supporting component connecting the engine/transmission to the left side of the vehicle body, and it serves the functions of supporting, vibration isolation and positioning.
What exactly does it do?
Support: Bear the weight of the powertrain part to keep it in the designed position and prevent it from shifting due to bumps or acceleration/deceleration.
Isolation: Block the vibration from the engine from reaching the vehicle body, and also buffer the road impact, directly related to the noise and vibration inside the vehicle.
Limitation: Limit the displacement of the powertrain during sudden acceleration, braking, or starting to prevent it from colliding with surrounding parts.
Structurally what is it
Commonly there are two types: rubber suspension and hydraulic suspension.
Rubber suspension: Rubber bushings and brackets, simple structure and low cost, often used in entry-level models.
Hydraulic suspension: The main spring is filled with ethylene glycol liquid, with flow channels and decoupling plates, better vibration isolation effect, mostly used in mid-to-high-end vehicles.
Where is it installed
Passenger cars generally adopt the three-point suspension layout, the left suspension and right suspension are usually compression-type rubber suspensions, fixed on the vehicle body or front crossbeam, and the rear suspension connects to the subframe. So "the left suspension support component" is the left point among these three.
The left suspension support component of the powertrain of the vehicle (i.e., the left suspension) mainly functions to support, limit and isolate vibration. It is an elastic supporting component connecting the powertrain and the vehicle body.
Three core functions
Support positioning: Bear the weight of the powertrain part, ensure that the engine or motor is stable in a reasonable position, and do not shake or shift due to bumps or acceleration.
Limitation protection: In transient working conditions such as starting, sudden acceleration, sudden braking or engine shutdown, limit the maximum displacement of the powertrain to avoid collision with surrounding parts and damage.
Vibration isolation and noise reduction: Isolate the vibration from the engine from being transmitted to the vehicle body, and also buffer the road impact, reduce the noise and vibration inside the vehicle, and improve comfort.
System coordination
The left suspension usually forms a three-point suspension layout with the right suspension and rear suspension, commonly seen in passenger cars. The left and right suspensions are mostly compression-type rubber suspensions, fixed on the vehicle body; the rear suspension often adopts a torsion bar structure to connect the subframe.
The left suspension does not work independently. It and the right suspension and rear suspension jointly form a multi-point spatial support system, coordinating the positioning of the powertrain and limiting its longitudinal, lateral, and vertical translations as well as rotational around the axis.
Type differences
Rubber suspension: Low cost, limited durability, common in entry-level models.
Hydraulic suspension: Filled with ethylene glycol liquid, better vibration isolation performance, mostly used in mid-to-high-end models.
Electromagnetic/magnetorheological suspension: Can adjust parameters in real time, applied to some high-end models.
If the left suspension is aged or damaged, one may feel obvious idle vibration, large engine shaking during acceleration, and louder noise inside the vehicle, which requires timely inspection and replacement.
Left suspension support component failure usually refers to the damage or wear of the supporting components in the suspension system (such as lower control arms, control arms, shock absorber top rubber or stabilizer bar linkages), which will directly affect the stability of the vehicle body and driving safety.
Common manifestations
Body tilt: The left side is significantly lower when parking, usually caused by broken springs, oil leakage from the shock absorber, or deformation of the lower arm.
Abnormal noise during driving: "Clunking" or "bang" sounds when crossing a slope, or "creaking" sounds when steering. These are common issues caused by worn ball joints, aging bushings, or loose screws.
Steering deviation: The steering wheel automatically leans to the left during straight driving, possibly due to deformation of the lower arm or steering knuckle, changing the wheel alignment parameters.
Tire uneven wear: Single-sided wear or wavy wear on the left tire indicates abnormal suspension geometry.
Common causes
Shock absorber oil leakage or failure: Aging and damaged seals lose their damping effect, causing significant body bouncing.
Wear of the lower arm/steering arm: Aging and cracking of rubber bushings, or worn and loose ball joints, are frequent causes of left suspension faults.
Breakage or fatigue of suspension springs: After spring breakage, the support force on one side is insufficient, causing the vehicle body to tilt significantly.
Damaged stabilizer bar link: Increased side-slip during cornering and decreased driving stability.
Loose fasteners: Loose bolts and nuts cause gaps between suspension components, resulting in abnormal noise and shaking.
If the suspension fault indicator light on the dashboard is on, or the vehicle body is significantly tilted or shakes violently during driving, stop immediately for inspection. Do not continue to drive forcefully.
Handling suggestions
First, read the fault codes: Go to the repair shop and use a computer diagnostic tool to read the fault codes and data flow to determine whether it is a mechanical component failure or a sensor/line problem.
For component repair: Oil leakage in the shock absorber usually requires replacement of the entire assembly; aging bushings can be replaced individually or the swing arm assembly can be replaced; spring fractures must be replaced; loose screws can be tightened to the specified torque.
After repair, perform four-wheel alignment: After replacing the suspension components, the wheel alignment parameters will change. The front toe and camber angles need to be recalibrated; otherwise, the vehicle is prone to veering and uneven wear.
If the left suspension fault is not dealt with in time, it will cause a chain reaction, resulting in intensified tire wear, overloading and damage to other suspension components, and possible loss of control at high speeds.
