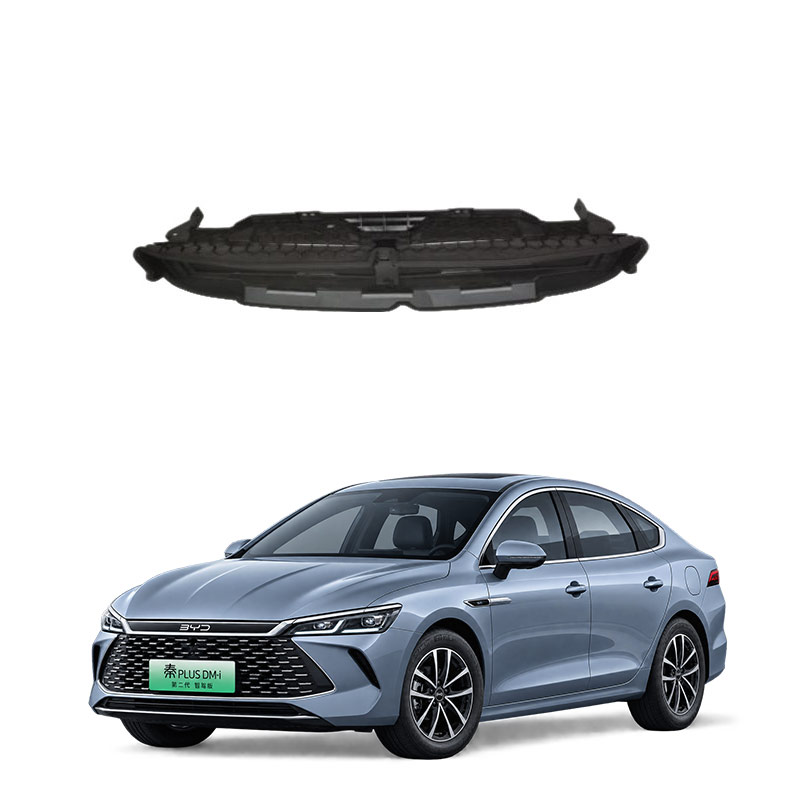

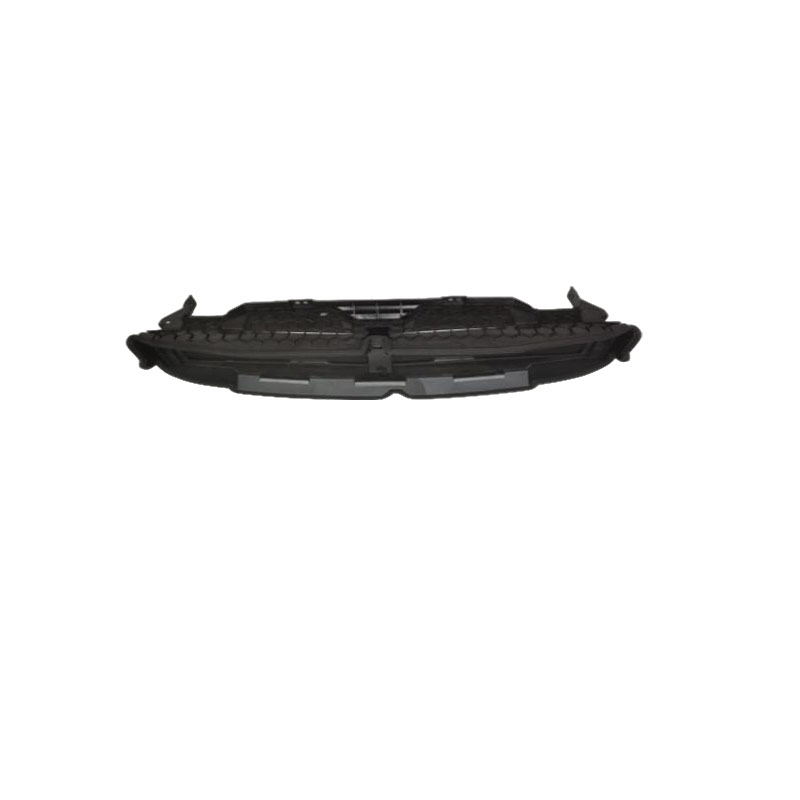

What is the automotive grille assembly?
The automotive active grille assembly, often referred to as the "active air intake grille", can be understood as the movable shutters within the "big mouth" of the vehicle's front end.
It is no longer a fixed mesh decoration but is driven by an electric motor to open and close the blades, and the vehicle's on-board computer automatically adjusts the air intake volume based on engine temperature, speed, etc., mainly to balance cooling and drag reduction.
What does it do?
When the vehicle is cold-started: The grille is closed to reduce the cold air flowing into the cabin, helping the engine warm up faster to reach the operating temperature, and warm air can be released earlier, saving fuel as well.
During high-speed cruising: When the engine load is not high, it does not require as much air for cooling. The grille is closed to reduce drag, improving stability and fuel economy.
When it needs cooling: For example, when using air conditioning in summer or during intense driving, the grille opens to allow air to flow smoothly through the radiator, preventing the cabin from overheating.
An additional benefit is that the grille is usually closed most of the time, preventing debris such as mosquitoes and stones from entering the radiator, making it cleaner inside.
Test data shows that in a temperature of -7°C, vehicles with active air intake grilles can save approximately 7% of fuel compared to those without; in a temperature of 25°C, they can save about 2%, mainly due to the reduction in drag.
What does it consist of?
A complete system typically includes the following components:
Grille blades: These are the rotatable blades themselves, mostly made of lightweight materials such as plastic or aluminum, and the opening and closing angle directly determines the air intake volume.
Drive motor: Responsible for driving the blades to open and close, usually in pairs, and it receives instructions through the LIN bus to precisely control the angle.
Control module: Acts as the "brain", receiving signals from various sensors and determining whether to open or close.
Sensors: Monitor engine temperature, speed, load, etc., providing the control module with data for decision-making.
Maintenance precautions
If this component fails, the instrument panel may illuminate the engine fault light. For example, in some Cadillac models, the fault code reported is P059F, indicating abnormal grille air intake control. The common cause is that the motor itself is damaged or there is a wiring problem. During repair, since the motor is integrated in the grille assembly, usually a complete replacement of the intake grille assembly is required.
The core function of the automotive active grille assembly (also known as the "active closed-type air intake grille") is to automatically adjust the air intake volume based on the vehicle's state, balancing cooling, fuel saving, and improving the winter experience.
It is like having a "shutter" installed at the front of the vehicle, driven by an electric motor and opened and closed by the vehicle's on-board computer (ECU), which receives signals from various sensors and controls accordingly. The specific benefits include the following aspects:
Core function
Warm up the car faster in winter: When the car is cold, the grille is closed, which reduces the entry of cold air into the cabin, allowing the engine to reach the optimal working temperature more quickly. At the same time, the warm air can be blown out earlier.
Reduce wind resistance at high speeds: When cruising at high speed, the engine does not heat up much, and the automatic closing of the grille can reduce the turbulence of the airflow inside the cabin, lowering the wind resistance coefficient, thereby improving fuel economy and driving stability.
Intelligent cooling: In summer or when the engine is under heavy load, the grille automatically opens to ensure the maximum air intake to cool the radiator and prevent overheating.
Save fuel consumption: Save fuel by accelerating the warm-up process and reducing wind resistance. According to the test data of SAE (American Society of Automotive Engineers), in a temperature of -7℃, it can save about 7%, and in a temperature of 25℃, it can also save about 2%.
Points to note
Common Faults: If the grille motor is damaged or there is a problem with the wiring, the dashboard may illuminate the engine fault light and report the fault codeP059F (abnormal performance of the active grille intake flap), and usually, the grille assembly needs to be replaced.
User Experience: In northern regions during winter, this configuration will be particularly noticeable in reducing the warm-up time and enhancing the warm air experience.
