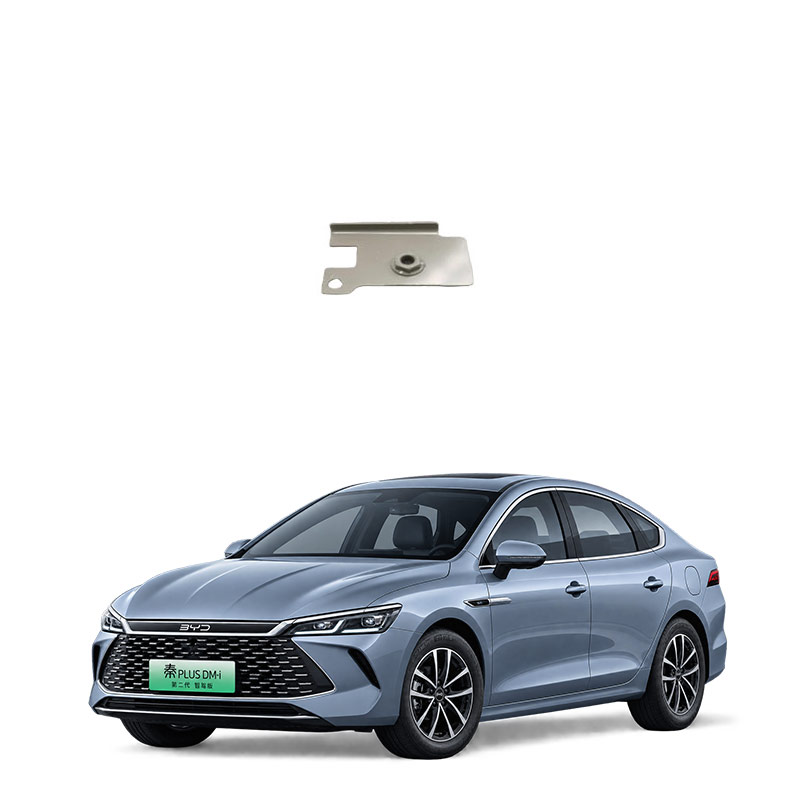

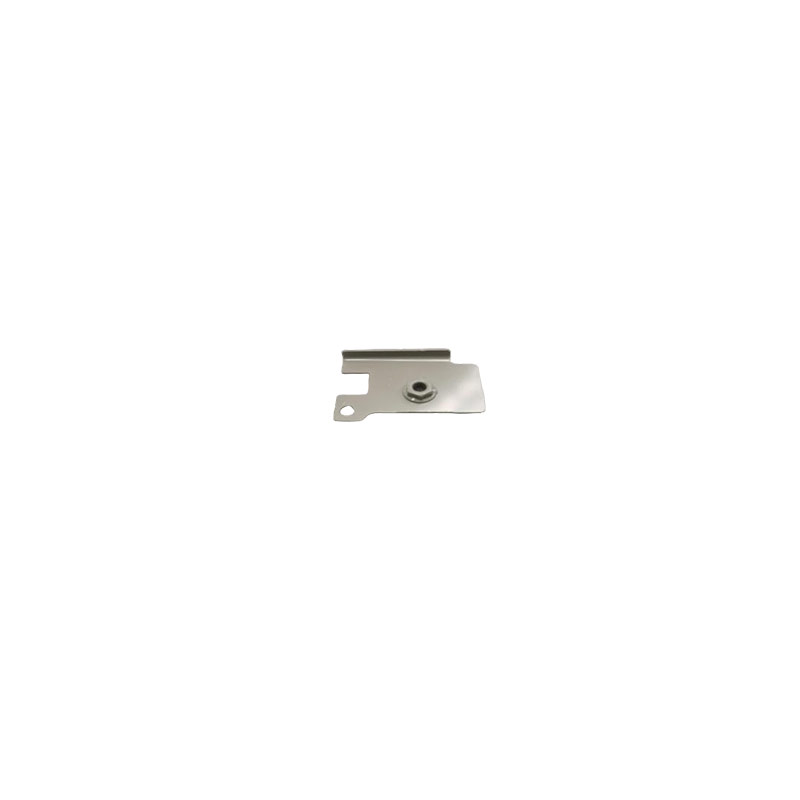

What is the left positioning block of the front module of the car?
The left positioning block of the car front module is a component used during assembly to position the front module. Its function is to ensure that the various components of the front face are installed more accurately and stably, reducing gaps and face differences.
The car front module is the integrated assembly of the car's front part, including the front bumper, headlights, front grille, radiator, etc. It is usually the first component to be installed on the vehicle's frame during final assembly. The left positioning block is one of the structural components responsible for positioning. Common forms include brackets, positioning plates or positioning pins. They are usually installed on the front end of the front longitudinal beam and are used to hold or align the front module during assembly, ensuring that it is in the correct position in the left-right and front-back directions.
It is important to note that the positioning block mentioned here refers to the assembly positioning structure, not the lead weights used on the wheels, nor the electronic devices like the Beidou positioning module.
This design mainly addresses the issue of installation accuracy. For example, by using the positioning pins and through-hole cooperation, it can be directly fixed after assembly, without the need for repeated fine-tuning of positions.
Common forms
Positioning bracket: Installed on the front end of the front longitudinal beam, it uses a support plate and a limit plate to form an installation space. When the front module is placed inside, it can be aligned to the position.
Auxiliary positioning plate: Attached to the end cover of the front longitudinal beam, it is used to correct installation errors and control the positioning error of the front frame within a smaller range.
Positioning pin/through-hole cooperation: Through the insertion of the positioning pin into the through-hole, it directly locks the positioning in the front-back and left-right directions. The upper and lower directions are then held by the compression part.
Why is it important?
Guarantee assembly accuracy: Avoid excessive clearance and surface difference in the front face, which would affect the appearance and wind resistance.
Improve production efficiency: Once installed, it can be directly fixed without manual repeated adjustment, and the assembly line is faster and more stable.
Reduce assembly error: Even if the front longitudinal beam itself has positional errors, they can be corrected by the positioning structure to ensure the consistency of the entire vehicle.
The core function of the left positioning block (usually called the left positioning bracket/ left limit plate) of the front end module is: During assembly, it enables the front end module to achieve precise positioning, ensuring that the left and right positions are not off, so that it can be installed in one go without repeated fine-tuning, and improving assembly accuracy and efficiency.
It is usually symmetrically arranged with the right positioning bracket and together with the vehicle's front longitudinal beam, it forms an installation space. When the front end module is placed in it, it is "fixed" in the correct position, and then it can be directly connected and fixed.
It should be noted that if it refers to the small lead weights stuck on the wheel hub, they are the dynamic balance counterweights, which are used to counteract the vibrations caused by the high-speed rotation of the tires, and are not the same as assembly positioning.
Specific functions breakdown:
Precise positioning: The left limit plate is responsible for limiting the position of the front end module on the left side, and cooperates with the right bracket to control the left-right (X direction) deviation.
Improve assembly efficiency: Once placed, it is in the correct position, eliminating the time for manual repeated position adjustment and reducing the reliance on workers' experience.
Ensure appearance quality: The front end module (including headlights, bumpers, etc. in the front face area) is positioned accurately, so that the gaps and surface differences can be uniform, and the appearance is more refined.
The left positioning block of the front end module (FEM) belongs to the mechanical positioning components of the vehicle head integration module. Its main function is to ensure the assembly accuracy of the front end module (including radiator, condenser, headlights, impact beam, bumper, etc.) and the vehicle longitudinal beam/frame, preventing the module from shifting or misalignment.
Common fault phenomena:
Assembly misalignment: Uneven gaps between the left front headlights and the bumper, the height or left-right position of the headlights deviating, the left side of the bumper sinking or arching.
Abnormal noise and looseness: When driving over bumpy roads, there is a "clicking" or "cracking" abnormal noise on the left side of the vehicle head, and it may be accompanied by resonance shaking at low speed or idle.
Function affected: Severe misalignment may cause the radiator/condenser to be unstable in fixation, and the pipes to be stressed, and even affect the calibration accuracy of the front radar and camera.
Post-collision risks: If the positioning block breaks or deforms after a front collision, the front end module will not be able to precisely reset, and after repair, uneven gaps and repeated loosening may occur.
Cause of the malfunction
Collision/Bottoming Damage: The most common causes are low-speed frontal collisions and bottoming on the shoulder of the road. The locating blocks are mostly made of plastic or cast aluminum and are prone to fracture and deformation under impact.
Aging Fatigue: Long-term bumps and high-temperature engine compartment conditions cause the plastic locating blocks to become brittle and crack, and the fixing bolts to loosen.
Improper Assembly: After repair and disassembly, if the locating pins are not aligned or the bolt torque is insufficient, the locating blocks will be subjected to abnormal stress and wear or fracture.
Quality Defects: For some models, the design strength of the locating blocks is insufficient, and they will naturally crack after long-term use.
Treatment Suggestions
Mild Loosening/Misalignment: Realign the locating blocks and tighten the fixing bolts. Add reinforcing gaskets to assist in fixation.
Fracture/Deformation: Replace the original locating blocks (for some models, they can be replaced separately without replacing the entire front module), and also check if the adjacent mounting brackets are deformed.
Collision Repair: Make sure to correct the installation positions of the front frame and longitudinal beams before replacing the locating blocks. Otherwise, the new parts will still be subject to abnormal stress and damage.
Verification after Repair: After replacement, adjust the angle of the headlights, check the calibration of the front radar/ACC camera, and confirm that the gaps between the bumper and the fender are uniform.
