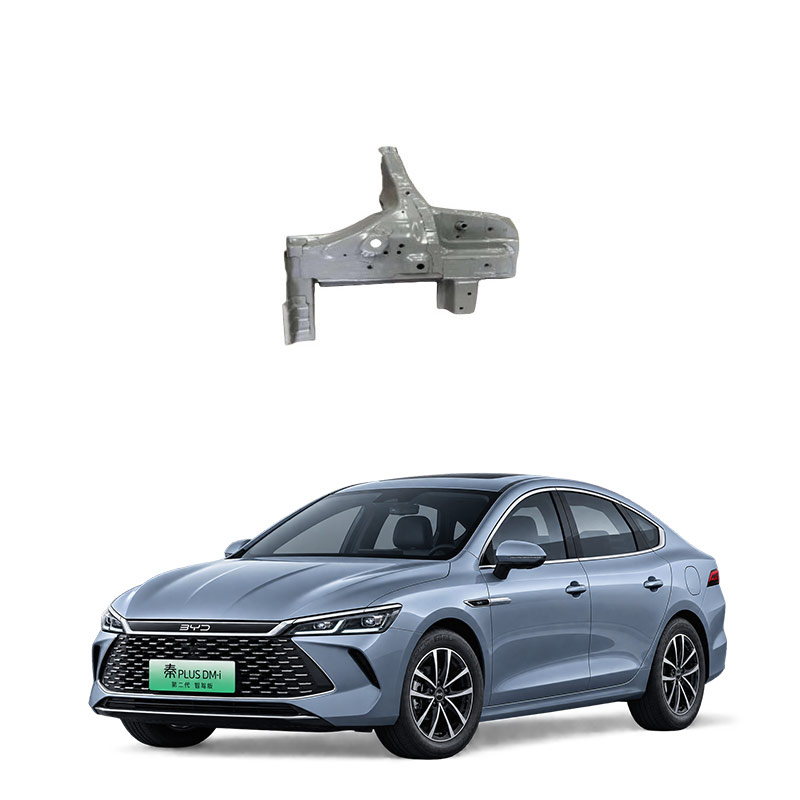

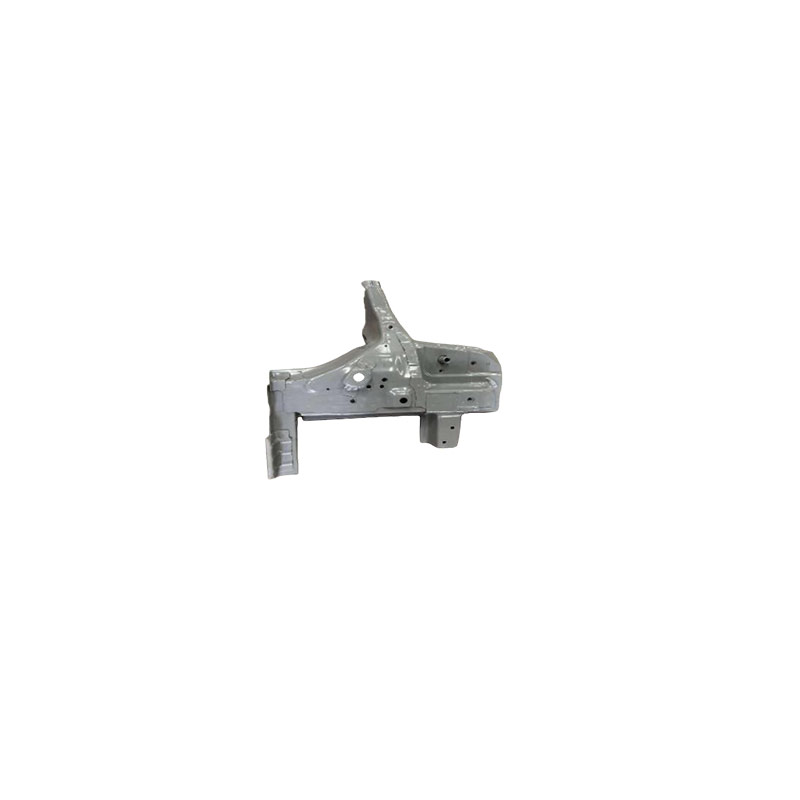

The function of the rear end assembly of the right front longitudinal beam of the car
The assembly part at the rear end of the right front longitudinal beam of the car serves to connect the front longitudinal beam with the front fender (firewall) area, forming a complete collision force transmission path.
Specifically, it performs the following tasks:
Collision force transmission and energy absorption: During a frontal collision, the front longitudinal beam collapses to absorb most of the energy, while the rear end assembly part is responsible for transferring the remaining impact force to the front fender and the passenger compartment frame, allowing the entire vehicle to share the force and avoiding excessive stress in a specific area.
Connection and support: It is a key connection node between the longitudinal beam and the front part of the vehicle structure, supporting components such as the front fender and the steering system, ensuring the stability of the vehicle head structure.
Protection of the passenger space: The design guides the deformation direction to prevent the rear end of the longitudinal beam from invading the cockpit during a collision, protecting the foot space of the front passengers.
It should be noted that the front end of the front longitudinal beam is connected to the impact absorption box through the impact absorption box, which is the first energy absorption stage; while the rear end connection to the front fender mainly involves force transmission and maintaining the integrity of the passenger compartment. When the rear end of the longitudinal beam is damaged during repair, it is usually repaired using a beam correction instrument, and the strength after repair is difficult to fully reach the original factory level.
If the right front longitudinal beam rear end assembly part fails, it is not usually a single part failure, but a combined problem caused by collision, assembly accuracy, or stress concentration. The specific situation needs to be determined based on the specific vehicle model and the fault phenomenon.
The right front longitudinal beam rear end is a key connection point for bearing the engine and suspension. Problems at this position can occur in several ways:
Assembly deviation: The compensation tolerance of the pad plate at the connection point between the longitudinal beam and the crossbeam is not appropriate. If the pad plate thickness is incorrect or the bolts are not tightened according to the standard torque, it will cause loosening and abnormal noise during driving.
Post-collision residual problems: If the right front side has experienced a collision, even if the longitudinal beam has been repaired, the internal stress may not be completely released, and over time, it may cause deformation at the connection point or cracking of the weld.
Interference and friction: If the pipes, wires, or other components near the longitudinal beam are not properly fixed, they will interfere with the longitudinal beam during acceleration or turning, causing abnormal noise.
Grounding terminal rust: If the grounding points on the longitudinal beam are rusted or loose, it will cause an increase in grounding resistance, resulting in various strange error codes in the circuit.
It is recommended that you first confirm two key pieces of information:
What is the specific fault phenomenon - is it abnormal noise, deviation, fault light on, or loose connection?
Has the vehicle had any accidents or repair records recently?
The right front longitudinal beam belongs to the core structural component of the vehicle body. If there is a deformation or damage, common situations include:
Assembly deviation: The compensation tolerance of the pad plate at the connection point between the longitudinal beam and the crossbeam is not appropriate. If the pad plate thickness is incorrect or the bolts are not tightened according to the standard torque, it will cause loosening and abnormal noise during driving.
Post-collision residual problems: Even if the longitudinal beam has been repaired, the internal stress may not be completely released after a collision. Over time, it may cause deformation at the connection point or cracking of the weld.
Interference and friction: If the pipes, wires, or other components near the longitudinal beam are not properly fixed, they will interfere with the longitudinal beam during acceleration or turning, causing abnormal noise.
Grounding terminal rust: If the grounding points on the longitudinal beam are rusted or loose, it will cause an increase in grounding resistance, resulting in various strange error codes in the circuit.
If only the assembly part is loose or interferes, it can be resolved by re-tightening and adjusting the position, and the cost is not high; however, if the longitudinal beam itself is deformed, it needs to be handled at a professional repair shop with a vehicle body correction instrument, and the parameters should be confirmed to be normal for four-wheel alignment.
The right front longitudinal beam rear end assembly part damage requires determining whether it belongs to a structural component or a common support part, and then deciding whether to repair or replace. The longitudinal beam itself is a key structure that bears collision energy absorption and vehicle rigidity. When the assembly part (such as the gearbox or engine bracket, crossbeam connection part) connected to the rear end is damaged, the repair plan directly affects the vehicle safety and subsequent value.
It is necessary to clarify one point: The damage to the right front longitudinal beam rear end assembly part is different from "deformation of the right front longitudinal beam itself". If only the accessories such as brackets, supports, or connection plates are damaged, replacing the accessories is sufficient; however, if the longitudinal beam itself is also deformed or cracked, it belongs to structural damage and the handling logic is completely different.
First, determine the scope of the damage
Common assembly part damage: This refers to the damage of the brackets, supports, or connection plates at the rear end of the longitudinal beam, without deformation of the longitudinal beam itself. This situation can be directly replaced with corresponding accessories, which can be sourced from original factory parts, brand parts, or dismantled vehicle parts, with low difficulty and cost.
Damage to the main beam: If the main beam is bent, wrinkled or cracked, it is considered a structural defect. The repair methods include using a beam straightening machine to stretch and reset, local patch welding or overall replacement. Regardless of the method, the repaired vehicle is usually regarded as an accident vehicle.
How to choose the repair plan
Minor deformation: Use a beam straightening machine to stretch and reset. The cost is relatively low, but after correction, there will be stress inside the main beam, and its rigidity will be inferior to the original factory level. The energy absorption capacity for secondary collisions will decrease.
Severe deformation or fracture: It is recommended to replace the main beam. Professional beam straightening machines should be used for positioning, and the welding strength should be as close as possible to the base material. The construction must be carried out by a professional auto repair shop with complete equipment.
Cutting and welding: Manufacturers usually do not recommend cutting for replacement. Cutting will damage the overall structural strength of the main beam. However, when the damage range is large, local cutting and replacement may be the only option. After welding, non-destructive testing must be performed.
Important reminder
The main beam is an energy absorption component. Metal can only absorb one impact energy. The strength after repair or replacement cannot fully reach the original factory level. The protection effect during a secondary collision will be reduced.
After repair, problems such as deviation in direction, abnormal noise, and tire wear may occur. It is recommended to perform four-wheel alignment and chassis inspection after repair.
Repair records will be entered into the vehicle maintenance file. When selling a used car, it will be regarded as an accident vehicle, affecting the valuation. Be prepared for this.
