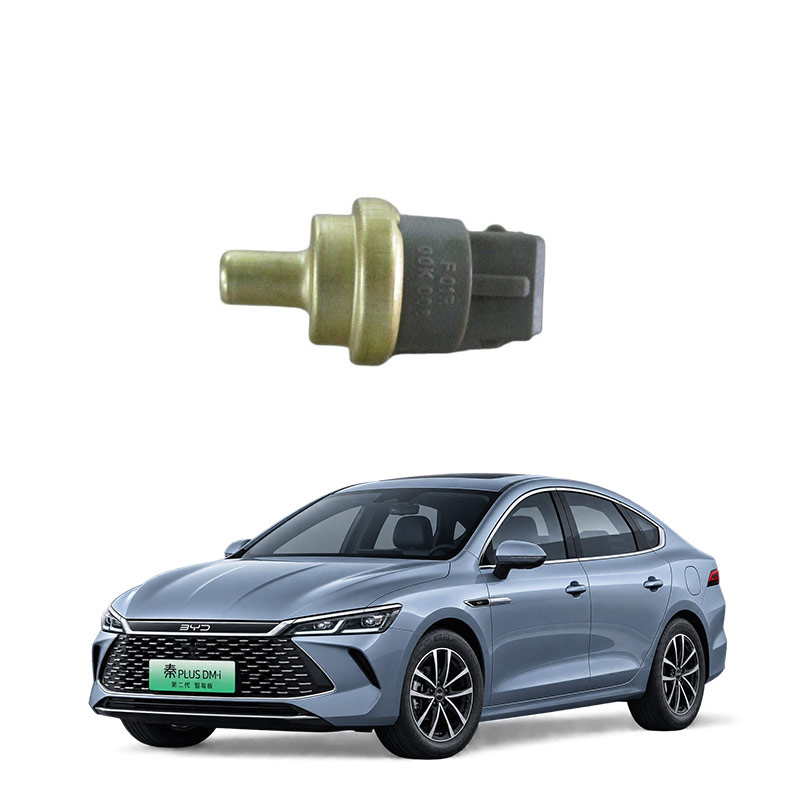

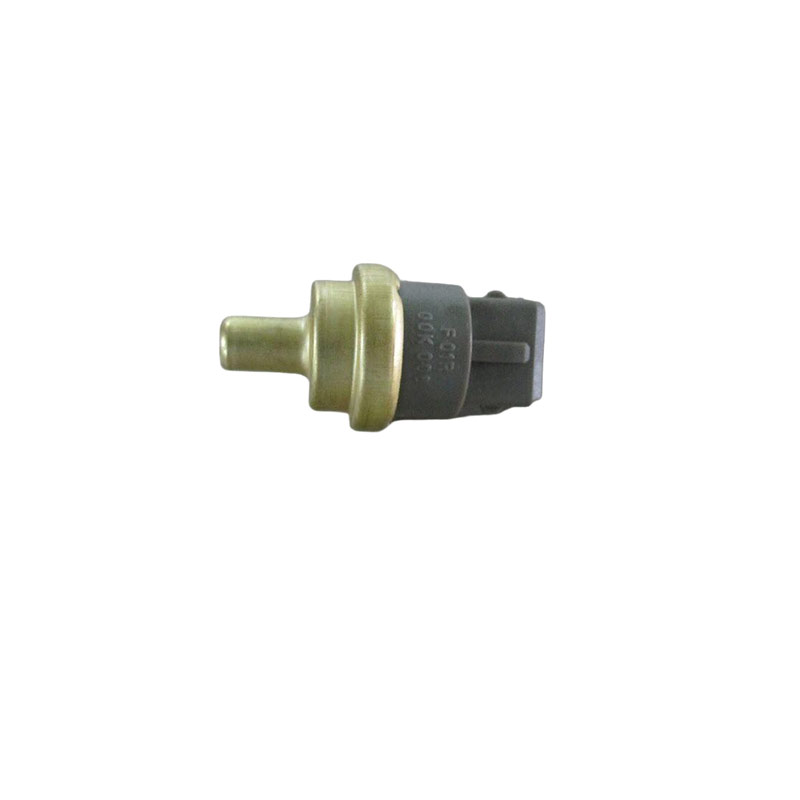

What is the vehicle coolant temperature sensor?
The coolant temperature sensor (also known as the water temperature sensor) is a core temperature-measuring component in the engine management system, used to monitor the coolant temperature in real time and convert the temperature signal into an electrical signal to be transmitted to the ECU (Engine Control Unit).
It is usually installed near the engine block water passage, cylinder head water jacket, or thermostat, in direct contact with the coolant. The core inside is a negative temperature coefficient (NTC) thermistor - the higher the temperature, the smaller the resistance; the ECU calculates the actual coolant temperature by detecting voltage changes.
After receiving this temperature signal, the ECU mainly performs the following tasks:
- Adjusting fuel injection volume: During cold starts, increase fuel injection to make the mixture more concentrated, facilitating startup; after the engine is warm, reduce fuel injection to save fuel.
- Controlling ignition timing: At low temperatures, delay ignition to protect the engine; at high temperatures, appropriately advance to enhance performance.
- Controlling the cooling fan: For example, when the water temperature reaches around 85°C, the fan runs at low speed, and when it reaches around 105°C, it runs at high speed to prevent overheating.
- Coordinating with other systems: The automatic transmission lock-up timing, the operation status of the air conditioning system, and the automatic transmission adjustment will also refer to this signal.
If the sensor fails, common symptoms include difficulty in cold starts, unstable idle, increased fuel consumption, inaccurate water temperature gauge, or erratic fan operation. It is not the same as the coolant level sensor or the temperature control switch; don't confuse them.
The coolant temperature sensor is mainly used to monitor the engine coolant temperature and transmit the signal to the ECU (Engine Control Unit), helping the vehicle run more smoothly and efficiently.
- Controlling fuel injection and ignition: During cold starts, increase fuel injection, adjust ignition timing; after the engine is warm, optimize operating parameters.
- Controlling the cooling fan: When the water temperature reaches the set value, start the fan to help cool down and prevent engine overheating.
- Displaying water temperature: Transmit the coolant temperature to the dashboard so that the driver can visually see the engine temperature status.
- Assisting other systems: The signal can also be used for idle control, EGR system, automatic transmission adjustment, etc.
If this sensor is damaged, common manifestations are difficulty in cold starts, unstable idle, increased fuel consumption, inaccurate water temperature gauge, or the fault light illuminating.
If the coolant temperature sensor (water temperature sensor) malfunctions in a car, it usually has some typical symptoms that can help you make a preliminary diagnosis. It is responsible for monitoring the engine coolant temperature and transmitting the signal to the ECU (Engine Control Unit), which then adjusts fuel injection volume, ignition timing, and the start/stop of the cooling fan based on this signal.
- Common manifestations during failure:
- Difficulty in cold starts, unstable idle: During cold starts, the sensor signal is inaccurate, and the ECU cannot accurately enrich the mixture, resulting in difficulty in starting, unstable idle, and a feeling of insufficient power when accelerating.
- Abnormal water temperature gauge indication: The pointer of the water temperature gauge on the dashboard remains still, always pointing to a low temperature, or it shakes or gives incorrect indications.
- Electronic fan malfunction: The fan may not turn (resulting in excessive water temperature) or start at high speed continuously (mistakenly judging the temperature to be too high).
- Engine fault light illuminates: The ECU detects an unreasonable sensor signal and stores a fault code (such as P0115-P0118 series), and then illuminates the fault light.
- Increased fuel consumption: Due to the incorrect temperature signal received by the ECU, the fuel injection control may be inaccurate, and the fuel consumption will increase significantly over time.
- Simple self-check思路 (for reference only， operation should be cautious)：
- Check the data stream： Use an OBD diagnostic tool to read the engine coolant temperature data. During cold starts， the displayed temperature should be close to the ambient temperature； after the engine is warm， it should steadily rise and stabilize at around 90°C.
- Measure voltage： Turn on the ignition switch (without starting the engine)， and measure the voltage of the sensor wiring harness plug. Normally， it should be around 5V.
