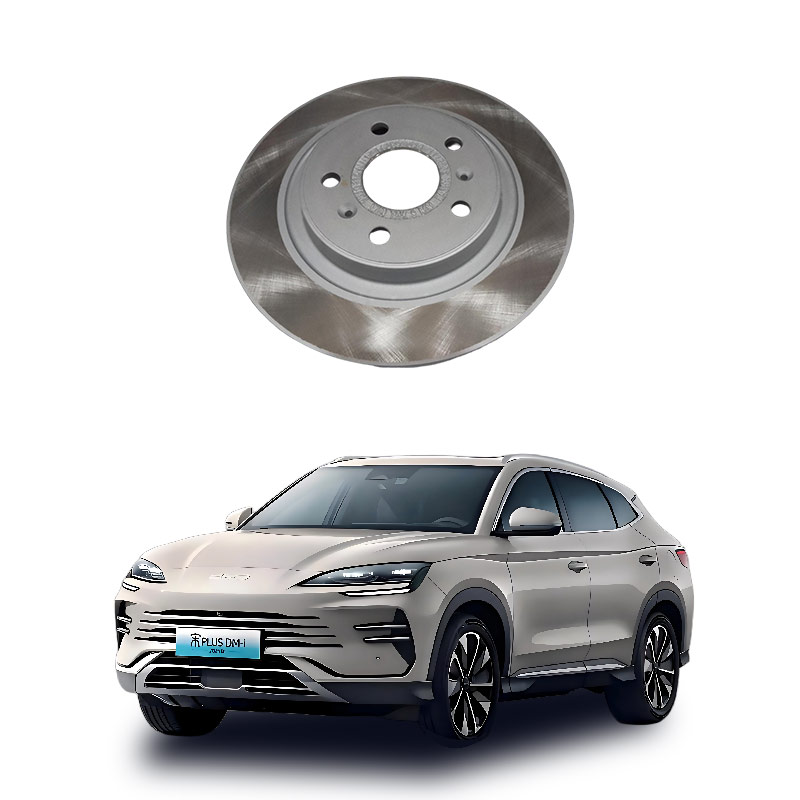

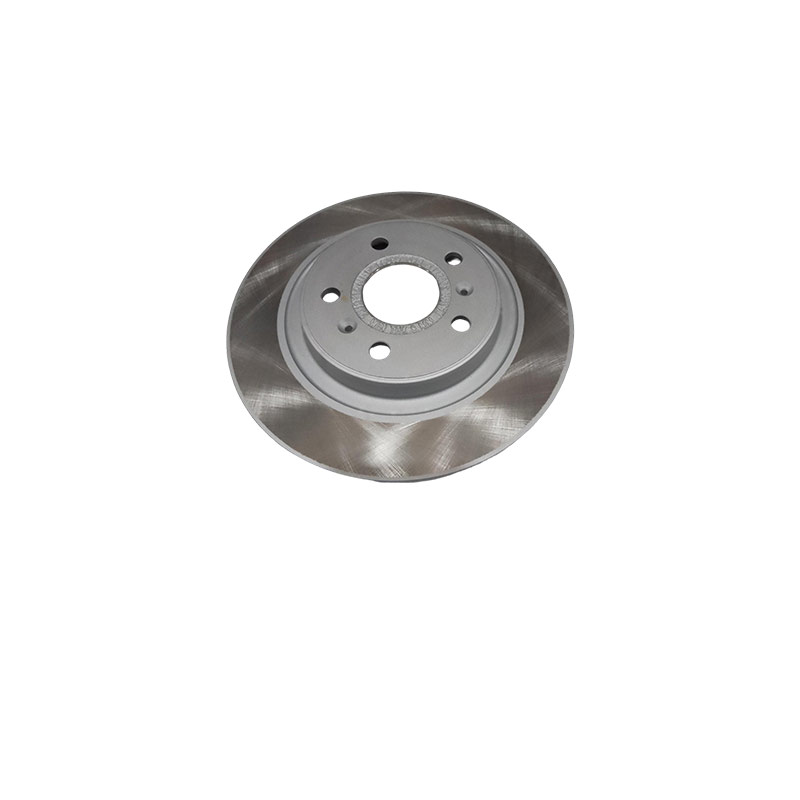

What is the rear brake disc assembly of a car?
The rear brake disc assembly refers to the disc-based braking core component installed on the rear wheels of a vehicle. It mainly consists of a brake disc (a rotating metal disc attached to the wheel) and a brake caliper assembly (including the brake booster, piston, and brake pads).
Core Components and Functions
Brake Disc: Fixed to the hub and rotating with the wheel, usually made of cast iron or alloy steel, it is responsible for bearing friction and dissipating heat; common forms include solid discs and ventilated discs.
Brake Caliper and Brake Pads: The brake caliper is fixed to the suspension system, and contains pistons and brake pads; when braking is applied, hydraulic pressure pushes the piston to make the brake pads clamp onto the brake disc, converting kinetic energy into heat energy through friction to achieve deceleration or braking.
Collaborative Components: Some assemblies also include guide pins, dust covers, and wear sensors, ensuring smooth braking action and monitoring the lifespan.
Key Characteristics
Position-specific: Specifically refers to the rear axle braking system. Some models have drum brakes on the rear wheels, in which case there is no "brake disc assembly" and the vehicle configuration must be confirmed.
Performance Impact: Its condition directly determines the braking efficiency and safety. If there are scratches, cracks, or thickness below the limit value, the entire assembly must be replaced to ensure driving safety.
Maintenance Tips: The rear brake disc assembly typically wears slower than the front wheels, but regular checks on the thickness of the brake pads and the flatness of the brake disc are necessary to avoid heat loss leading to braking failure. In short, it is a complete set of mechanical components for achieving friction braking in the rear-wheel disc braking system, rather than a single part.
The rear brake disc assembly is the core component of the braking system. Its main function is to convert the vehicle's kinetic energy into heat through friction, thereby achieving deceleration or stopping of the rear wheels. Core function
Generate braking force: When the brake pedal is depressed, the brake calipers clamp the rotating brake discs attached to the wheels. The brake pads rub against the disc surface, generating a resistance torque that directly reduces the rotational speed of the rear wheels.
Energy conversion and heat dissipation: Absorbs the huge kinetic energy generated by vehicle movement and converts it into heat. The disc structure allows for rapid heat dissipation through air circulation to prevent brake performance degradation (thermal fade) due to high temperatures.
Maintain driving stability: Provides uniform and linear braking force, combined with the front wheel braking distribution, ensuring the vehicle maintains direction stability during deceleration and avoiding skidding or veering.
Composition and characteristics
"Assembly" usually refers to the brake disc body and the supporting installation structure (in some contexts, it may include the brake pads and caliper components). The rear wheel brake discs must have high wear resistance, high-temperature resistance, and good anti-deformation ability to meet the braking requirements under long-term load. If there is excessive wear, cracks, or insufficient thickness, it will directly weaken the braking effect and threaten driving safety.
Common faults of the rear brake disc assembly of a vehicle usually manifest as "brake judder, abnormal noise, soft braking, or wheel drag", and the core reasons often involve disc surface wear and deformation, poor return of the caliper, or damage to the installation structure. To ensure safety, please prioritize checking the following key symptoms and corresponding solutions:
Common fault phenomena and causes
High-speed brake judder/steering wheel shaking: The brake disc surface is uneven or thermally deformed (thickness deviation exceeds 0.01mm), resulting in uneven friction contact.
Sharp metal friction sound: The brake pad is worn to the limit, and the backing plate directly scrapes the disc surface; or there are deep grooves (depth > 0.5mm) on the disc surface.
Wheel sinking/fuel consumption increase: The brake caliper piston does not return or the guide pin is stuck, causing the brake pad to continuously rub against the disc surface.
Brake pedal soft/long travel: Although it is often an oil circuit problem, if accompanied by severe rust on the disc surface or leakage of the master cylinder, it will also reduce braking force.
Loose bolt holes/slackening: Commonly seen after maintenance, due to improper gunning operation, the thread of the hub bolt hole is damaged, causing the assembly to be fixed unstably.
Emergency self-check and handling suggestions
Visual inspection: Observe through the hub gap if there are obvious cracks, deep grooves, or blue-purple overheating marks on the disc surface; check if the thickness of the brake pad is less than 3mm.
Tactile test: In cold engine condition, gently touch the hub (be careful of burns), if one side is obviously hot, it indicates that the brake has not returned, and the caliper guide pin or the piston seal needs to be cleaned or replaced.
Listen for location: When braking lightly, if there is a "clicking" sound, it is usually due to foreign objects or thin pads; if it is a "clunking" sound, it may indicate a local bulge on the disc surface or loose bolts.
Do not force driving: If cracks on the disc surface or slackening of the bolts are found, immediately stop the vehicle and call for a tow truck; otherwise, it may cause the wheel to fall off or the braking system to completely fail.
Maintenance decision criteria
Repairable conditions: Minor rust (a few times of braking can wear off), shallow grooves (depth < 0.3mm can be polished the disc surface), guide pin stuck (clean and lubricate).
Must be replaced conditions: Disc thickness below the manufacturer's minimum limit, cracks, grooves depth > 0.5mm, or the assembly bolt holes are slack and cannot be repaired.
Replacement precautions: The rear brake disc is often integrated with bearings (especially in some German/American vehicles), when replacing, it is necessary to check the bearing clearance simultaneously; the installation bolts must be tightened using a torque wrench according to the standard torque to avoid slackening again.
Suggested to go to a professional repair shop as soon as possible to measure the disc surface runout with a dial indicator and test the moisture content of the brake fluid to eliminate systemic hazards.
