What is the rear door handle assembly of a car?
The rear door handle assembly is a complete set of devices installed on the rear door of the car, used for opening and closing the door. It is not just the outer handle, but includes the handle, the internal pull rod, the lock block connection piece, the fixed base, the spring, and a whole series of components that work together.
In simple terms, when you pull the rear door handle from the outside, the force passes through the internal pull rod to the door lock, the lock tongue retracts, and the door opens; when you release your grip, the spring returns the handle to its original position. The structure is mainly divided into two types: traditional mechanical type and hidden type (including semi-hidden type), and the latter is very common in new energy vehicles.
There is a point related to safety here: the door handle must have a mechanical unlocking function, and it cannot rely solely on electronic signals. Otherwise, the vehicle may not be able to open the door when the power is off or in a collision, affecting escape and rescue.
Main components

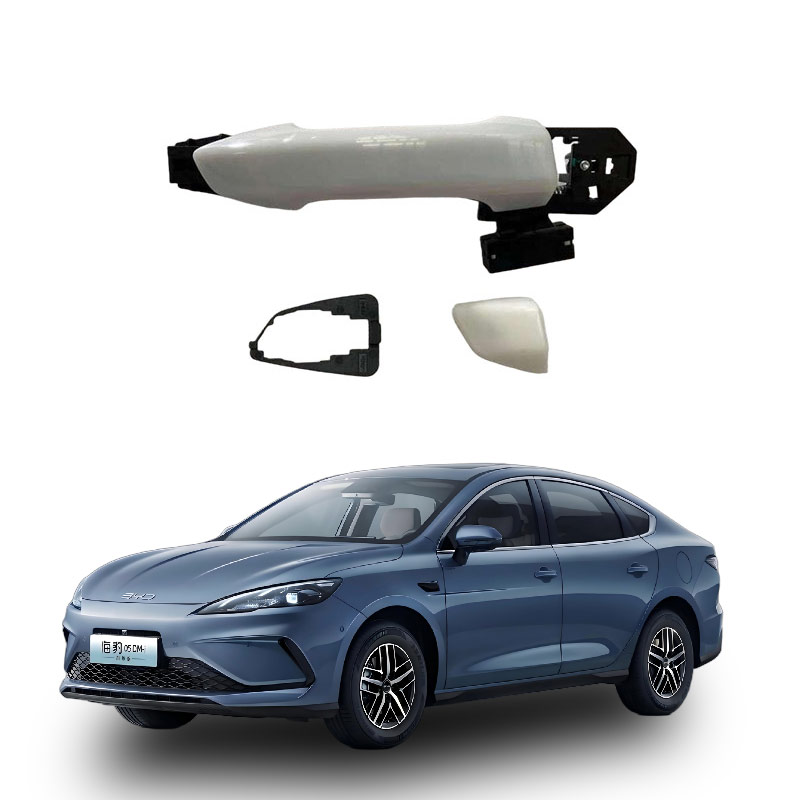

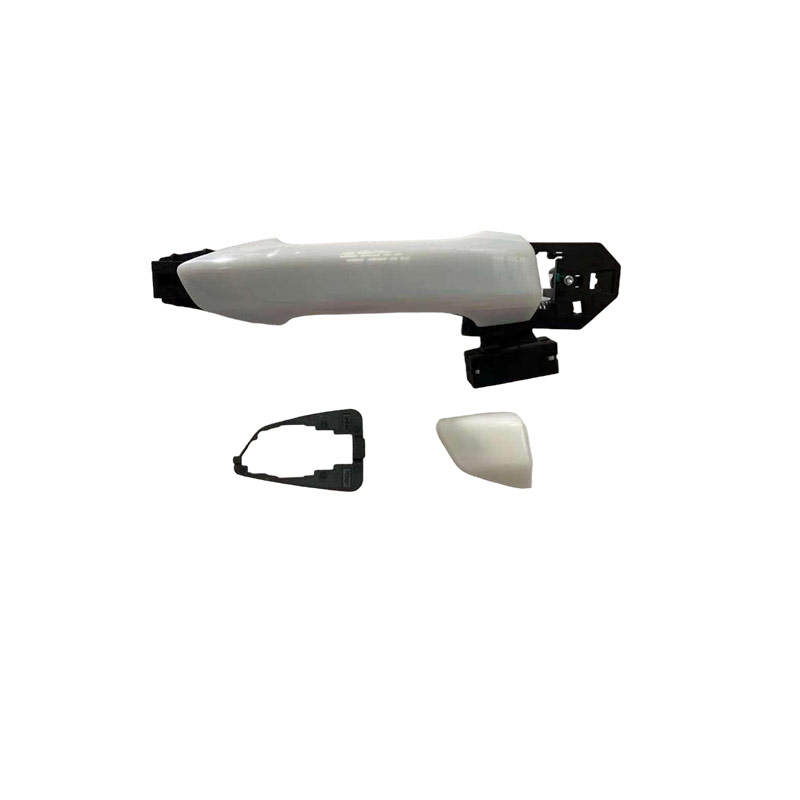

Outer handle (external handle): The part you pull to open the rear door, mostly made of engineering plastic or metal, connected to the door lock via a pull rod or pull cord.
Inner handle (internal handle): The one used to open the door from inside the car, usually embedded in the car door interior panel, and triggered when pulled.
Base and fixation structure: The installation base for the inner and outer handles, fixed to the car door sheet metal via metal clasps or screws, including parts such as springs and main shafts.
Transmission mechanism: The component that transmits the handle action to the door lock. Commonly, there are pull rods, pull cords, transmission plates, etc. Some electrically controlled hidden types also have motors, gears, and sensors.
Lock tongue and spring: The lock tongue holds the car door latch, and when you pull the handle, the lock tongue retracts, unlocking the door, and when you release your grip, the spring returns the lock tongue and the handle to their original positions.
Safety Warning
When choosing or using a car, the key point is to confirm whether the rear door handle has a mechanical unlock function. Don't just look at whether the appearance is hidden. The method of judgment is simple: if there is a mechanical unlock handle, when pulled, there will be a "two-stage force" mechanical feedback - at the beginning it is light, and in the latter half, due to the need to overcome the spring force, it becomes heavier; if it is pulled linearly without a sense of segmentation, it is basically a purely electronic unlock, and the safety is a bit lower.
In addition, the mandatory national standard "Technical Requirements for Door Handles of Automobiles" (GB 48001-2026), which will be implemented on January 1, 2027, requires that each car door must be equipped with an internal and external mechanical release handle. The purely hidden design will be eliminated.
The core function of the car rear door handle assembly is to open and close the rear door, and at the same time, it also undertakes important functions such as locking and safe escape.
Specifically, it includes several levels of functions:
- Basic function: allowing you to open or close the door from outside or inside the car,the door lock to complete unlocking and locking actions.
- Safety redundancy： in emergency situations such as power failure， collision or fire， the rear door handle (especially the mechanical handle inside the car) is a key escape channel that can open the door without relying on electricity.
- Emergency unlock： some models' door handles also have hidden mechanical keyholes. When the remote key is dead， you can insert a mechanical key to open the door.
- Auxiliary driving reference： in daily driving， you can also observe the position of the rear door handle through the rearview mirror to assist in judging the distance between the vehicle and roadside obstacles， facilitating side parking and parallel parking.
It should be noted that according to the mandatory national standard "Technical Requirements for Door Handles of Automobiles" that will be implemented on January 1， 2027， each car door (including the rear door) of new models must be equipped with an independent mechanical release device to ensure that the door can be opened manually from inside and outside even after power failure.
When the rear door handle assembly malfunctions， it usually manifests as： unable to open， unable to push out， not rebounding or falling off. The causes are mainly concentrated in mechanical jamming， pull line breakage， motor/contact damage. Don't rush to replace the assembly. Many situations can be solved with minor repairs.
First， determine which type of malfunction it is：
- Unable to open (both inside and outside)： mostly due to rusted lock block or pull line breakage. If it is unable to open after rain， it is likely due to rust of the lock block， which can be treated with rust remover； if the pull line is loose or broken， it needs to be replaced.
- Unable to push out or retract (hidden/ electric door handle)： common reasons are internal small motor damage， mechanical jamming (soil， dust， ice)， or power supply line problems.
- Unable to pull out or loosen the outer handle： mostly due to internal connecting rod detachment， spring failure or screw loosening.
- Unable to rebound (stuck after pulling out)： mostly due to too much dirt and oil on the friction surface， which causes high friction resistance. Cleaning and applying grease can solve the problem.
- Fallen off： connection components are damaged， check the internal clamps or screws， and replace the handle if necessary.
Things that can be repaired by yourself：
- Jamming， high resistance： first clean the dirt and dust in the gap of the handle， spray some rust remover or lubricant， and repeatedly pull it for ten times. Most minor jams can be directly resolved.
- Touching door handle failure (no response when pressed)： remove the door panel and take out the handle. Add a small pad on the touch switch， then shorten the button pivot， so that the button can better contact the pad， and reinstall it. Then test by repeatedly pressing and testing.
- Motor damage of electric door handle： you can remove the handle assembly and replace the internal small motor separately， without replacing the entire assembly， which usually costs less.
Important risks to note：
- Do not randomly disassemble the electric/sensor handle， especially those with sensing functions. The wiring is complex， and damaging it may harm other components. It is recommended to go to a 4S store or a professional repair shop.
Don't force the hidden handle that won't budge. It's easy to break it directly. Then you'll just have to replace it.
If it's within the warranty period and not damaged by human error, go directly to the 4S store to claim compensation and have it repaired free of charge. Don't try to do it yourself.
If the car is within the warranty period, go to the 4S store first. After the warranty expires, you can look for a reliable repair shop to replace the original or high-quality parts for a more reliable solution.
