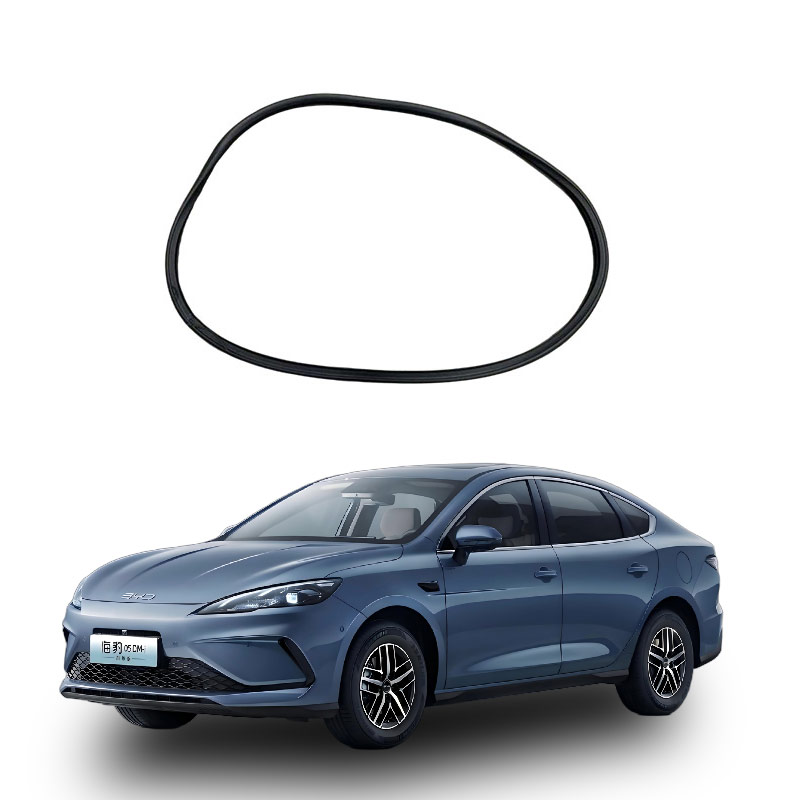

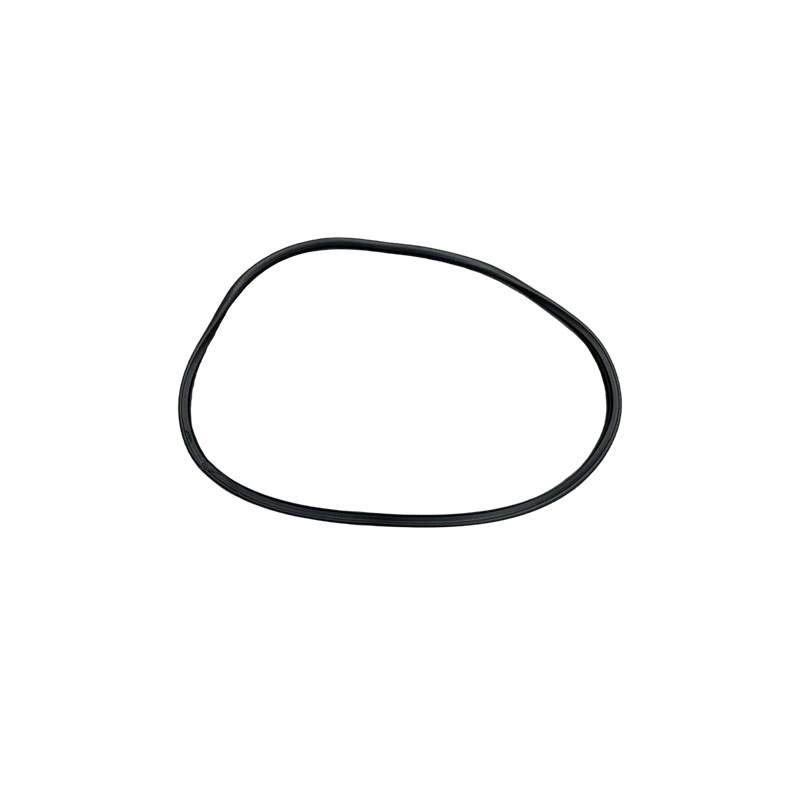

What is the sealing strip for the front door frame of a car?
The front door frame sealant, which is the rubber strip attached to the edge of the car's front door frame, is commonly referred to as "door sealant" or "frame sealant" in the industry. It mainly relies on its elasticity to fill the gaps between the door and the frame, achieving functions such as waterproofing, dustproofing, noise reduction, and vibration damping. It is a key component that ensures the quietness and sealing of the interior.
It is usually not a single rubber strip but is composed of "frame side rubber strip" and "door side rubber strip" that are paired together. When closing the door, they "bite" each other to form a sealing layer. In terms of material, modern models generally use EPDM (Ethylene Propylene Diene Monomer) or TPE (Thermoplastic Elastomer), and some have metal frameworks embedded inside to enhance the fixation effect.
Common Materials and Structures
Main Material: EPDM is the main material, resistant to aging and ozone, with an applicable temperature range of approximately -40°C to 80°C; TPE is also a mainstream choice.
Composite Structure: Usually composed of sponge tube and dense matrix, some may have steel belts or steel wire frameworks, and the surface may be treated with flocking to reduce friction noise.
Purchase and Replacement Tips
If you find air leakage, water seepage, increased wind noise, or a brittle closing sound, it is likely that the sealant has aged or been damaged. When replacing it, it is recommended to:
Choose the original factory or brand sealant that matches the vehicle model, and ask the dealer to provide the corresponding size based on the vehicle year.
Before installation, thoroughly clean the door frame and remove any residual glue marks; use a plastic pry bar to assist in disassembly to avoid scratching the car paint.
Precisely stick along the contour of the door gap, especially paying attention to the smoothness of the corners when attaching. After installation, check if the drainage holes are blocked.
For new cars with original factory seals, it is not recommended to add additional sealants. It may block the drainage holes, causing rust and damaging the original vehicle sealing balance, resulting in abnormal noises, and the actual noise reduction effect is only 1-2 decibels.
The front door frame sealant of a car mainly serves the functions of sealing, waterproofing, dustproofing, and noise reduction. It also assists in vibration reduction and improves the closing feel.
Specifically, it has these core functions:
Noise Reduction and Soundproofing: As an acoustic barrier, it can effectively isolate wind noise and road noise during high-speed driving, improving the interior quietness. However, some data indicate that its noise reduction effect is limited. The overall noise reduction of the vehicle depends on the handling of tire noise, engine noise, etc.
Waterproof and Dustproof: The sealant can fill the gaps between the door and the frame, preventing water from seeping into the car and also blocking dust from entering the frame and grooves. If the sealant ages and is not promptly treated, moisture will enter and be difficult to dry, potentially rusting the car's sheet metal.
Vibration Reduction and Closing Feel: The sealant has elasticity and can buffer the impact force during door closing, making the closing sound more muffled and solid, enhancing the overall quality.
Compensation for Tolerance and Deformation: It can adapt to manufacturing errors of the door and temperature changes, ensuring long-term sealing effect.
Modern sealants mostly use EPDM (Ethylene Propylene Diene Monomer) or TPE (Thermoplastic Elastomer), and some have metal frameworks or fiber fabrics embedded inside to enhance performance.
You can pay attention to whether the sealant is aging, cracking, or deforming. Once the sealing effect declines, replace it in time to avoid subsequent water leakage and rusting problems.
For mild aging (slight hardening, small cracks, surface dirtiness): No need to dismantle and replace; cleaning and maintenance can alleviate a lot.
First, clean: Use interior cleaner and soft bristle brush to brush away dirt, oil, and sand from the sealant gap, then dry with a dry towel. Many "air leakage" problems are actually caused by dirt blocking the rubber micro-holes.
Then, maintain: Spray a layer of rubber sealant-specific maintenance agent or silicon-based maintenance agent to restore some elasticity. Do this once a quarter, especially at the corner of the door frame.
Local minor cracks: Clean the surrounding area of the crack with alcohol cotton pads, apply a soft rubber repair agent and scrape it flat. Once it has cured, it can be used again.
Moderate aging (visible cracks, local collapse, high-speed air leakage): repair is possible， which offers the best cost-effectiveness.
When the local part of the sealing strip is flattened and collapsed， leaving fine gaps， purchase a roll of small D-shaped sealant strips with backing adhesive. Align the leak position and stick it in the groove of the old strip. Make a small V-shaped cut at the corner to prevent warping， and the gap can be sealed.
For A-pillar and B-pillar edges with air leakage， use the Z-shaped sealant strip to stick along the inner side of the door gap. It is specifically designed to seal the cavities that the original factory does not cover. This can be done for just a few dollars.
Severe aging (large-scale cracking and hardening， multiple fractures， obvious water leakage)： Replacement is necessary. Do not try to patch it with glue.
It is recommended to choose the original factory parts first. Although aftermarket parts are cheaper， they are prone to size deviations， affecting the sealing effect.
If you replace it yourself， use a hair dryer to heat the old sealant strip， and slowly peel it off with a plastic pry bar. Be careful not to scratch the car paint. Before installing the new strip， preheat it and insert it from the door hinge， leaving about 5 millimeters of excess space to accommodate thermal expansion and contraction.
After replacement， a water leakage test must be conducted to confirm that there is no more water leakage before it is considered qualified.
Don't delay dealing with sealant failures. Water seeping in and remaining inside the door frame for a long time can cause rusting of the vehicle's body panel and affect the structural strength of the door.
